TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E46548000
- Product Family
- MAK
Other properties
- No. of cavities
- 8
- Terminal Type
- Receptacle
- Terminal Size [mm]
- 1.2
- Sealable
- Unsealed
- Color
- BLACK
- Mechanical coding
- A

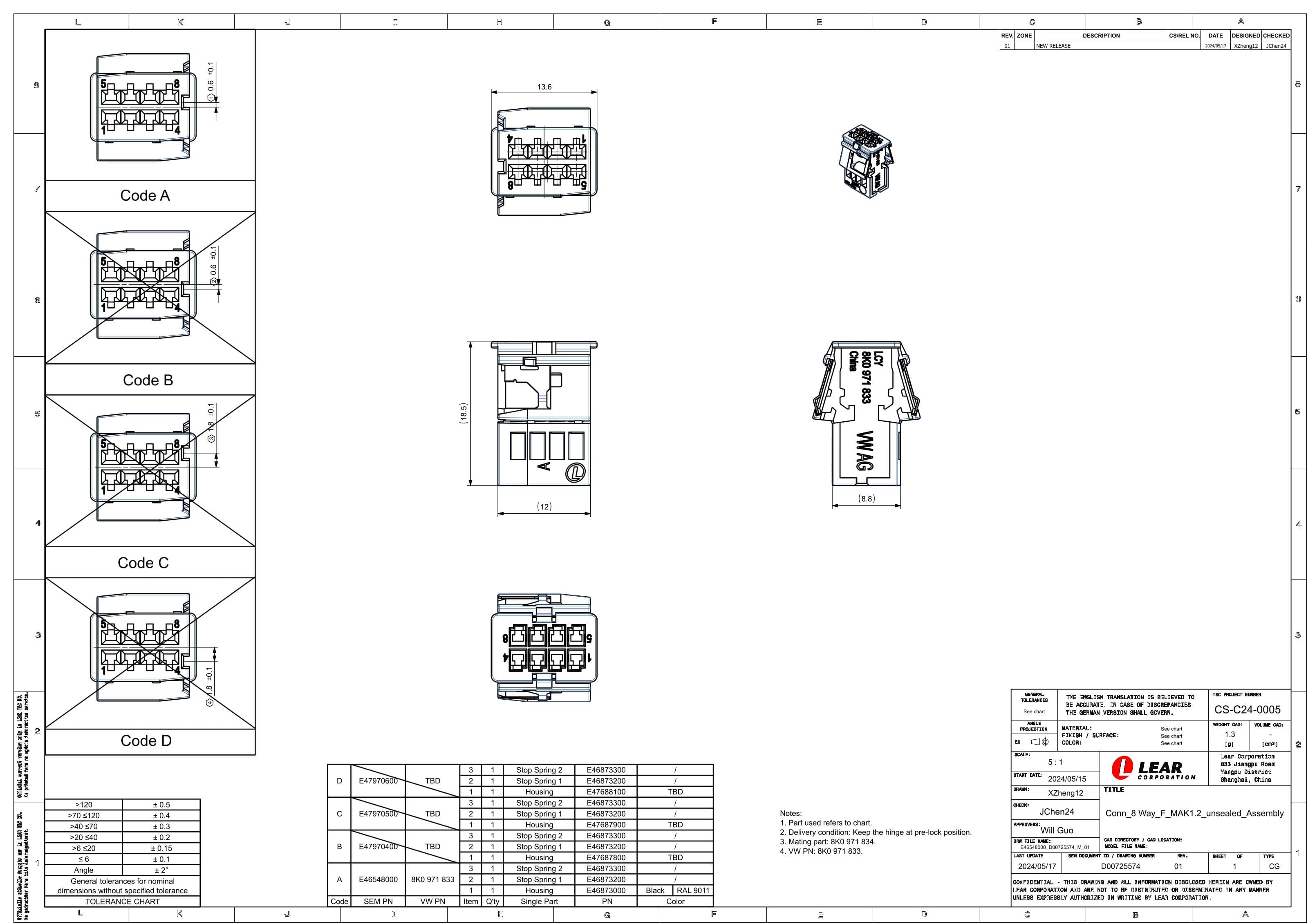

2D Drawing
2D Drawing E46548000
MAK 1.2 Receptacle Unsealed Crimp Terminal, Sn, 0.35mm²
E35504900
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
MAK 1.2 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E35505100
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
E46548000 - 8way MAK 1.2 Receptacle Unsealed Black Connector, Code A
Part Number: E46548000
Product Specification
This connector belongs to the MAK product family within the Connectors category, configured as an 8-way receptacle with a terminal size of 1.2 mm. The connector is unsealed.
Mechanical coding A provides a poka-yoke mating feature to prevent incorrect connector pairing during assembly.
The main connector part is molded in PBT GF with a dominant black color.
Part Number: E46548000.
This product requires other components for a fully functional assembly configuration:
