TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E35505100
Product Family
MAK

Other properties

Terminal Size [mm]
1.2
Application
Signal
Core Material
CuSn
Plating Material
Sn
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
Min Temp (C)
-40
Max Temp (C)
+130

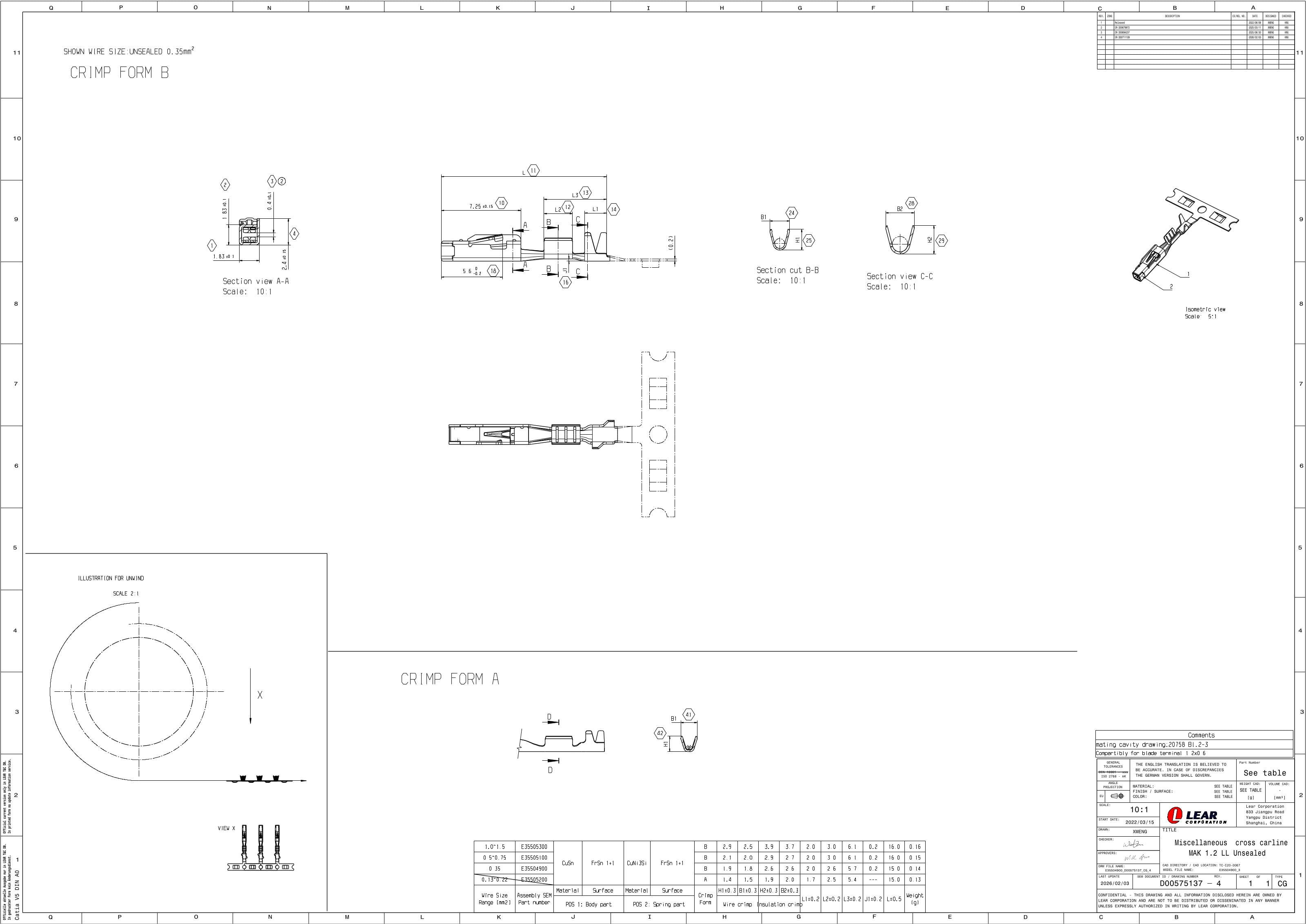

2D Drawing

2D Drawing E35505100

DOWNLOAD
MAK 1.2 Receptacle Unsealed Crimp Terminal, Sn, 0.35mm²
MAK 1.2 Receptacle Unsealed Crimp Terminal, Sn, 0.35mm²
E35504900
Product Category:
TERMINALS
Legacy Part Number:
–
Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
8way MAK 1.2 Receptacle Unsealed Black Connector, Code A
8way MAK 1.2 Receptacle Unsealed Black Connector, Code A
E46548000
Product Category:
CONNECTORS
Legacy Part Number:
–
No. of cavities
8
Product Family
MAK
Terminal Size [mm]
1.2
Sealable
Unsealed

E35505100 - MAK 1.2 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²

Part Number: E35505100

MAK 1.2 Receptacle Unsealed Crimp Terminal, Sn, 0.5-0.75mm²

Product Specification

An unsealed receptacle terminal belonging to the MAK product family, sized at 1.2 mm. It falls within the terminals product category.

Rated for operation across a temperature range of −40 to +130 °C.

Part Number: E35505100.

This product requires other components for a fully functional assembly configuration:
