TECHNICAL INFORMATION
Identification
- Product Category
- CONNECTORS
- Part Number
- E02585200
- Legacy Part Number
- 13823000001
- Product Family
- AFK
Other properties
- No. of cavities
- 4
- Terminal Type
- Receptacle
- Sealable
- Unsealed
- Color
- BLACK
- Remarks
- Restricted product. Please contact us if you need any information about this part.
RELATED PARTS
AFK 1.5 TERMINAL
Part Number: 3202531A5
Product Category: TERMINALS
Legacy Part Number: 26591331185
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFK 1.5 TERMINAL
Part Number: 3202564Y0
Product Category: TERMINALS
Legacy Part Number: 26592201702
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFK 1.5 TERMINAL
Part Number: 3202650K8
Product Category: TERMINALS
Legacy Part Number: 26592331185
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
Loading...
RESTRICTED PRODUCT
Part Number: E02585200

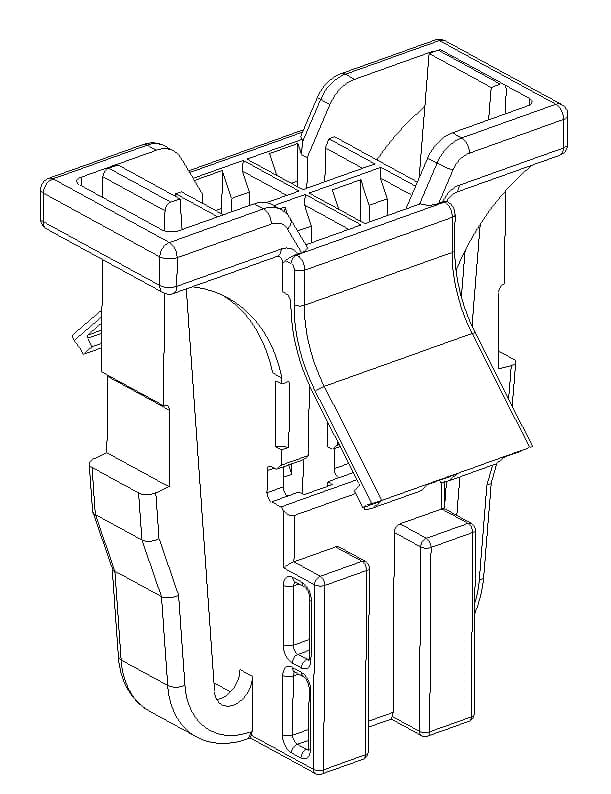

Click to see 3D model
Product Specification
Lear's AFK Connector System offers a high-performance, light-weight, cost-effective system connection solution.
The connectors come with universal secondary locking, high contact security, high current carrying capacity.
