TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 3202564Y0
- Legacy Part Number
- 26592201702
- Product Family
- AFK
Other properties
- Terminal Size [mm]
- 1.5
- Core Material
- CuSn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.5
- Maximum Cable Cross section [mm²]
- 1
DOWNLOADS
Loading...

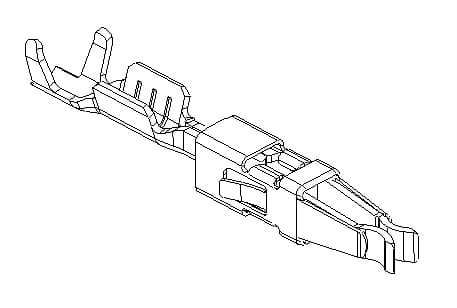

AFK 1.5 TERMINAL
Part Number: 3202564Y0
Click to see 3D model
Product Specification
Lear's AFK Terminal Series covers the range of 1.5 mm; 2.8 mm; 4.8 - 6.3 mm blades. Its high performance copper alloy body provides an excellent electrical performance, while the stainless steel spring guarantees superior contact reliability. Two locking latches ensure secure locking in cavity.
lts compact design, low mating efforts and good terminal retention is ideal for high density connectors.
