TECHNICAL INFORMATION

Identification

Product Category
CONNECTORS
Part Number
E51716000
Product Family
AFS

Other properties

No. of cavities
2
Terminal Type
Tab
Terminal Size [mm]
1.5
Sealable
Unsealed
Color
BLACK

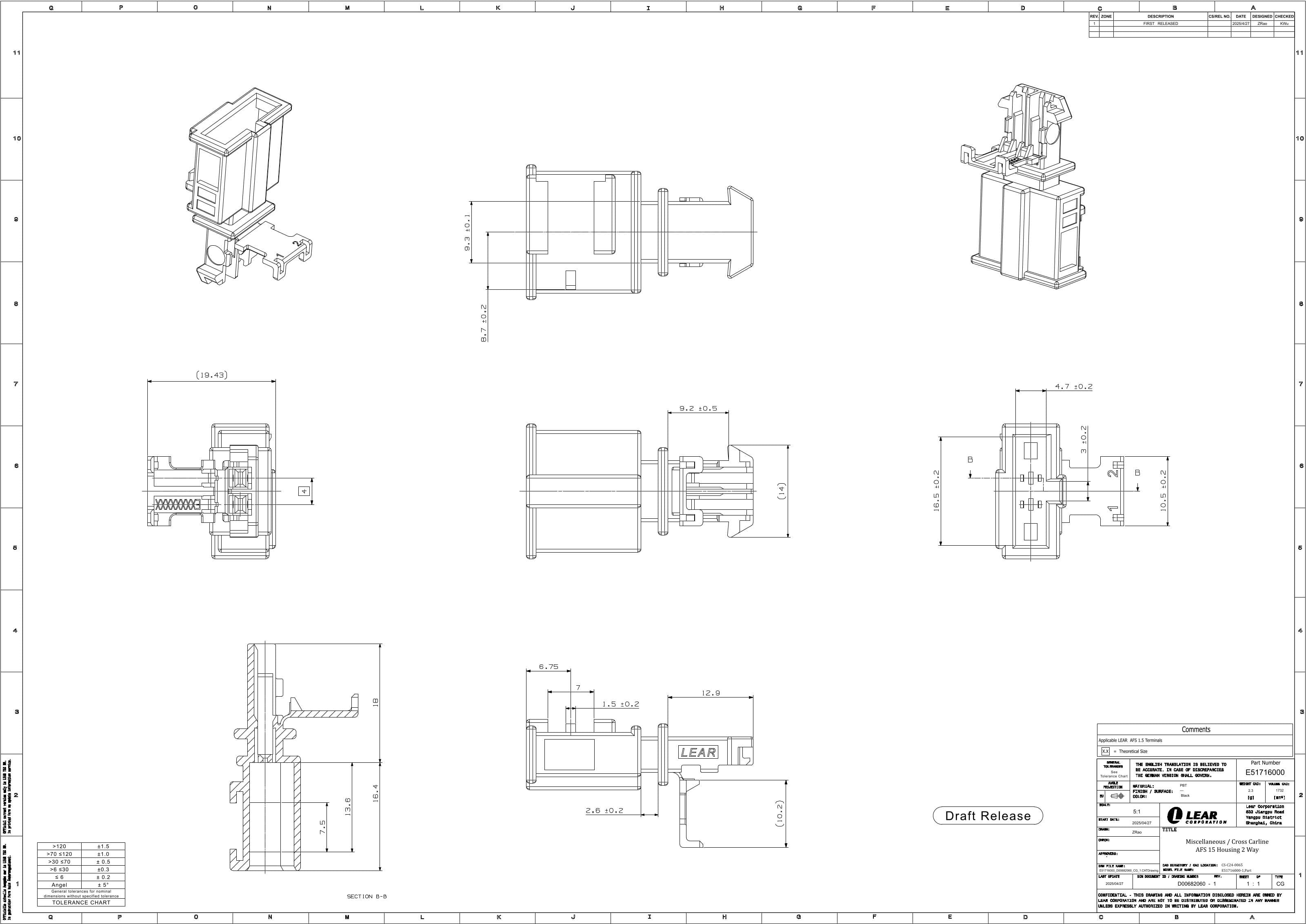

2D Drawing

2D Drawing E51716000

DOWNLOAD
AFS 1.5 Tab Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
AFS 1.5 Tab Unsealed Crimp Terminal, Sn, 0.2-0.35mm²
E26349500
Product Category:
TERMINALS
Legacy Part Number:
26589000001
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFS 1.5 Tab Unsealed Crimp Terminal, Sn, 0.5-1mm²
AFS 1.5 Tab Unsealed Crimp Terminal, Sn, 0.5-1mm²
320250A94
Product Category:
TERMINALS
Legacy Part Number:
26590330185
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1

E51716000 - 2way AFS 1.5 Tab Unsealed Black Connector

Part Number: E51716000

2way AFS 1.5 Tab Unsealed Black Connector

Product Specification

This is a 2-cavity unsealed connector belonging to the AFS product family within the Connectors category. It accepts Tab terminals sized at 1.5 mm.

The main connector part is molded in PBT with a dominant black color.

Part Number: E51716000.

This product requires other components for a fully functional assembly configuration:
