TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 3202501P8
- Product Family
- YF200
Other properties
- Terminal Size [mm]
- 6.3
- Core Material
- Cu
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 2
- Maximum Cable Cross section [mm²]
- 3
- RoHS
- YES
DOWNLOADS
3D Cad
3D Cad 3202501P8
Loading...

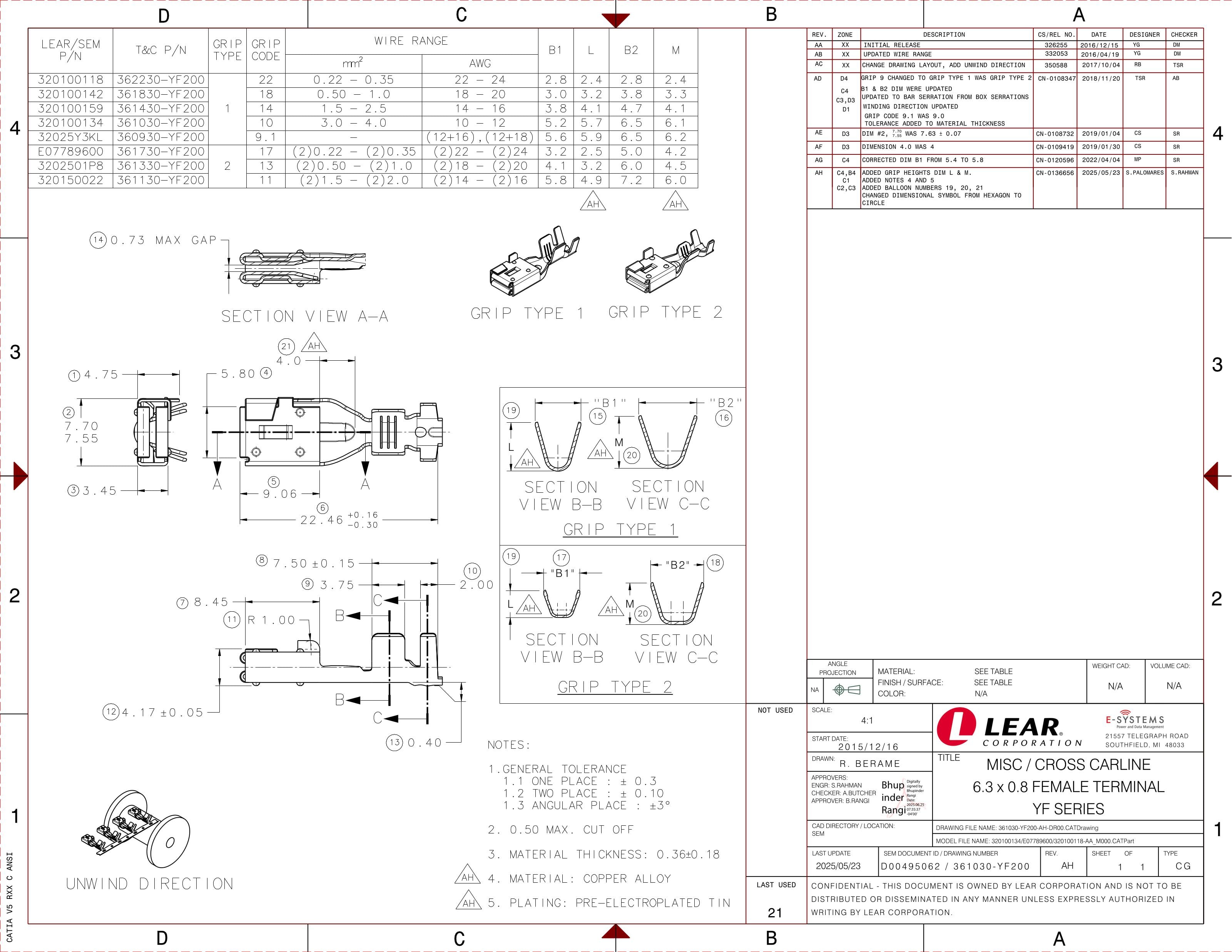

3202501P8 - YF200 6.3 TERMINAL
Part Number: 3202501P8
Click to see 3D model
Product Specification
Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
Part Number: 3202501P8.
