TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
3202606K3
Legacy Part Number
12698123011

Other properties

Terminal Size [mm]
6.3
Core Material
CuZn
Plating Material
Sn
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Tab
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
6
Min Temp (C)
-40
Max Temp (C)
+125

DOWNLOADS

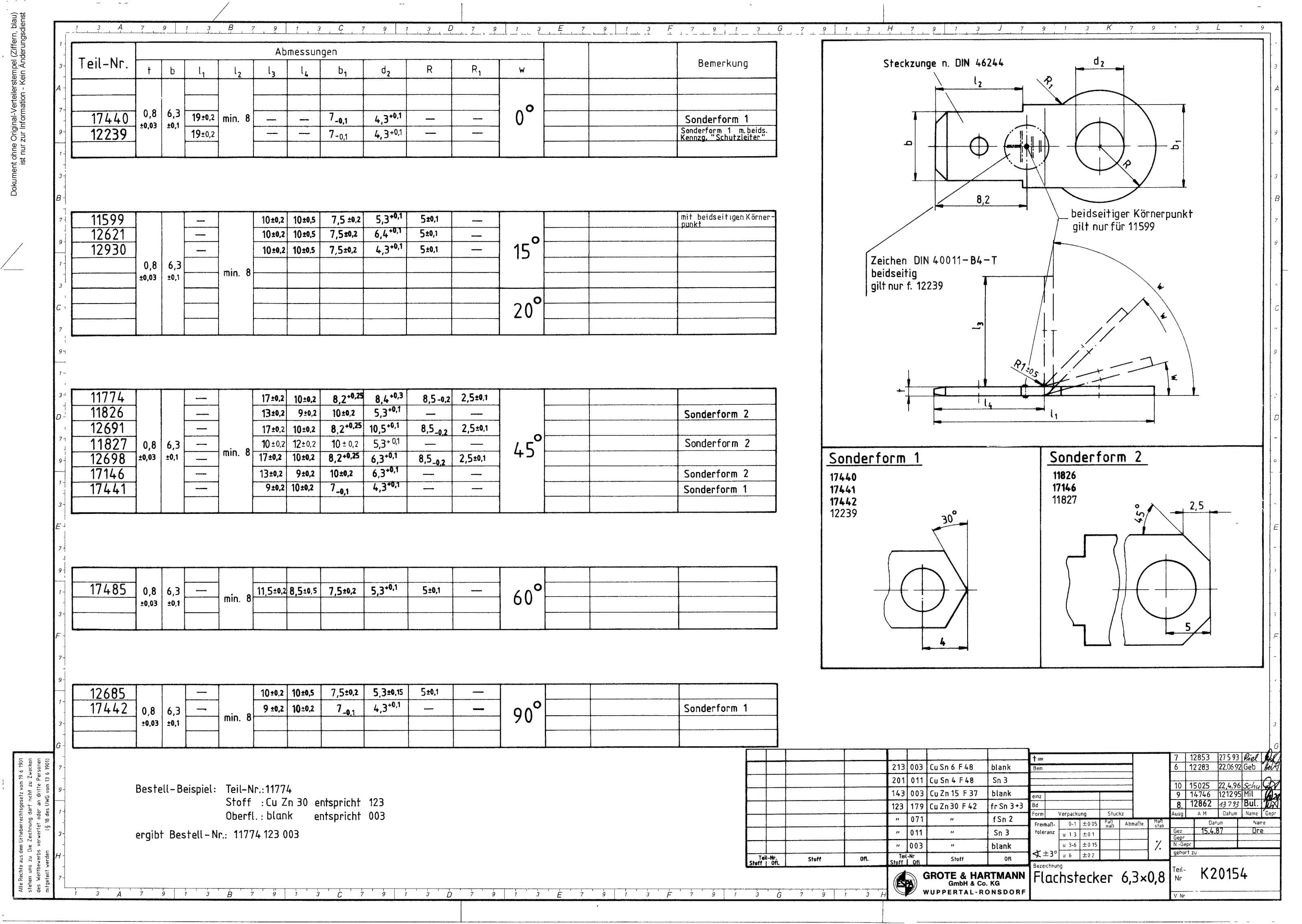

2D Drawing

2D Drawing 3202606K3

DOWNLOAD

3D PDF

3D PDF 3202606K3

DOWNLOAD

3D Cad

3D Cad 3202606K3

DOWNLOAD

Loading...

TAB 6.3 TERMINAL

Part Number: 3202606K3

Click to see 3D model

TAB 6.3 TERMINAL

Product Specification

Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
