TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
320272008
Legacy Part Number
26260331178
Product Family
AFS

Other properties

Terminal Size [mm]
4.8
Core Material
CuFe
Plating Material
Sn
Sealable
Sealed
Connection Technology
Standard Crimp
Terminal Type
Tab
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5

DOWNLOADS

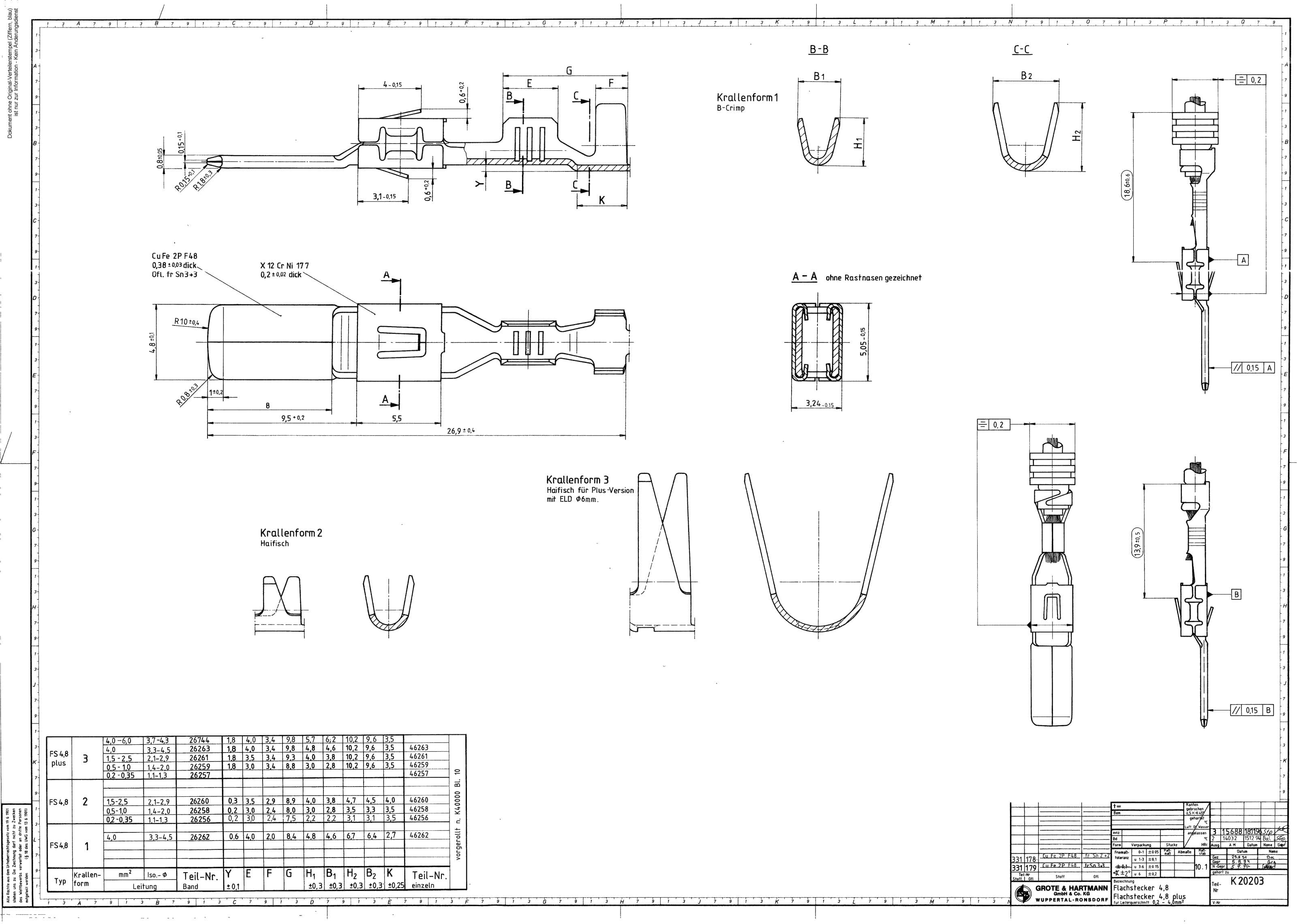

2D Drawing

2D Drawing 320272008

DOWNLOAD

3D PDF

3D PDF 320272008

DOWNLOAD

3D Cad

3D Cad 320272008

DOWNLOAD

Loading...

TAB 4.8 PLUS TERMINAL

Part Number: 320272008

Click to see 3D model

TAB 4.8 PLUS TERMINAL

Product Specification

Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
