TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
3202612W6
Legacy Part Number
26166201178

Other properties

Terminal Size [mm]
2.8
Core Material
CuSn
Plating Material
Sn
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Tab
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5

DOWNLOADS

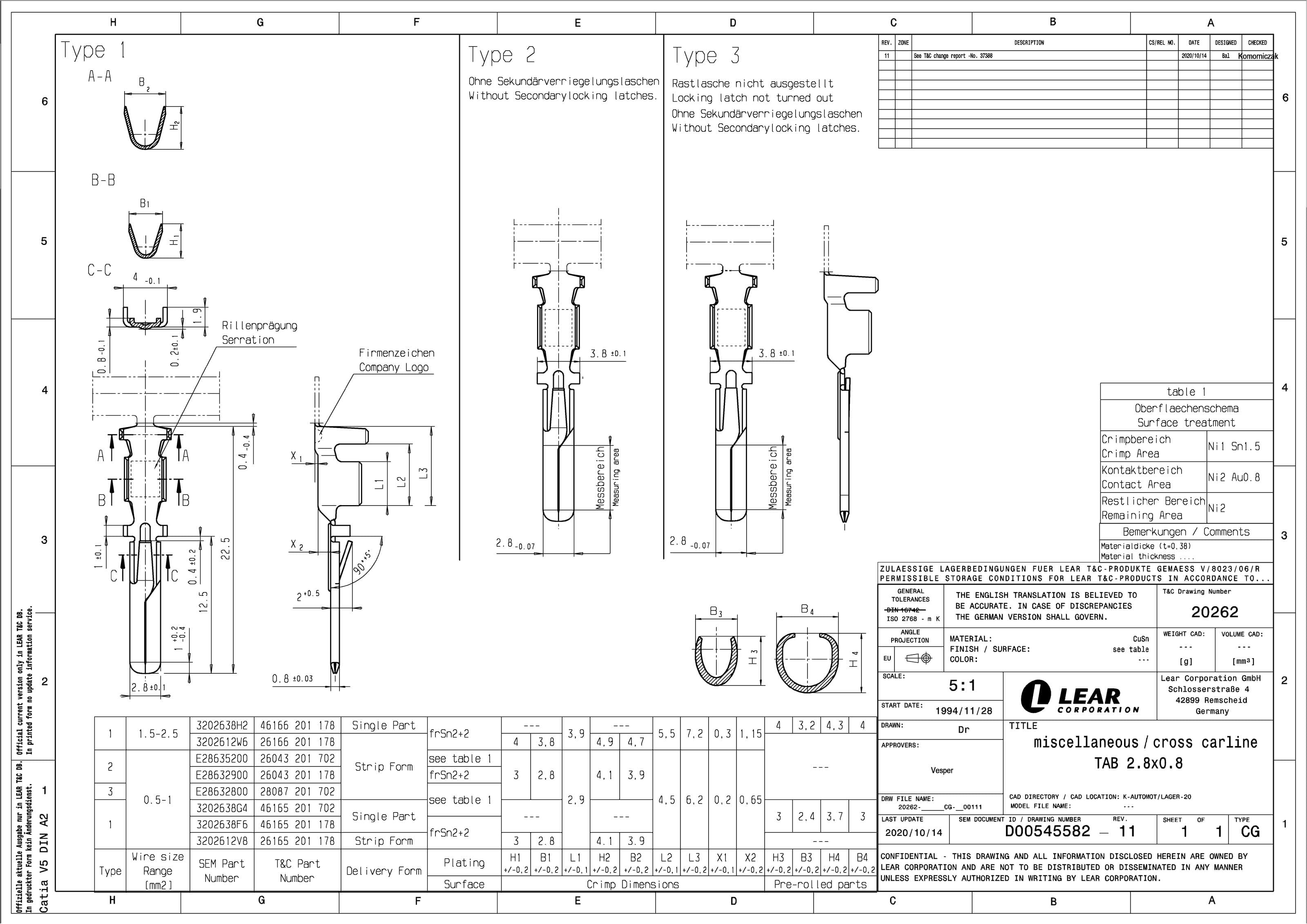

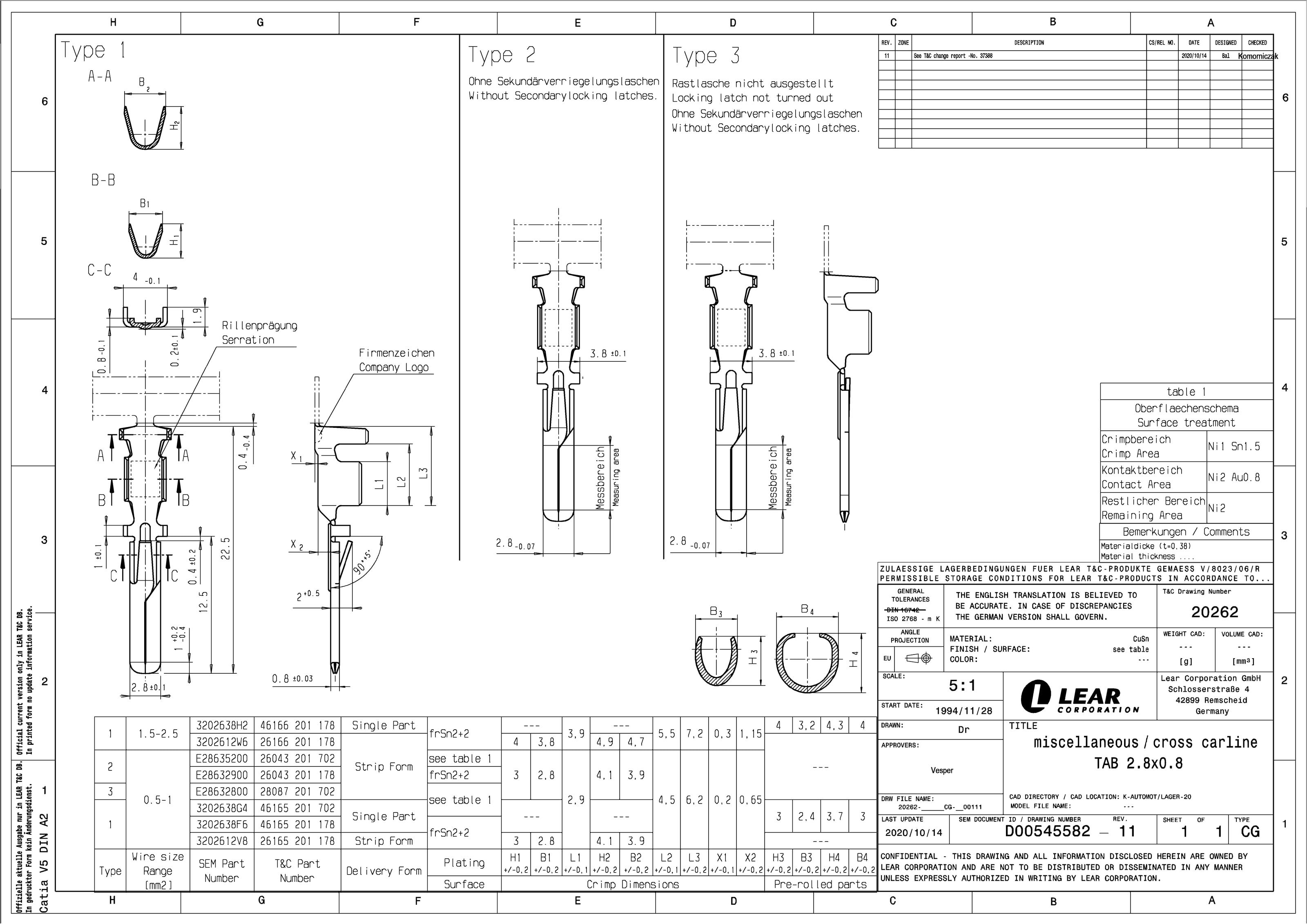

2D Drawing

2D Drawing 3202612W6

DOWNLOAD

3D PDF

3D PDF 3202612W6

DOWNLOAD

3D Cad

3D Cad 3202612W6

DOWNLOAD

Loading...

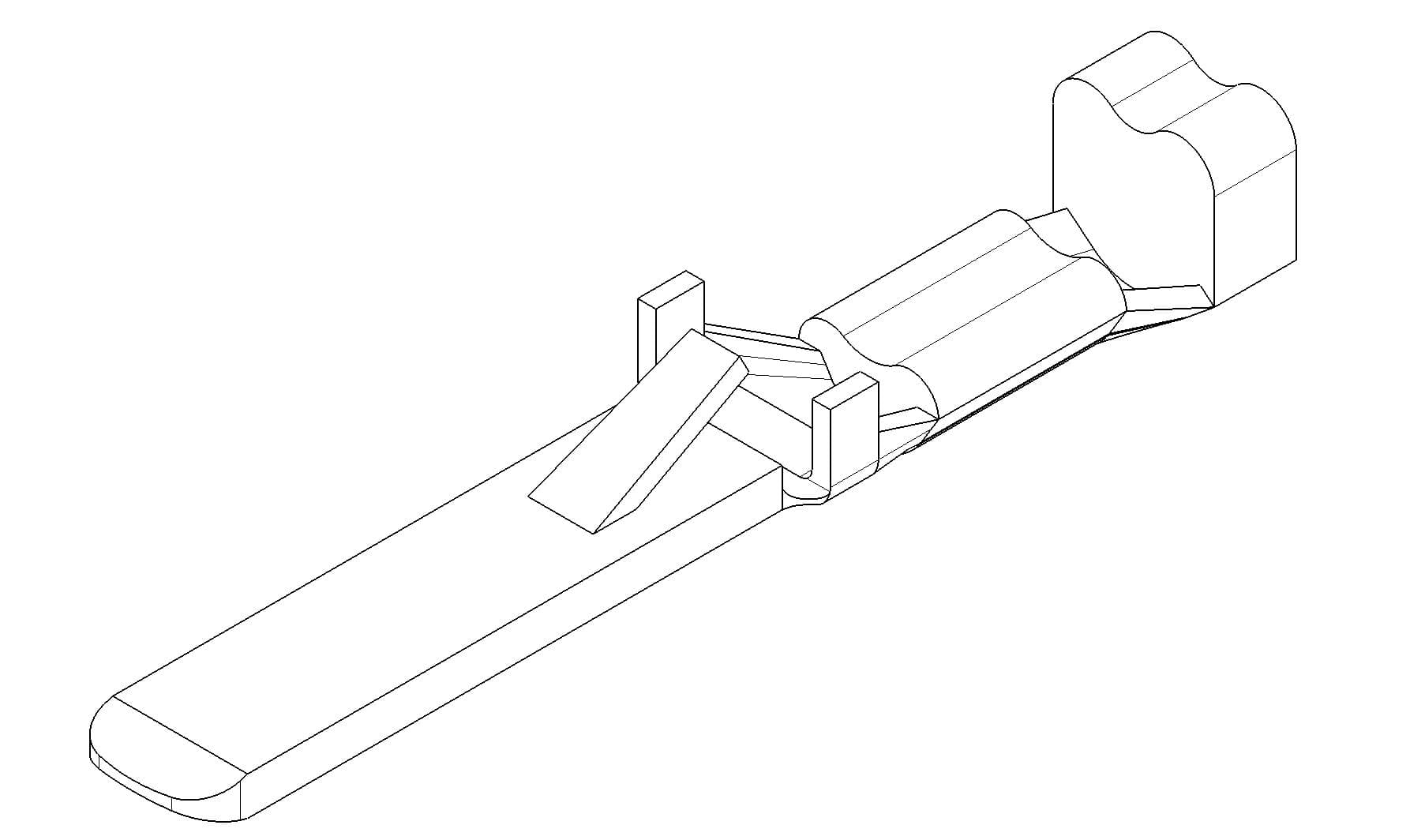

TAB 2.8 TERMINAL

Part Number: 3202612W6

Click to see 3D model

TAB 2.8 TERMINAL

Product Specification

Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
