TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E00362100
- Product Family
- ROUND
Other properties
- Terminal Size [mm]
- 2.8
- Core Material
- Cu
- Plating Material
- Ag
- Sealable
- Unsealed
- Connection Technology
- Tube Crimp
- Terminal Type
- Socket
- Minimum Cable Cross section [mm²]
- 1.5
- Maximum Cable Cross section [mm²]
- 1.5

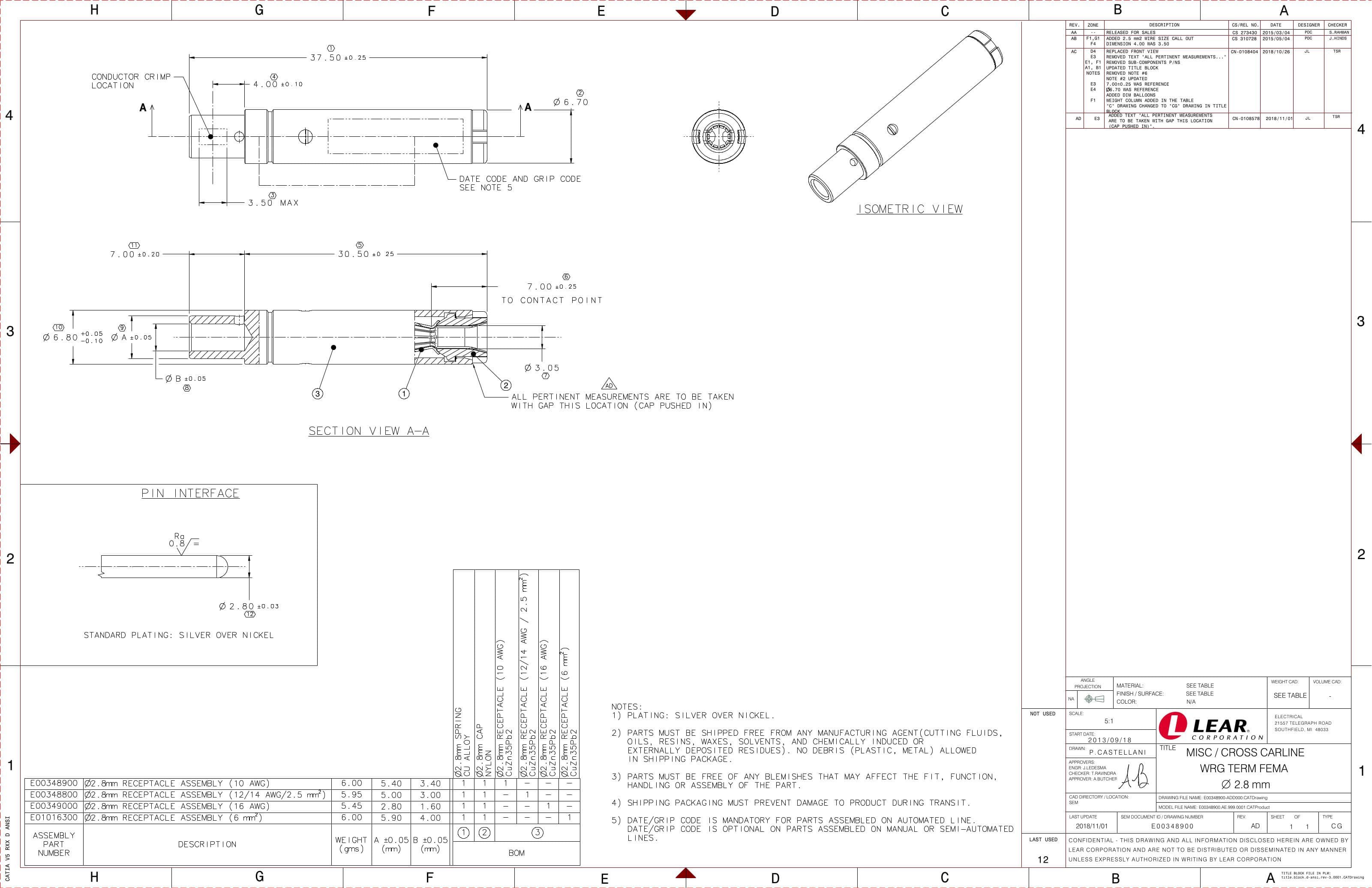

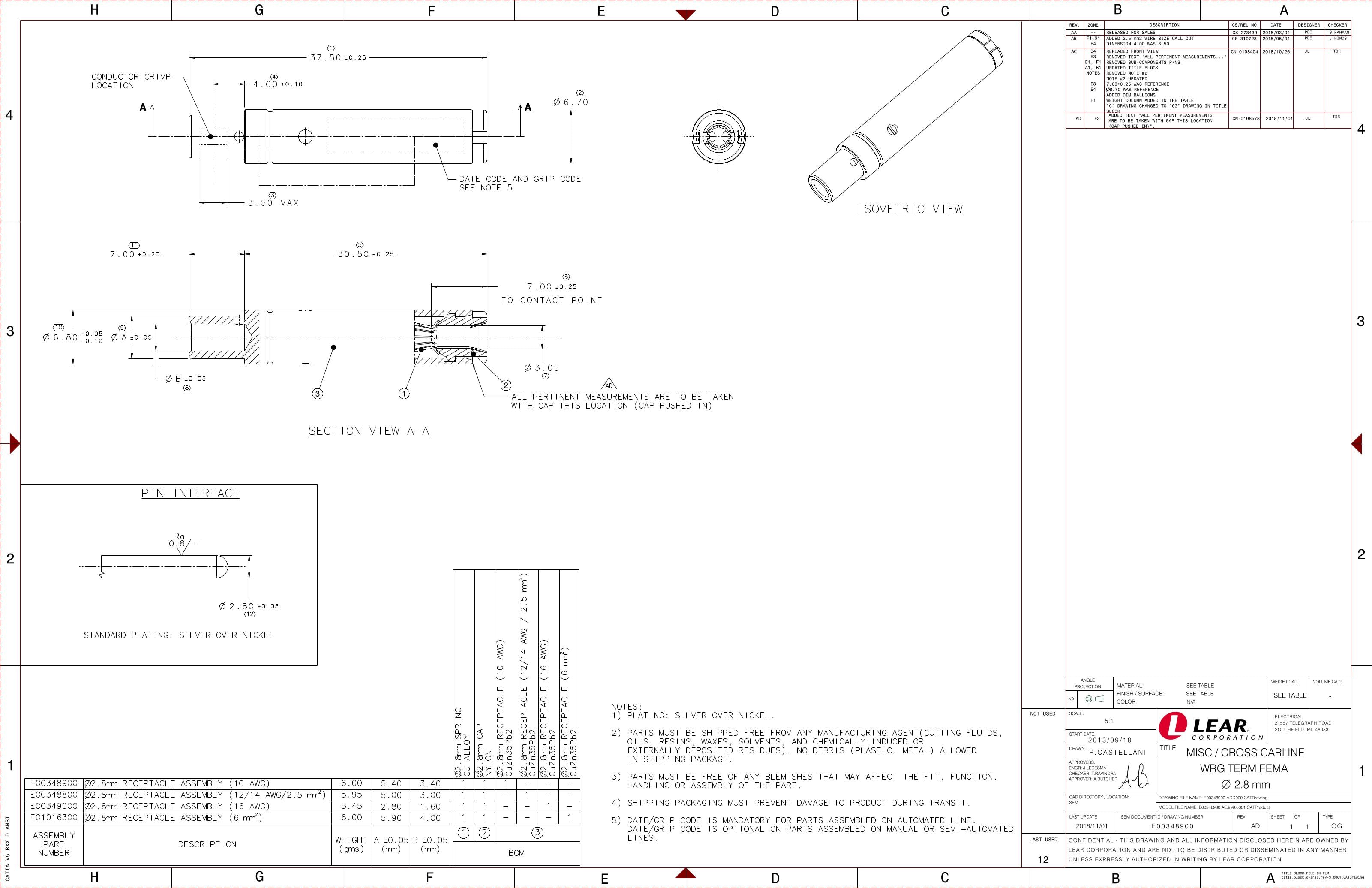

2D Drawing
2D Drawing E00362100
E00362100 - 2.8 Socket Unsealed Tube Terminal, Ag, 1.5mm²
Part Number: E00362100
Product Specification
Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
Part Number: E00362100.
