TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 3202577W9
- Legacy Part Number
- 26818213178
- Product Family
- SIKO
Other properties
- Terminal Size [mm]
- 6.3
- Core Material
- CuSn
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 1.5
- Maximum Cable Cross section [mm²]
- 2.5
DOWNLOADS
SIMILAR PARTS
SIKO 6.3 TERMINAL
Part Number: 3202557S2
Product Category: TERMINALS
Legacy Part Number: 26817213178
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
SIKO 6.3 TERMINAL
Part Number: 32025Y37Z
Product Category: TERMINALS
Legacy Part Number: 26771123178
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
2.5
Maximum Cable Cross section [mm²]
4
SIKO 6.3 TERMINAL
Part Number: E00029964
Product Category: TERMINALS
Legacy Part Number: 26818123178
Terminal Size [mm]
6.3
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
Loading...

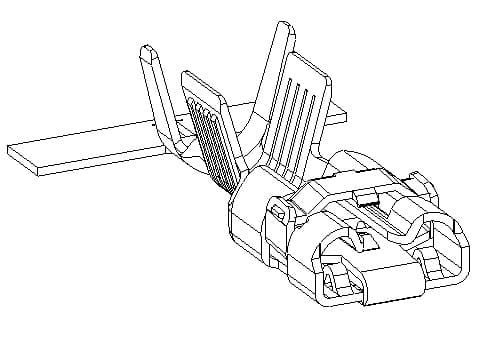

SIKO 6.3 TERMINAL
Part Number: 3202577W9
Click to see 3D model
Product Specification
The flat connector systems SIKO 1 and SIKO 2 combines the properties of a permanent connection with the advantage of a releasable one.
They are used where most connections do not offer the operating safety required e.g. because of vibration or tension on the wire. The secure contact systems solution for tab width of 4.8 mm and 6.3 mm.
