TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 32025Y1VF
- Legacy Part Number
- 46818213178
- Product Family
- SIKO
Other properties
- Terminal Size [mm]
- 6.3
- Core Material
- CuSn
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 1.5
- Maximum Cable Cross section [mm²]
- 2.5

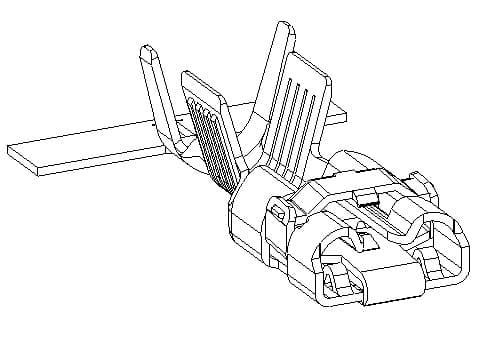

32025Y1VF - SIKO 6.3 Receptacle Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
Part Number: 32025Y1VF
Product Specification
Previously cataloged under part number 46818213178.
The flat connector systems SIKO 1 and SIKO 2 combines the properties of a permanent connection with the advantage of a releasable one.
They are used where most connections do not offer the operating safety required e.g. because of vibration or tension on the wire. The secure contact systems solution for tab width of 4.8 mm and 6.3 mm.
Part Number: 32025Y1VF.
