TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 318901212
- Legacy Part Number
- 28396306178
Other properties
- Terminal Size [mm]
- 6.3
- Application
- Junction Boxes, PCB
- Core Material
- CuCrTiSi
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- PCB Soldered
- Terminal Type
- Receptacle
DOWNLOADS
Loading...
318901212 - RECEPTACLE 6.3 PCB TERMINAL
Part Number: 318901212

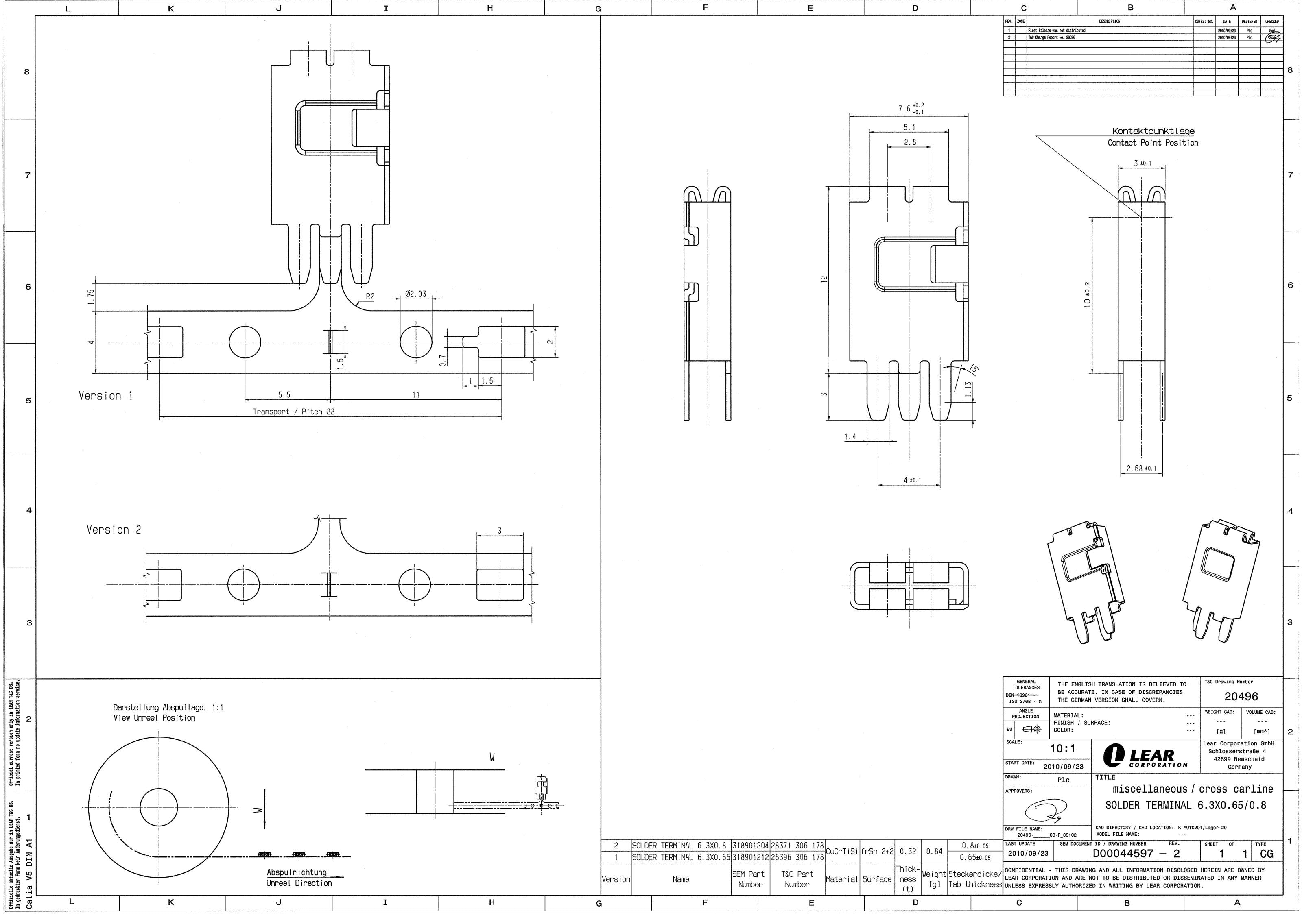

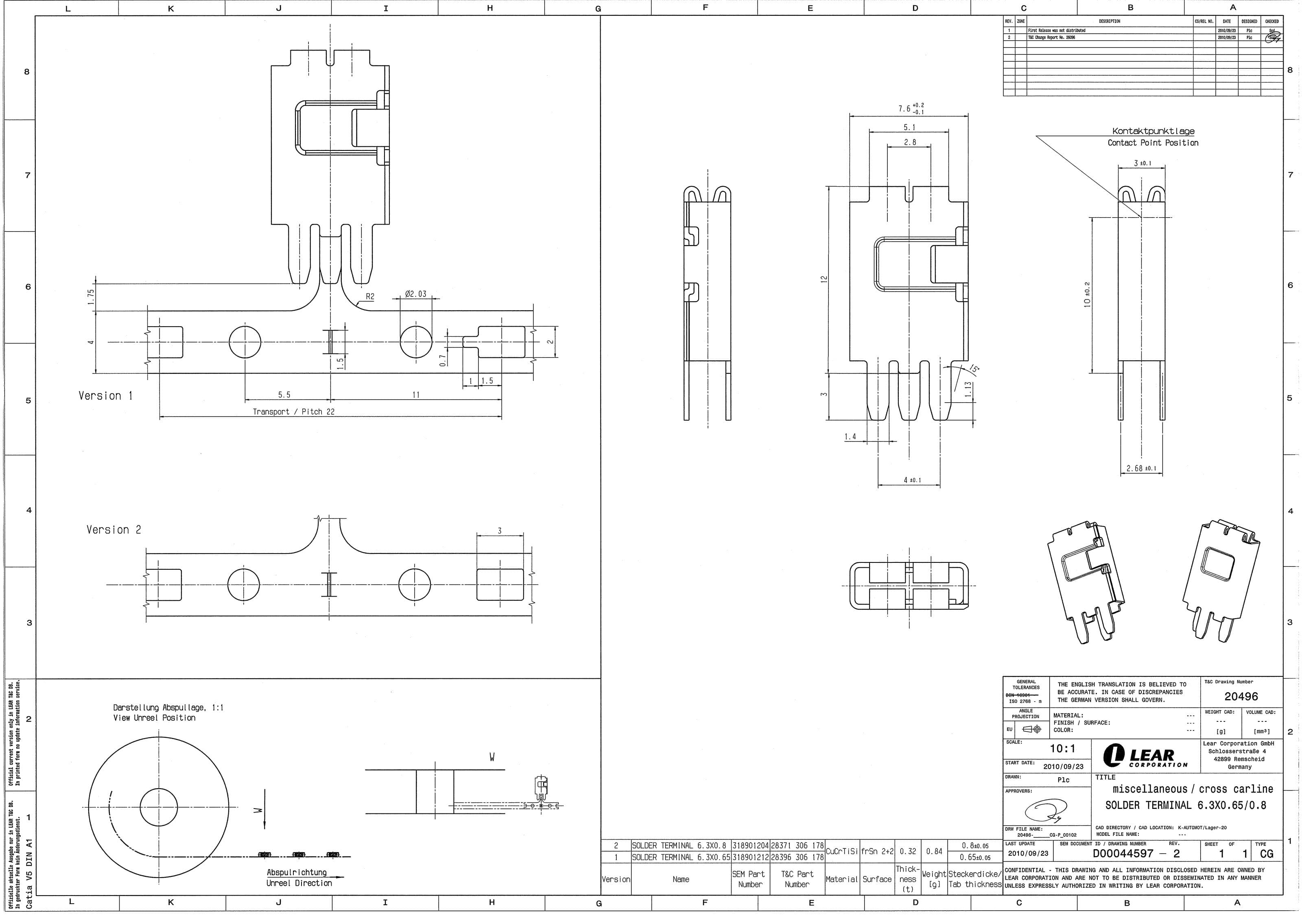

Click to see 3D model
Product Specification
Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
Part Number: 318901212.
