TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E12388100
- Product Family
- RECEPTACLE
Other properties
- Terminal Size [mm]
- 2.8
- Core Material
- Cu
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.5
- Maximum Cable Cross section [mm²]
- 0.75
- RoHS
- YES
DOWNLOADS
Loading...
E12388100 - RECEPTACLE 4.8 TERMINAL
Part Number: E12388100

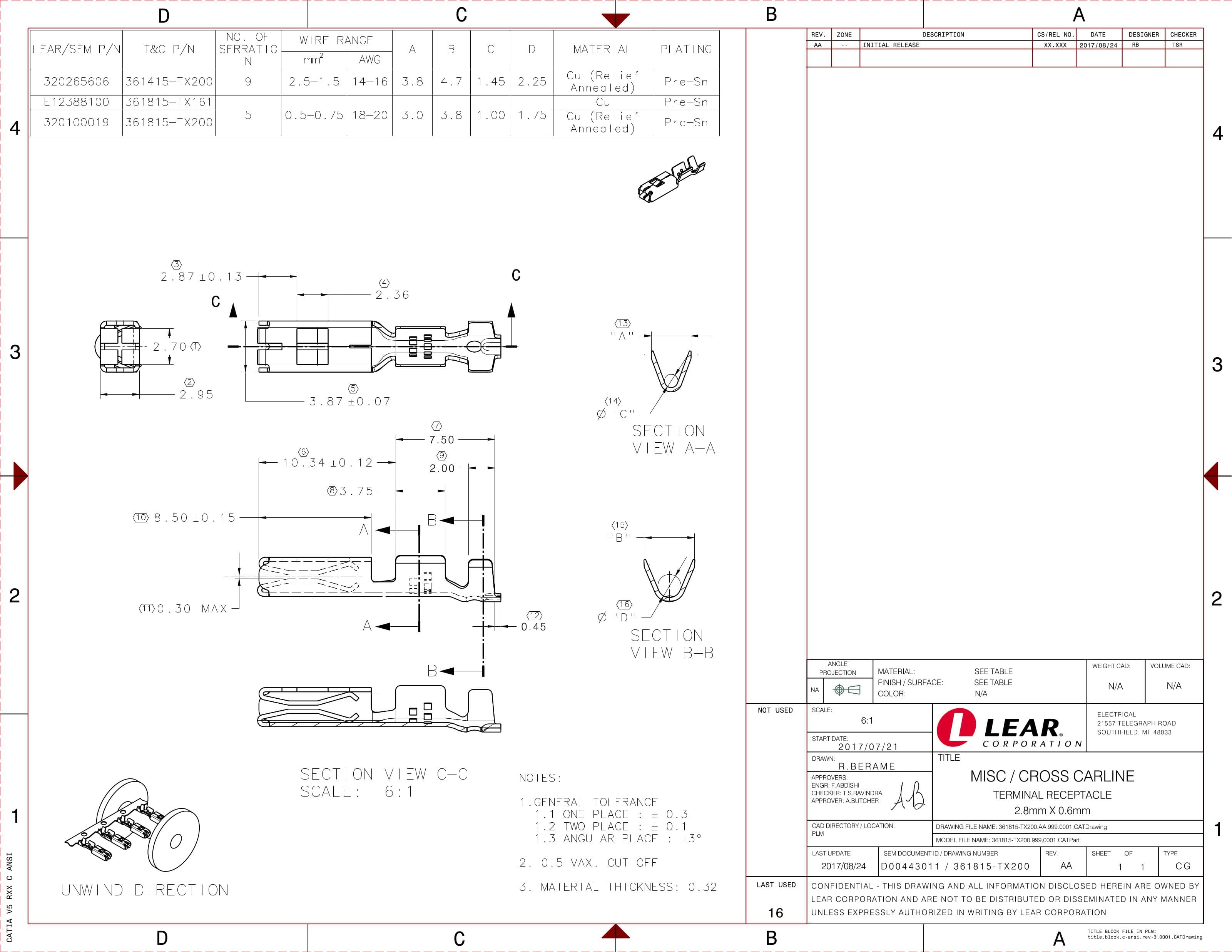

Click to see 3D model
Product Specification
Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
Part Number: E12388100.
