TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E09575000
Product Family
RECEPTACLE

Other properties

Terminal Size [mm]
4.8
Core Material
CuZn
Plating Material
Not Plated
Connection Technology
Standard Crimp
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.75
RoHS
YES

DOWNLOADS

3D Cad

3D Cad E09575000

DOWNLOAD

Loading...

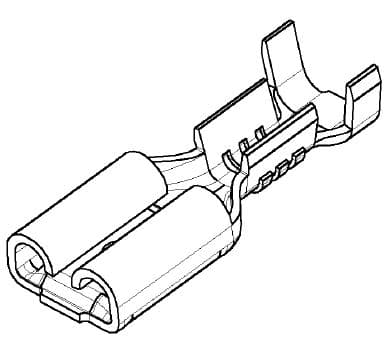

E09575000 - RECEPTACLE 4.8 TERMINAL

Part Number: E09575000

Click to see 3D model

RECEPTACLE 4.8 TERMINAL

Product Specification

Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.

Part Number: E09575000.
