TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 3202597Z9
- Legacy Part Number
- 28103201178
- Product Family
- MSK
Other properties
- Terminal Size [mm]
- 0.63
- Application
- Signal
- Core Material
- CuSn
- Plating Material
- Sn
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.22
- Maximum Cable Cross section [mm²]
- 0.5
MSK 0.63 PLUS TERMINAL
3202564N6
Product Category:
TERMINALSLegacy Part Number:
28103201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 PLUS TERMINAL
3202597Y1
Product Category:
TERMINALSLegacy Part Number:
28104201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
MSK 0.63 TERMINAL
3202598F4
Product Category:
TERMINALSLegacy Part Number:
28054201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5
MSK 0.63 TERMINAL
E00029448
Product Category:
TERMINALSLegacy Part Number:
28378201178Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.22
MSK 0.63 TERMINAL
E00029449
Product Category:
TERMINALSLegacy Part Number:
28378201702Terminal Size [mm]
0.63
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.22
Loading...

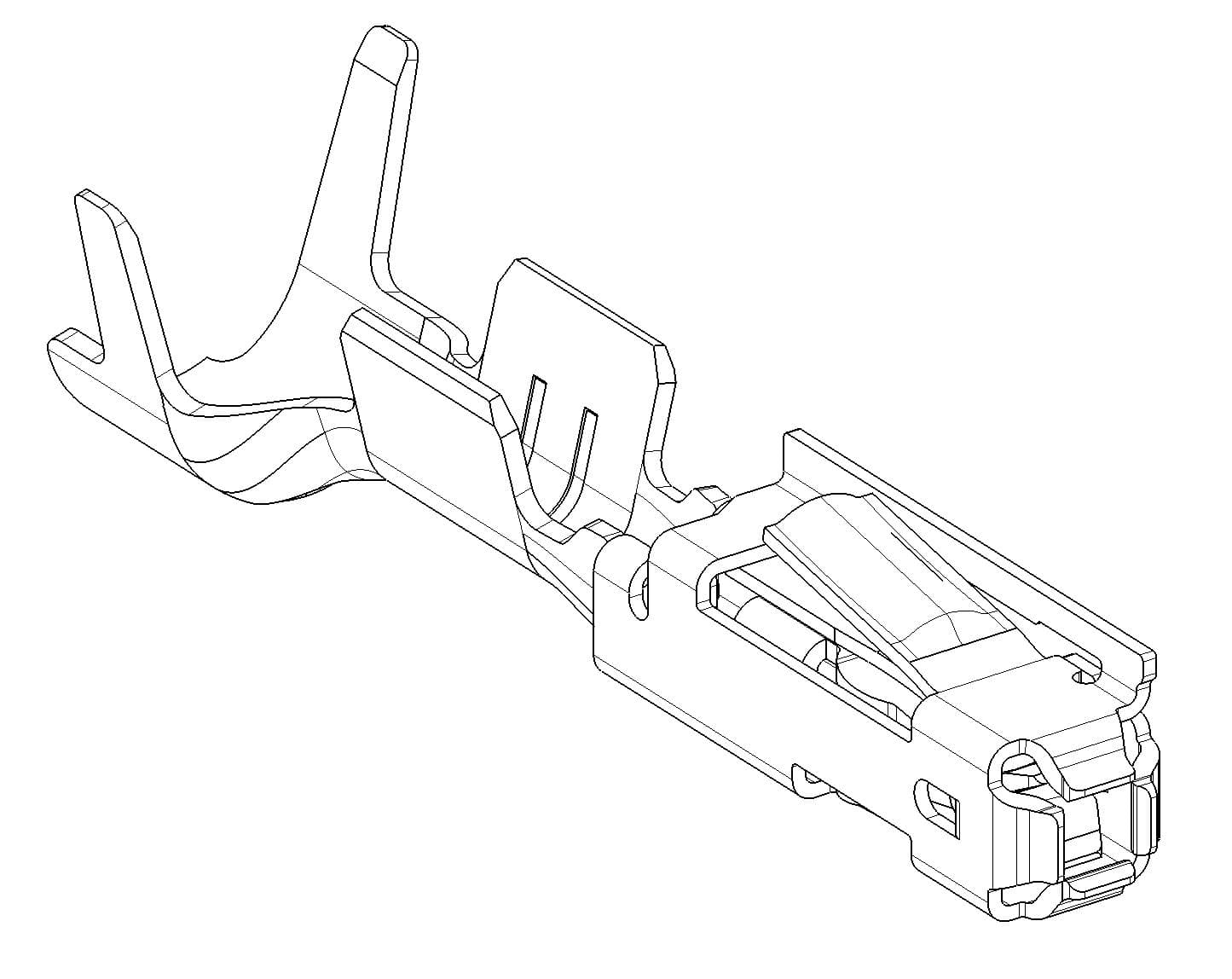

3202597Z9 - MSK 0.63 PLUS TERMINAL
Part Number: 3202597Z9
Click to see 3D model
Product Specification
Lear's MSK Terminal is a well proven 0.63 mm terminal system covering a wide range of automotive applications.
Made up of a copper alloy body and a supporting stainless steel spring it provides reliable performance and handling robustness. Its design ensures high density connector housings and mechanical strength.
Part Number: 3202597Z9, compatible with: 962885-1, MQS, MTS.
