TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
3202564N6
Legacy Part Number
28103201702
Product Family
MSK

Other properties

Terminal Size [mm]
0.63
Application
Signal
Core Material
CuSn
Plating Material
Au
Sealable
Sealed
Connection Technology
Standard Crimp
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
0.22
Maximum Cable Cross section [mm²]
0.5

DOWNLOADS

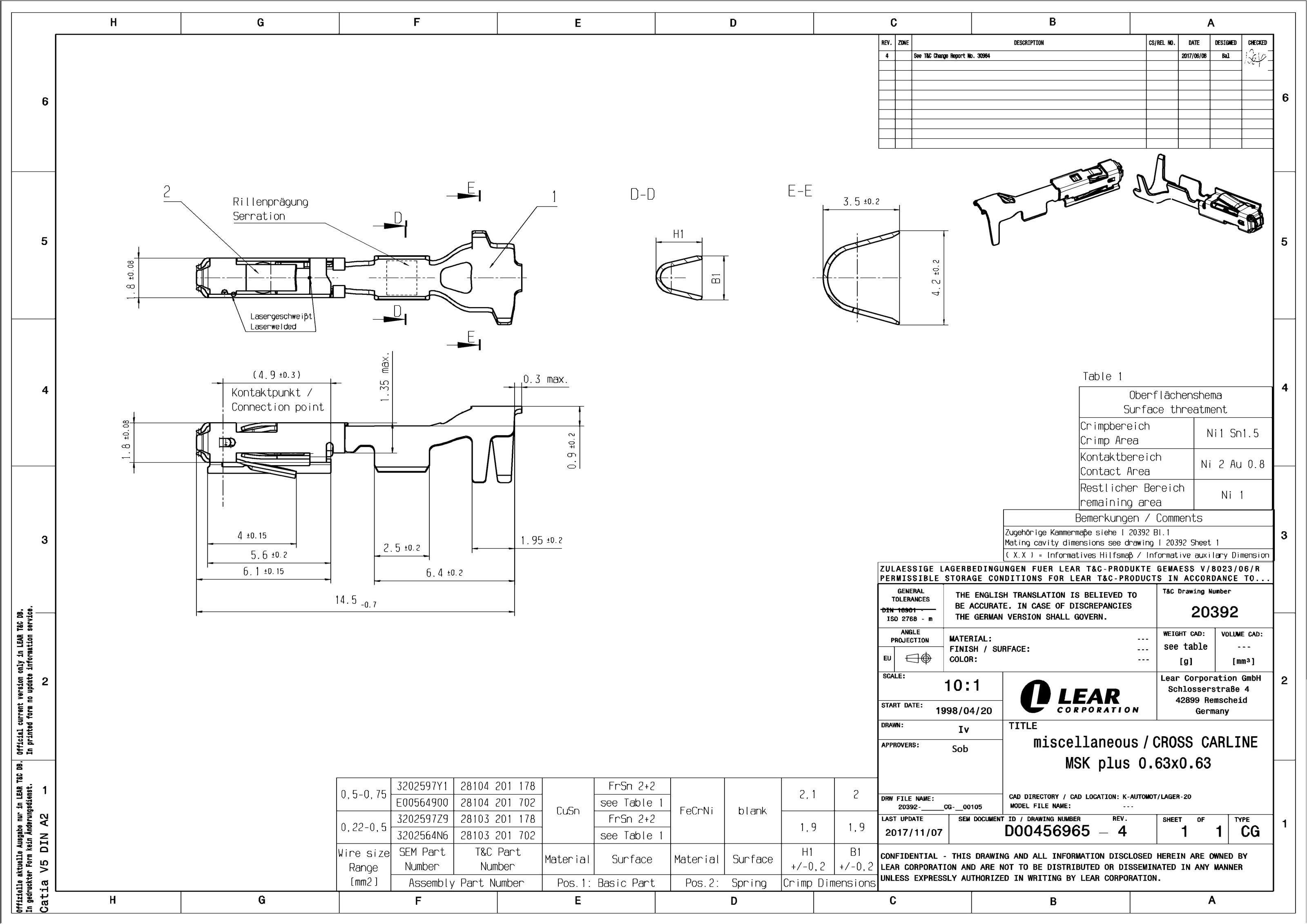

2D Drawing

2D Drawing 3202564N6

DOWNLOAD

3D PDF

3D PDF 3202564N6

DOWNLOAD

3D Cad

3D Cad 3202564N6

DOWNLOAD

Loading...

MSK 0.63 PLUS TERMINAL

Part Number: 3202564N6

Click to see 3D model

MSK 0.63 PLUS TERMINAL

Product Specification

Lear's MSK Terminal is a well proven 0.63 mm terminal system covering a wide range of automotive applications.

Made up of a copper alloy body and a supporting stainless steel spring it provides reliable performance and handling robustness. Its design ensures high density connector housings and mechanical strength.
