TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E08723100
- Legacy Part Number
- 26194213178
- Product Family
- MDK
Other properties
- Terminal Size [mm]
- 2.8
- Core Material
- CuSn
- Plating Material
- Sn
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 1.5
- Maximum Cable Cross section [mm²]
- 2.5
DOWNLOADS

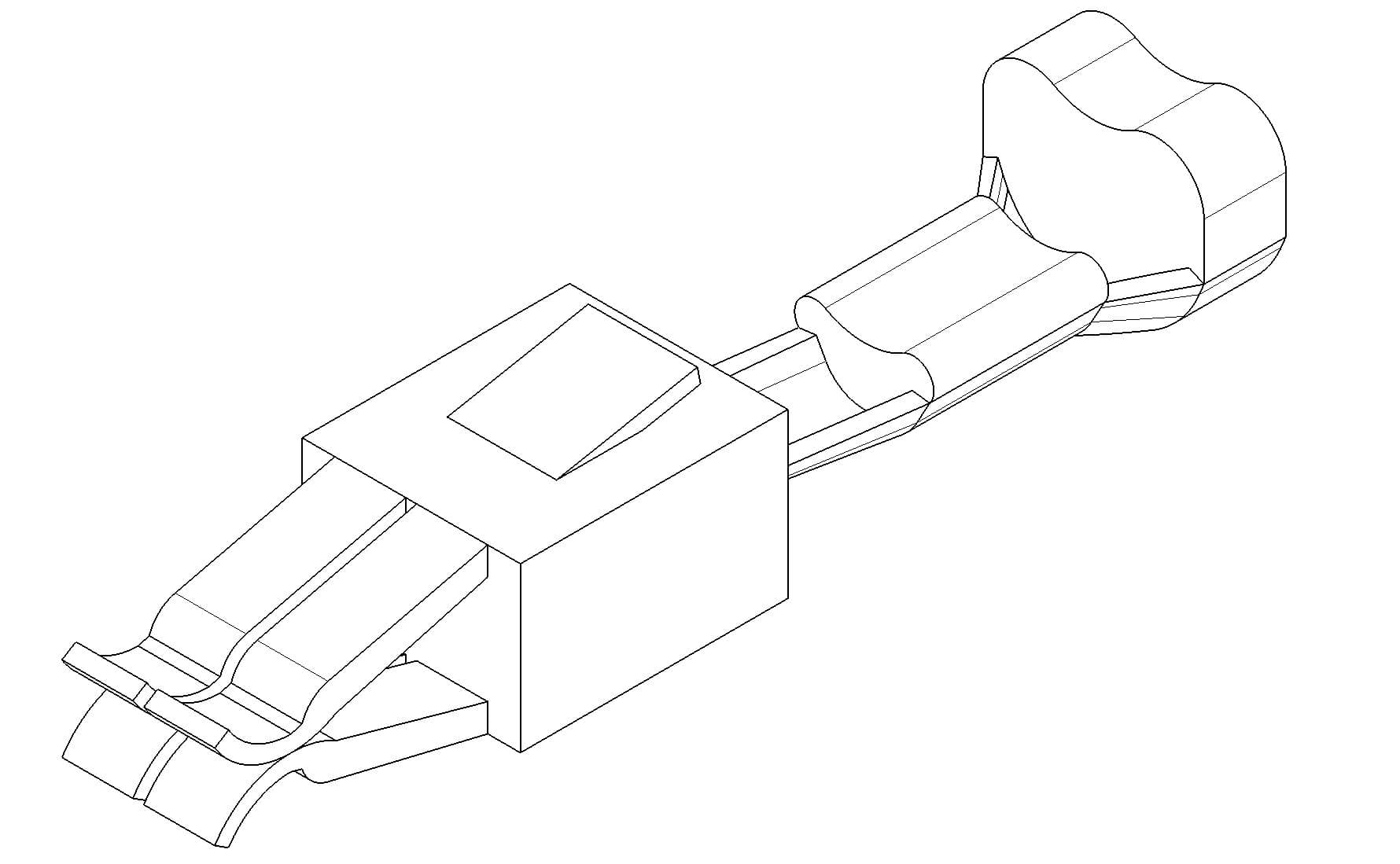

2D Drawing
2D Drawing E08723100
E08723100 - MDK 2.8 TERMINAL
Part Number: E08723100
Product Specification
Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
Part Number: E08723100.
