TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E59487700
- Product Family
- MAK
Other properties
- Terminal Size [mm]
- 8, 9.5
- Application
- High Current
- Core Material
- CuCrTiSi
- Plating Material
- Ag
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 2.5
- Maximum Cable Cross section [mm²]
- 4
- Min Temp (C)
- -40
- Max Temp (C)
- +150
2D Drawing

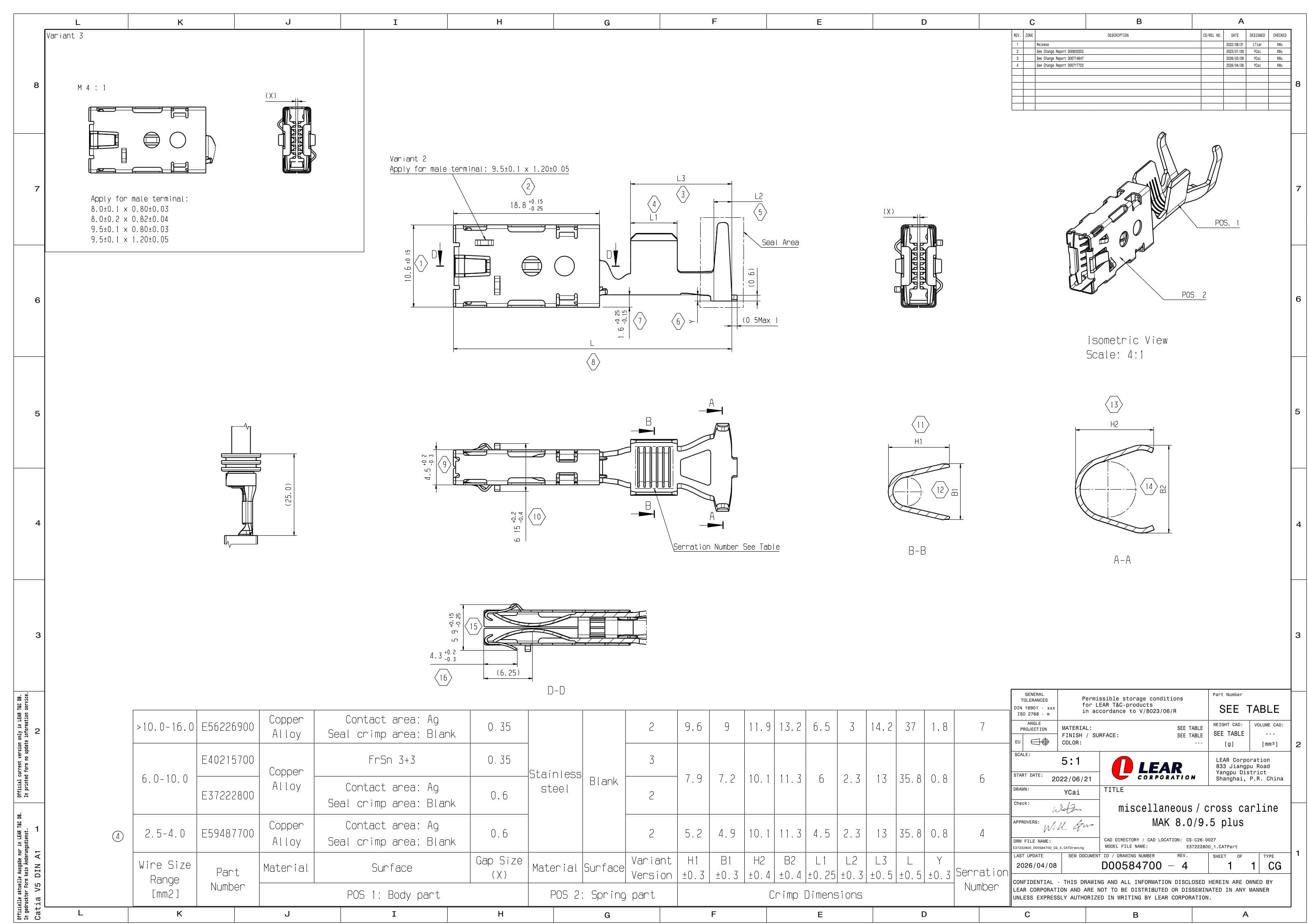

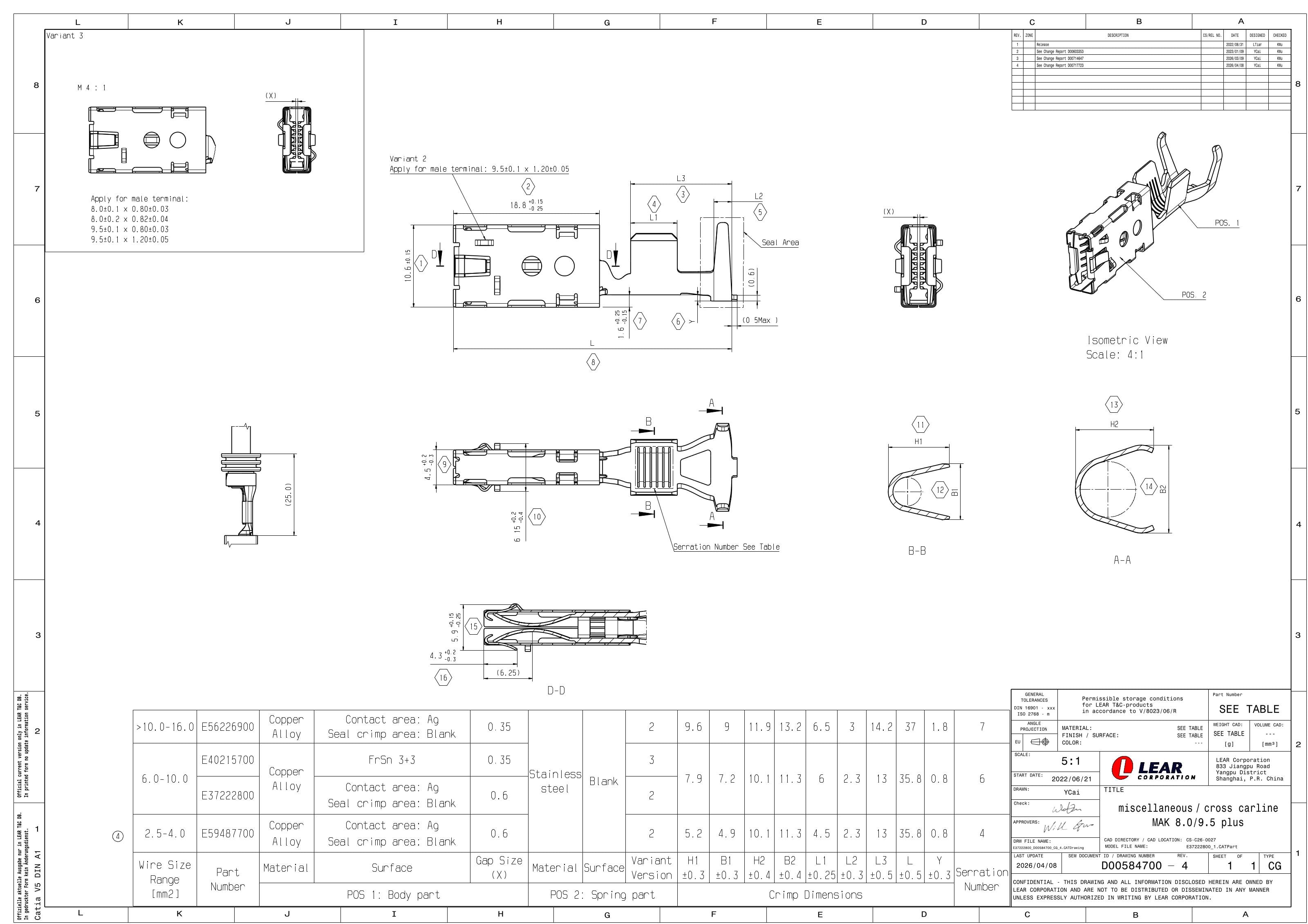

2D Drawing E59487700
MAK 8/9.5 Receptacle Sealed Crimp Terminal, Sn, 6-10mm²
E40215700
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
8, 9.5
Minimum Cable Cross section [mm²]
6
Maximum Cable Cross section [mm²]
10
MAK 8/9.5 Receptacle Sealed Crimp Terminal, Ag, 6-10mm²
E37222800
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
8, 9.5
Minimum Cable Cross section [mm²]
6
Maximum Cable Cross section [mm²]
10
MAK 8/9.5 Receptacle Sealed Crimp Terminal, Ag, 10-16mm²
E56226900
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
8, 9.5
Minimum Cable Cross section [mm²]
10
Maximum Cable Cross section [mm²]
16
E59487700 - MAK 8/9.5 Receptacle Sealed Crimp Terminal, Ag, 2.5-4mm²
Part Number: E59487700
Product Specification
A sealed receptacle terminal belonging to the MAK product family, categorized within the terminals product category. Compatible with 8 mm and 9.5 mm terminal sizes, it accommodates wire cross-sections of 2.5–4 mm² via crimp termination.
Rated for an operating temperature range of –40 °C to +150 °C, making it suitable for demanding automotive thermal environments. The contact surface is silver-plated (Ag) to ensure reliable electrical performance and corrosion resistance.
Part Number: E59487700.
