TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E00029190
Legacy Part Number
28768000001
Product Family
MAK

Other properties

Terminal Size [mm]
8.0, 9.5
Application
High Current
Core Material
Cu
Plating Material
Ag
Sealable
Sealed
Connection Technology
Standard Crimp
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
6
Maximum Cable Cross section [mm²]
10

DOWNLOADS

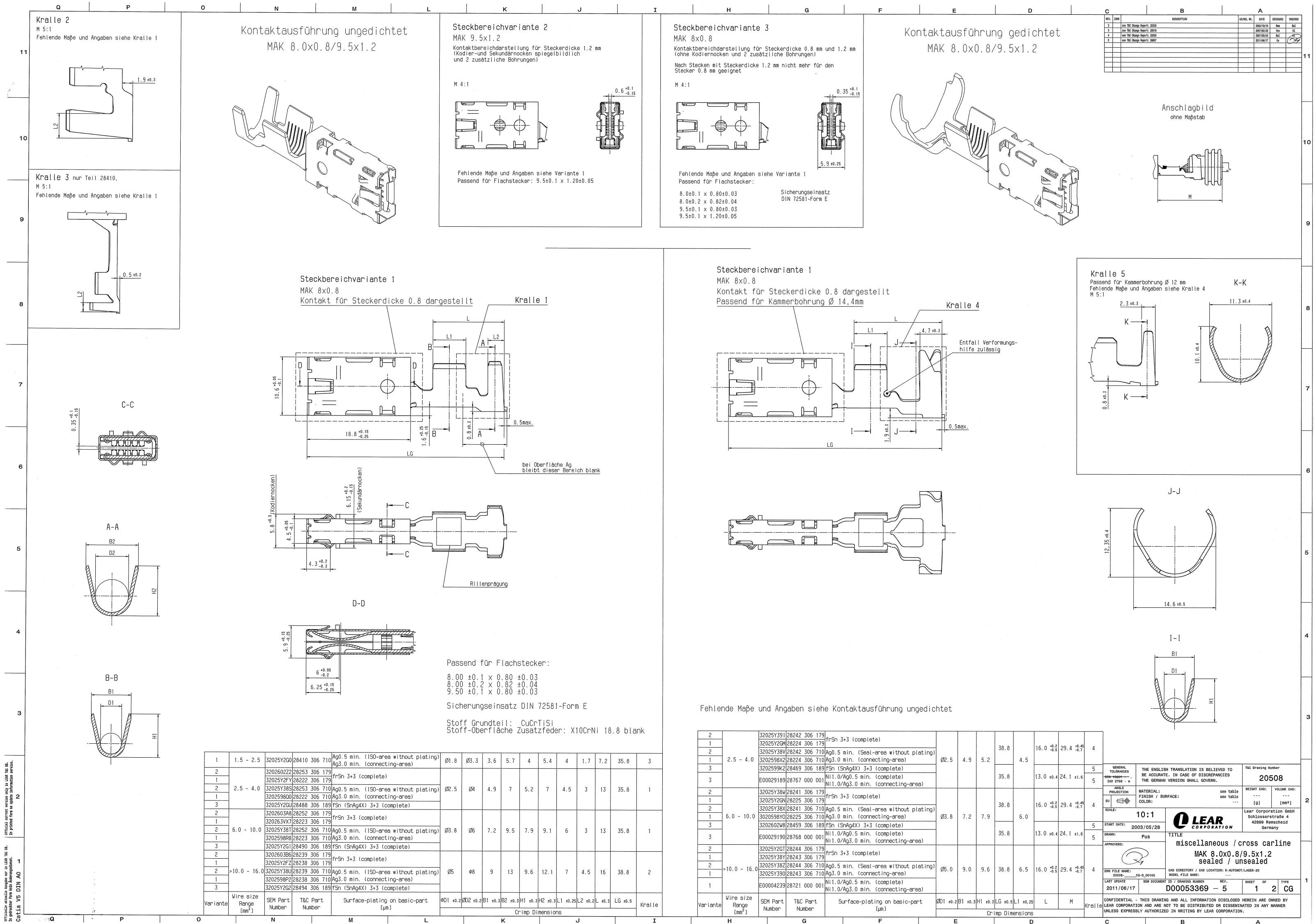

2D Drawing

2D Drawing E00029190

DOWNLOAD

3D PDF

3D PDF E00029190

DOWNLOAD

MAK 8 (9.5) PLUS TERMINAL

Part Number: E00029190

MAK 8 (9.5) PLUS TERMINAL

Product Specification

Lear's MAK / MAS Series covers all components for high performance connection systems. More electrified, connected mobility starts with smarter solutions.

The MAK system starts with terminals at 0.5 up to 12 and includes related components with different shapes, cavities, mounting & locking styles, materials & codings. It delivers reliable solutions to transfer & protect signal and power distribution for the best performance throughout the vehicle.
