TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E06825400
Legacy Part Number
28576000003
Product Family
MAK

Other properties

Terminal Size [mm]
8.0, 9.5
Core Material
Cu
Sealable
Unsealed
Connection Technology
Ultrasonic Weld
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
25

DOWNLOADS

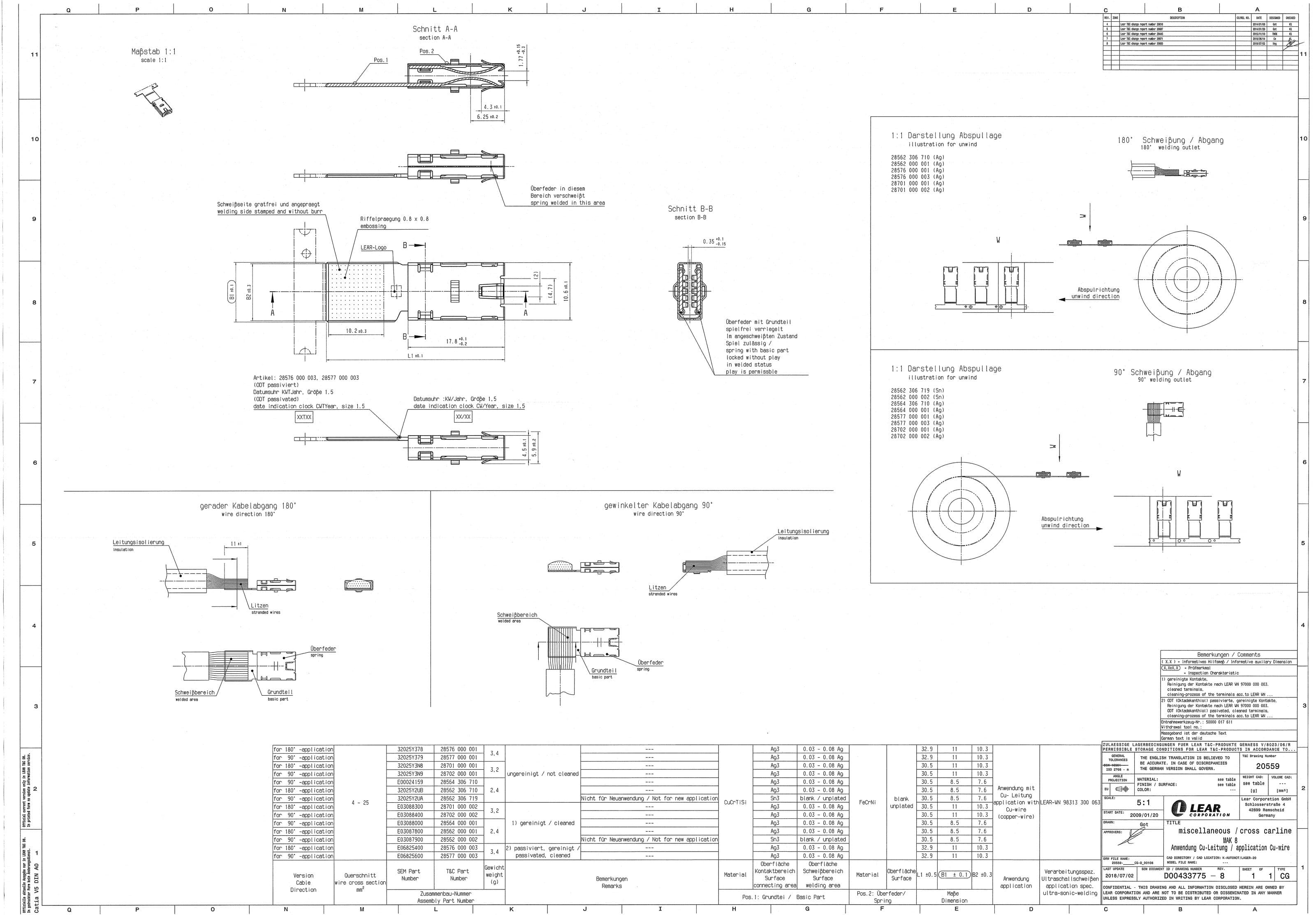

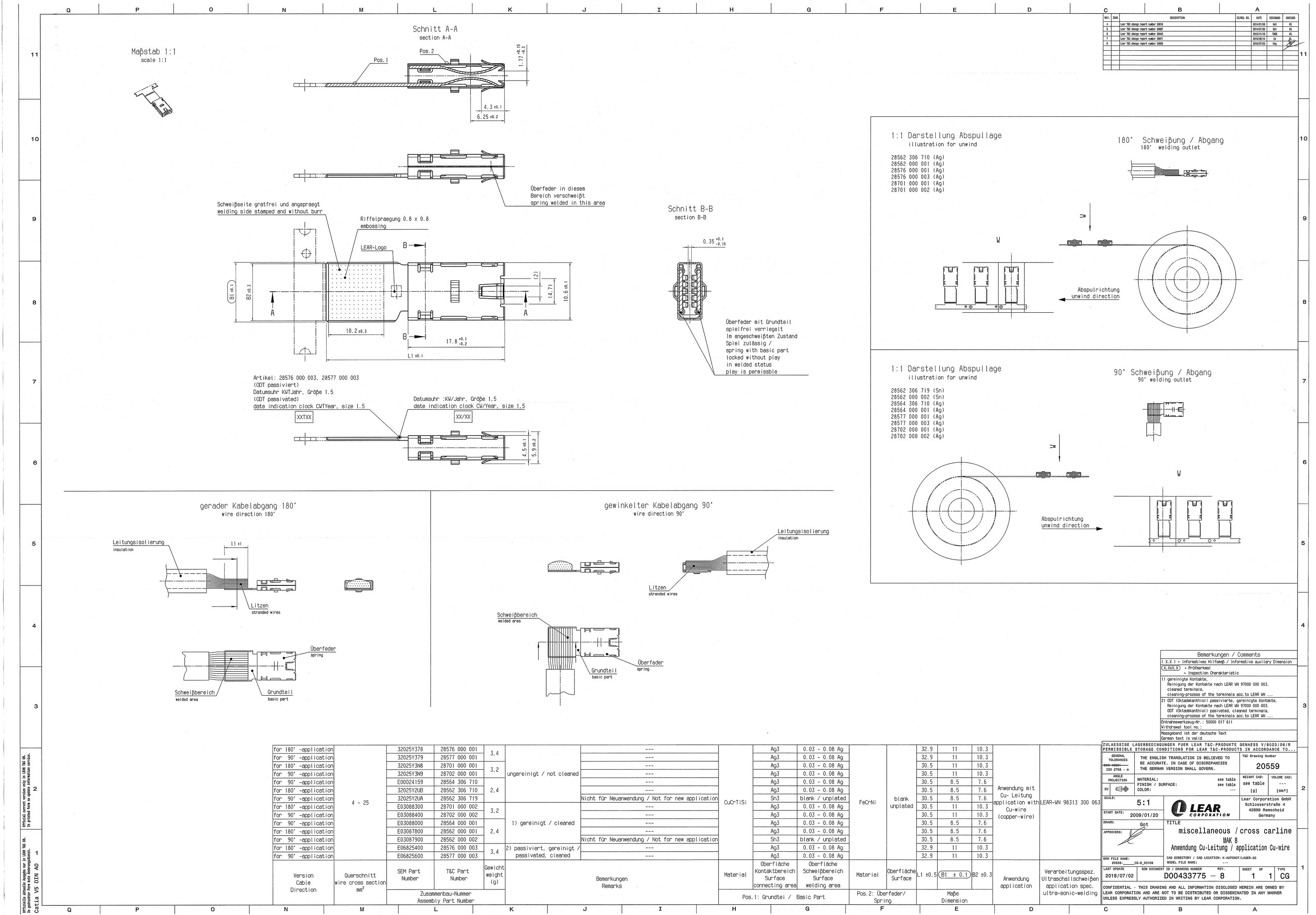

2D Drawing

2D Drawing E06825400

DOWNLOAD

3D PDF

3D PDF E06825400

DOWNLOAD

3D Cad

3D Cad E06825400

DOWNLOAD

Loading...

MAK 8.0 (9.5) TERMINAL

Part Number: E06825400

Click to see 3D model

MAK 8.0 (9.5) TERMINAL

Product Specification

Lear's MAK / MAS Series covers all components for high performance connection systems. More electrified, connected mobility starts with smarter solutions.

The MAK system starts with terminals at 0.5 up to 12 and includes related components with different shapes, cavities, mounting & locking styles, materials & codings. It delivers reliable solutions to transfer & protect signal and power distribution for the best performance throughout the vehicle.
