TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 32025Y2G0
- Legacy Part Number
- 28410306710
- Product Family
- MAK
Other properties
- Terminal Size [mm]
- 8.0, 9.5
- Core Material
- Cu
- Plating Material
- Ag
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 1.5
- Maximum Cable Cross section [mm²]
- 2.5
- Remarks
- Suits also 9.5mm blades
MAK 8.0/9.5 Receptacle Sealed Crimp Terminal, Ag, 2.5-4mm²
3202598X2
Product Category:
TERMINALSLegacy Part Number:
28224306710Connection Technology
Standard Crimp
Terminal Size [mm]
8.0, 9.5
Sealable
Sealed
MAK 8.0/9.5 Receptacle Sealed Crimp Terminal, Ag, 6-10mm²
3202598Y0
Product Category:
TERMINALSLegacy Part Number:
28225306710Connection Technology
Standard Crimp
Terminal Size [mm]
8.0, 9.5
Sealable
Sealed
MAK 8.0/9.5 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm²
3202599K2
Product Category:
TERMINALSLegacy Part Number:
28469306189Connection Technology
Standard Crimp
Terminal Size [mm]
8.0, 9.5
Sealable
Sealed
MAK 8.0/9.5 Receptacle Sealed Crimp Terminal, Sn, 6-10mm²
3202602W8
Product Category:
TERMINALSLegacy Part Number:
28459306189Connection Technology
Standard Crimp
Terminal Size [mm]
8.0, 9.5
Sealable
Sealed
MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 2.5-4mm²
3202598Q0
Product Category:
TERMINALSLegacy Part Number:
28222306710Connection Technology
Standard Crimp
Terminal Size [mm]
8, 9.5
Sealable
Unsealed
MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 6-10mm²
3202598R8
Product Category:
TERMINALSLegacy Part Number:
28223306710Connection Technology
Standard Crimp
Terminal Size [mm]
8, 9.5
Sealable
Unsealed
MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 10-16mm²
3202598P2
Product Category:
TERMINALSLegacy Part Number:
28238306710Connection Technology
Standard Crimp
Terminal Size [mm]
8, 9.5
Sealable
Unsealed
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm²
32025Y2GU
Product Category:
TERMINALSLegacy Part Number:
28488306189Connection Technology
Standard Crimp
Terminal Size [mm]
8.0, 9.5
Sealable
Unsealed
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm²
3202602Z2
Product Category:
TERMINALSLegacy Part Number:
28253306179Connection Technology
Standard Crimp
Terminal Size [mm]
8.0, 9.5
Sealable
Unsealed
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 6-10mm²
32025Y2G1
Product Category:
TERMINALSLegacy Part Number:
28490306189Connection Technology
Standard Crimp
Terminal Size [mm]
8.0, 9.5
Sealable
Unsealed
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 6-10mm²
3202603A8
Product Category:
TERMINALSLegacy Part Number:
28252306179Connection Technology
Standard Crimp
Terminal Size [mm]
8.0, 9.5
Sealable
Unsealed
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 10-16mm²
32025Y2G2
Product Category:
TERMINALSLegacy Part Number:
28494306189Connection Technology
Standard Crimp
Terminal Size [mm]
8.0, 9.5
Sealable
Unsealed
MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 10-16mm²
3202603B6
Product Category:
TERMINALSLegacy Part Number:
28239306179Connection Technology
Standard Crimp
Terminal Size [mm]
8.0, 9.5
Sealable
Unsealed
MAK 8.0/9.5 Receptacle Sealed Ultrasonic Terminal, Ag, 4-25mm²
32025Y3N9
Product Category:
TERMINALSLegacy Part Number:
28702000001Connection Technology
Ultrasonic Weld
Terminal Size [mm]
8.0, 9.5
Sealable
Sealed
MAK 8.0/9.5 Receptacle Sealed Ultrasonic Terminal, Ag, 4-25mm²
E03088000
Product Category:
TERMINALSLegacy Part Number:
28564000001Connection Technology
Ultrasonic Weld
Terminal Size [mm]
8.0, 9.5
Sealable
Sealed
MAK 8.0/9.5 Receptacle Sealed Ultrasonic Terminal, Ag, 4-25mm²
E03088300
Product Category:
TERMINALSLegacy Part Number:
28701000002Connection Technology
Ultrasonic Weld
Terminal Size [mm]
8.0, 9.5
Sealable
Sealed
MAK 8.0/9.5 Receptacle Sealed Ultrasonic Terminal, Ag, 4-25mm²
E03088400
Product Category:
TERMINALSLegacy Part Number:
28702000002Connection Technology
Ultrasonic Weld
Terminal Size [mm]
8.0, 9.5
Sealable
Sealed
MAK 8.0/9.5 Receptacle Unsealed Ultrasonic Terminal, Ag, 4-25mm²
32025Y3N8
Product Category:
TERMINALSLegacy Part Number:
28701000001Connection Technology
Ultrasonic Weld
Terminal Size [mm]
8.0, 9.5
Sealable
Unsealed
MAK 8.0/9.5 Receptacle Unsealed Ultrasonic Terminal, Ag, 4-25mm²
E06825600
Product Category:
TERMINALSLegacy Part Number:
28577000003Connection Technology
Ultrasonic Weld
Terminal Size [mm]
8.0, 9.5
Sealable
Unsealed
MAK 8.0/9.5 Receptacle Unsealed Ultrasonic Terminal, Ag, 4-35mm²
32025Y379
Product Category:
TERMINALSLegacy Part Number:
28577000001Connection Technology
Ultrasonic Weld
Terminal Size [mm]
8.0, 9.5
Sealable
Unsealed
1way MAK 8.0/9.5 Receptacle Unsealed Violet Connector
E01248400
Product Category:
CONNECTORSLegacy Part Number:
13672555679No. of cavities
1
Product Family
MAK
Terminal Size [mm]
8.0, 9.5
Sealable
Unsealed
1way MAK 8.0/9.5 Receptacle Unsealed Connector
E06940000
Product Category:
CONNECTORSLegacy Part Number:
13670000001No. of cavities
1
Product Family
MAK
Terminal Size [mm]
8.0, 9.5
Sealable
Unsealed
2way MAK 8.0/9.5 Receptacle Unsealed Blue Connector
E03048200
Product Category:
CONNECTORSLegacy Part Number:
21303000001No. of cavities
2
Product Family
MAK
Terminal Size [mm]
8.0, 9.5
Sealable
Unsealed
Loading...

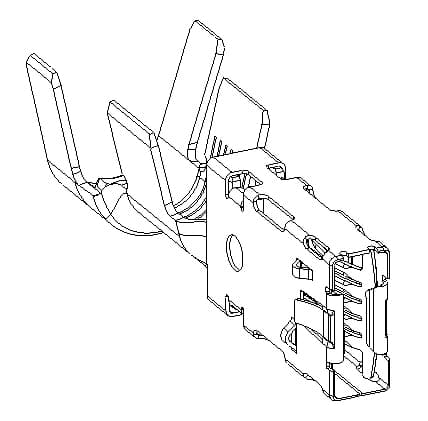

32025Y2G0 - MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Ag, 1.5-2.5mm²
Part Number: 32025Y2G0
Click to see 3D model
Product Specification
Previously cataloged under part number 28410306710.
Lear's MAK / MAS Series covers all components for high performance connection systems. More electrified, connected mobility starts with smarter solutions.
The MAK system starts with terminals at 0.5 up to 12 and includes related components with different shapes, cavities, mounting & locking styles, materials & codings. It delivers reliable solutions to transfer & protect signal and power distribution for the best performance throughout the vehicle.
Part Number: 32025Y2G0.
This product requires other components for a fully functional assembly configuration:
Lear Connection Systems is offering other variants of this product:
- MAK 8.0/9.5 Receptacle Sealed Crimp Terminal, Ag, 2.5-4mm² (3202598X2)
- MAK 8.0/9.5 Receptacle Sealed Crimp Terminal, Ag, 6-10mm² (3202598Y0)
- MAK 8.0/9.5 Receptacle Sealed Crimp Terminal, Sn, 2.5-4mm² (3202599K2)
- MAK 8.0/9.5 Receptacle Sealed Crimp Terminal, Sn, 6-10mm² (3202602W8)
- MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 2.5-4mm² (3202598Q0)
- MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 6-10mm² (3202598R8)
- MAK 8/9.5 Receptacle Unsealed Crimp Terminal, Ag, 10-16mm² (3202598P2)
- MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm² (32025Y2GU)
- MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 2.5-4mm² (3202602Z2)
- MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 6-10mm² (32025Y2G1)
- MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 6-10mm² (3202603A8)
- MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 10-16mm² (32025Y2G2)
- MAK 8.0/9.5 Receptacle Unsealed Crimp Terminal, Sn, 10-16mm² (3202603B6)
- MAK 8.0/9.5 Receptacle Sealed Ultrasonic Terminal, Ag, 4-25mm² (32025Y3N9)
- MAK 8.0/9.5 Receptacle Sealed Ultrasonic Terminal, Ag, 4-25mm² (E03088000)
- MAK 8.0/9.5 Receptacle Sealed Ultrasonic Terminal, Ag, 4-25mm² (E03088300)
- MAK 8.0/9.5 Receptacle Sealed Ultrasonic Terminal, Ag, 4-25mm² (E03088400)
- MAK 8.0/9.5 Receptacle Unsealed Ultrasonic Terminal, Ag, 4-25mm² (32025Y3N8)
- MAK 8.0/9.5 Receptacle Unsealed Ultrasonic Terminal, Ag, 4-25mm² (E06825600)
- MAK 8.0/9.5 Receptacle Unsealed Ultrasonic Terminal, Ag, 4-35mm² (32025Y379)
