TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
32025Y3N9
Legacy Part Number
28702000001
Product Family
MAK

Other properties

Terminal Size [mm]
8.0, 9.5
Core Material
Cu
Plating Material
Ag
Sealable
Sealed
Connection Technology
Ultrasonic Weld
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
25
Remarks
Suits also 9.5mm blades

DOWNLOADS

2D Drawing

2D Drawing 32025Y3N9

DOWNLOAD

3D PDF

3D PDF 32025Y3N9

DOWNLOAD

3D Cad

3D Cad 32025Y3N9

DOWNLOAD

Loading...

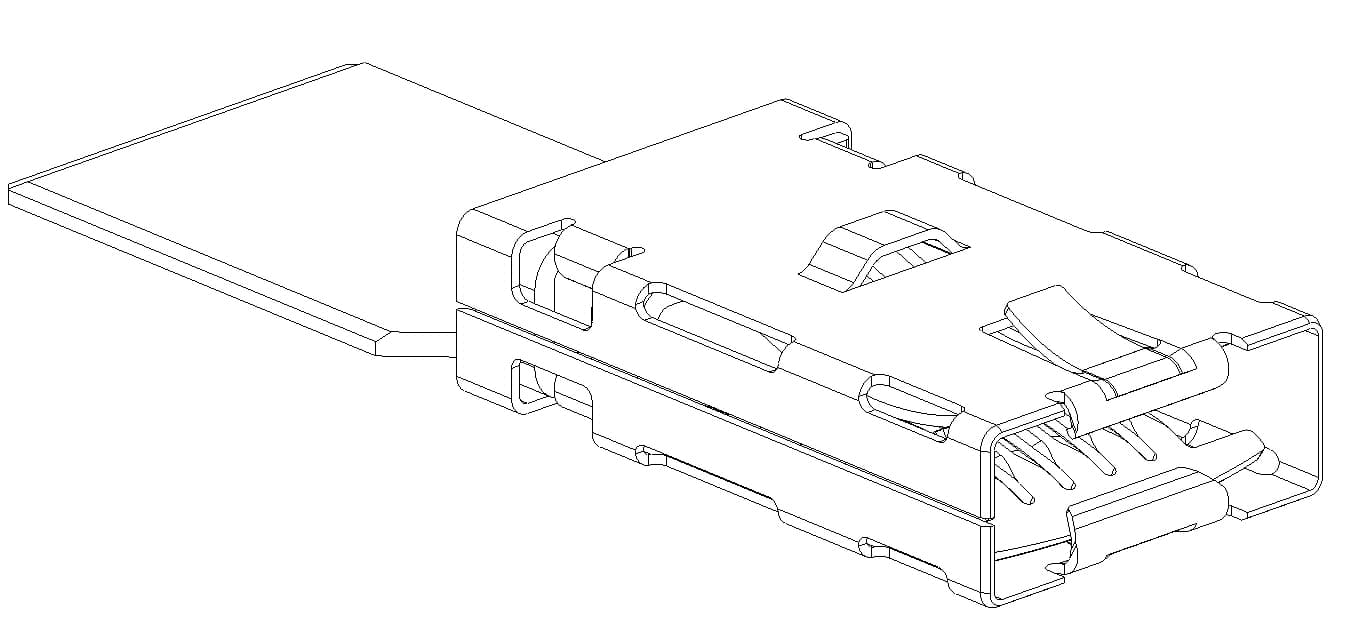

MAK 8.0 (9.5) TERMINAL

Part Number: 32025Y3N9

Click to see 3D model

MAK 8.0 (9.5) TERMINAL

Product Specification

Lear's MAK / MAS Series covers all components for high performance connection systems. More electrified, connected mobility starts with smarter solutions.

The MAK system starts with terminals at 0.5 up to 12 and includes related components with different shapes, cavities, mounting & locking styles, materials & codings. It delivers reliable solutions to transfer & protect signal and power distribution for the best performance throughout the vehicle.
