TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
3202594J9
Legacy Part Number
28272306185
Product Family
MAK

Other properties

Terminal Size [mm]
2.8
Core Material
CuCrTiSi
Plating Material
Sn
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1

DOWNLOADS

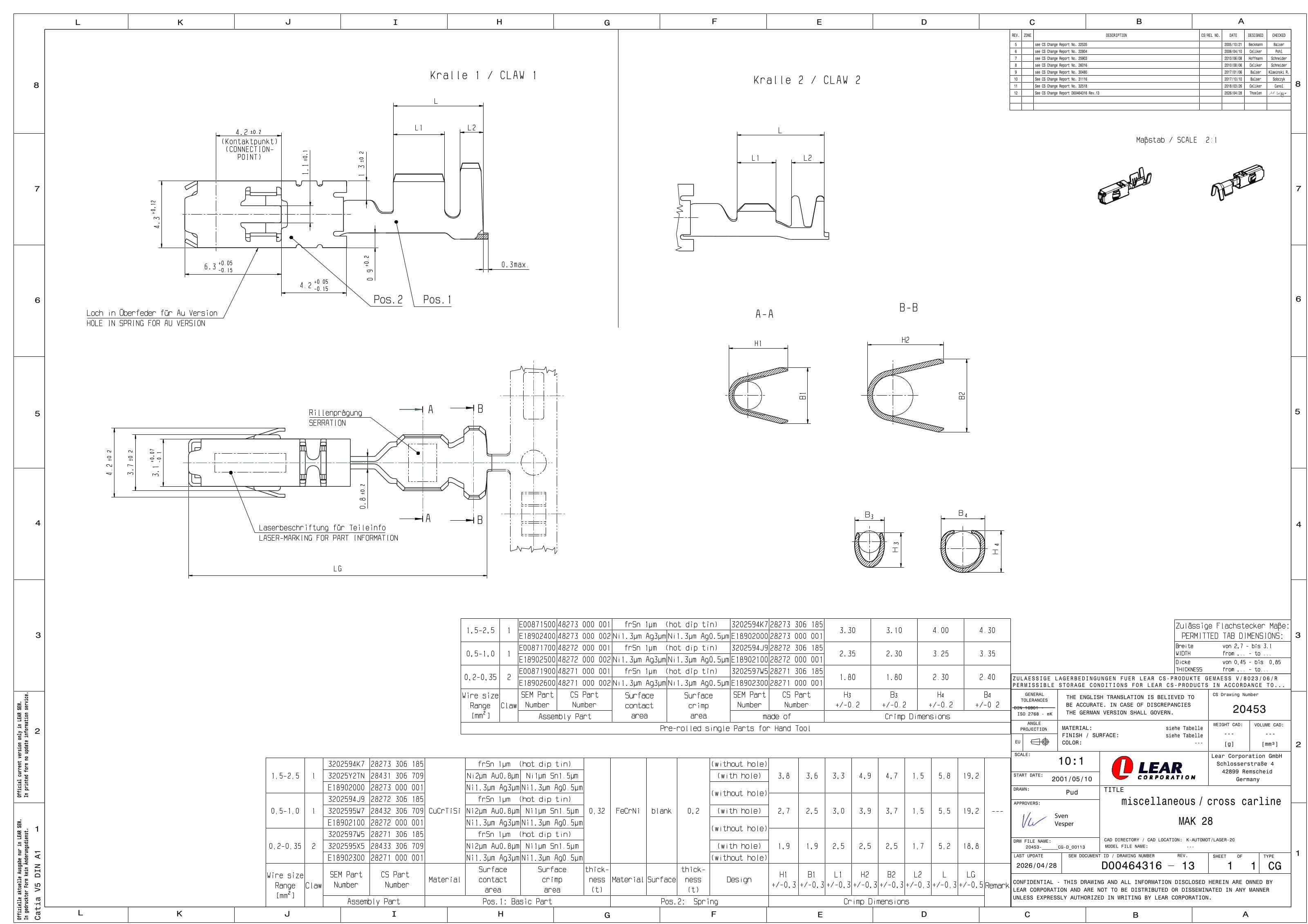

2D Drawing

2D Drawing 3202594J9

DOWNLOAD

3D PDF

3D PDF 3202594J9

DOWNLOAD

3D Cad

3D Cad 3202594J9

DOWNLOAD

Loading...

MAK 2.8 TERMINAL

Part Number: 3202594J9

Click to see 3D model

MAK 2.8 TERMINAL

Product Specification

Lear's MAK / MAS Series covers all components for high performance connection systems. More electrified, connected mobility starts with smarter solutions.

The MAK system starts with terminals at 0.5 up to 12 and includes related components with different shapes, cavities, mounting & locking styles, materials & codings. It delivers reliable solutions to transfer & protect signal and power distribution for the best performance throughout the vehicle.
