TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 32025Y193
- Legacy Part Number
- 28435306709
- Product Family
- MAK
Other properties
- Terminal Size [mm]
- 2.8
- Core Material
- Cu
- Plating Material
- Au
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.5
- Maximum Cable Cross section [mm²]
- 1
DOWNLOADS
SIMILAR PARTS
MAK 2.8 TERMINAL
Part Number: 3202595W7
Product Category: TERMINALS
Legacy Part Number: 28432306709
Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
MAK 2.8 TERMINAL
Part Number: 3202595X5
Product Category: TERMINALS
Legacy Part Number: 28433306709
Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 2.8 PLUS TERMINAL
Part Number: E00012057
Product Category: TERMINALS
Legacy Part Number: 28436306709
Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
MAK 2.8 PLUS TERMINAL
Part Number: E00012059
Product Category: TERMINALS
Legacy Part Number: 28434306709
Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
Loading...
MAK 2.8 PLUS TERMINAL
Part Number: 32025Y193

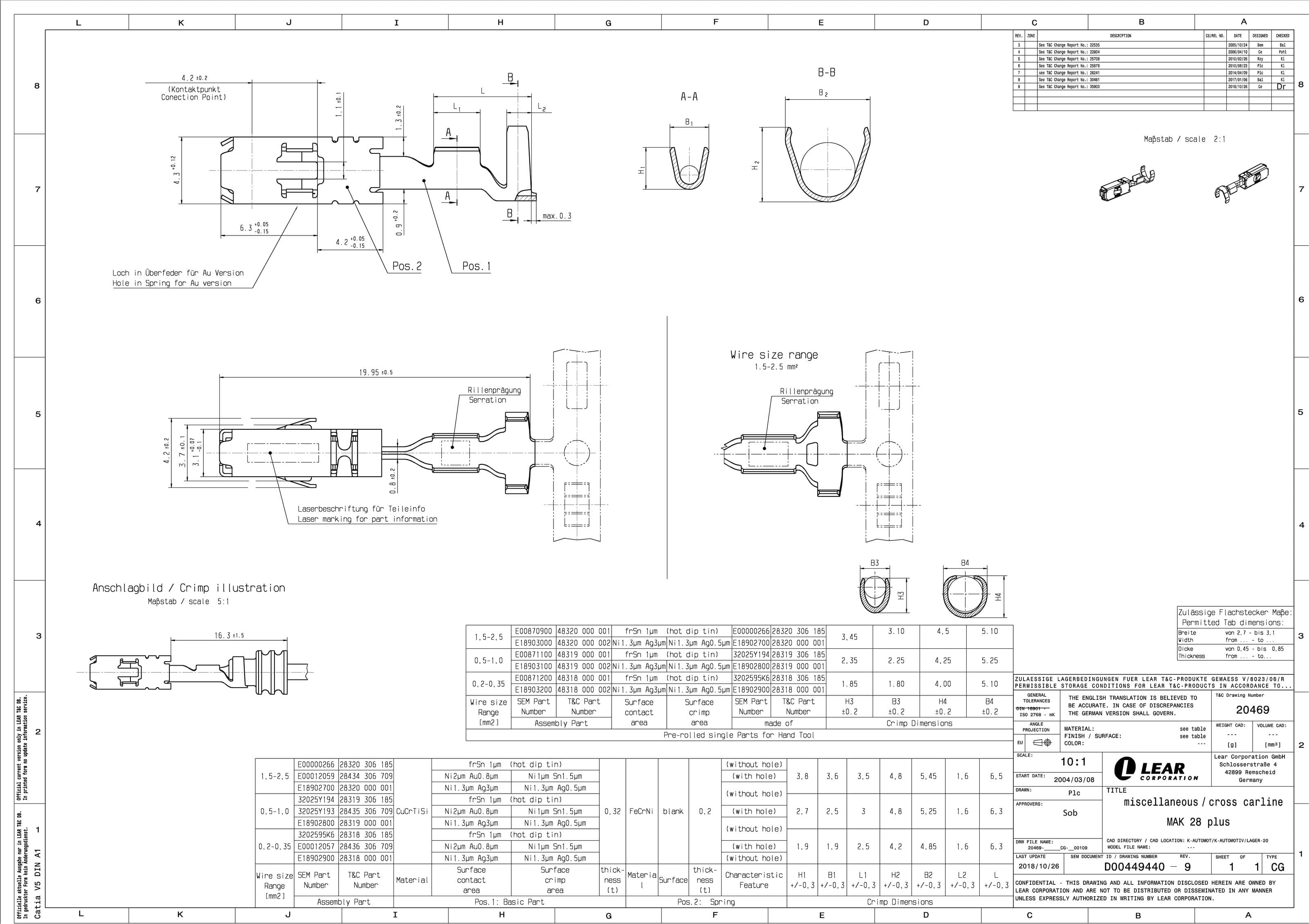

Click to see 3D model
Product Specification
Lear's MAK / MAS Series covers all components for high performance connection systems. More electrified, connected mobility starts with smarter solutions.
The MAK system starts with terminals at 0.5 up to 12 and includes related components with different shapes, cavities, mounting & locking styles, materials & codings. It delivers reliable solutions to transfer & protect signal and power distribution for the best performance throughout the vehicle.
