TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E00011399
Legacy Part Number
28584000001
Product Family
MAK

Other properties

Terminal Size [mm]
12
Application
High Current
Core Material
CuCrTiSi
Sealable
Sealed
Connection Technology
Ultrasonic Weld
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
4
Maximum Cable Cross section [mm²]
35

DOWNLOADS

2D Drawing

2D Drawing E00011399

DOWNLOAD

3D Cad

3D Cad E00011399

DOWNLOAD

Loading...

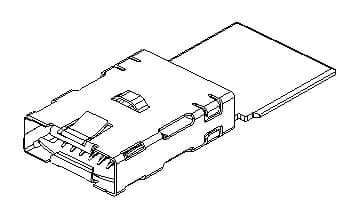

MAK 12 TERMINAL

Part Number: E00011399

Click to see 3D model

MAK 12 TERMINAL

Product Specification

Lear's MAK / MAS Series covers all components for high performance connection systems. More electrified, connected mobility starts with smarter solutions.

The MAK system starts with terminals at 0.5 up to 12 and includes related components with different shapes, cavities, mounting & locking styles, materials & codings. It delivers reliable solutions to transfer & protect signal and power distribution for the best performance throughout the vehicle.
