TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E22442500
- Legacy Part Number
- 29110000001
- Product Family
- MAK
Other properties
- Terminal Size [mm]
- 12
- Core Material
- Cu
- Plating Material
- Ag
- Sealable
- Unsealed
- Connection Technology
- Ultrasonic Weld
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 4
- Maximum Cable Cross section [mm²]
- 35

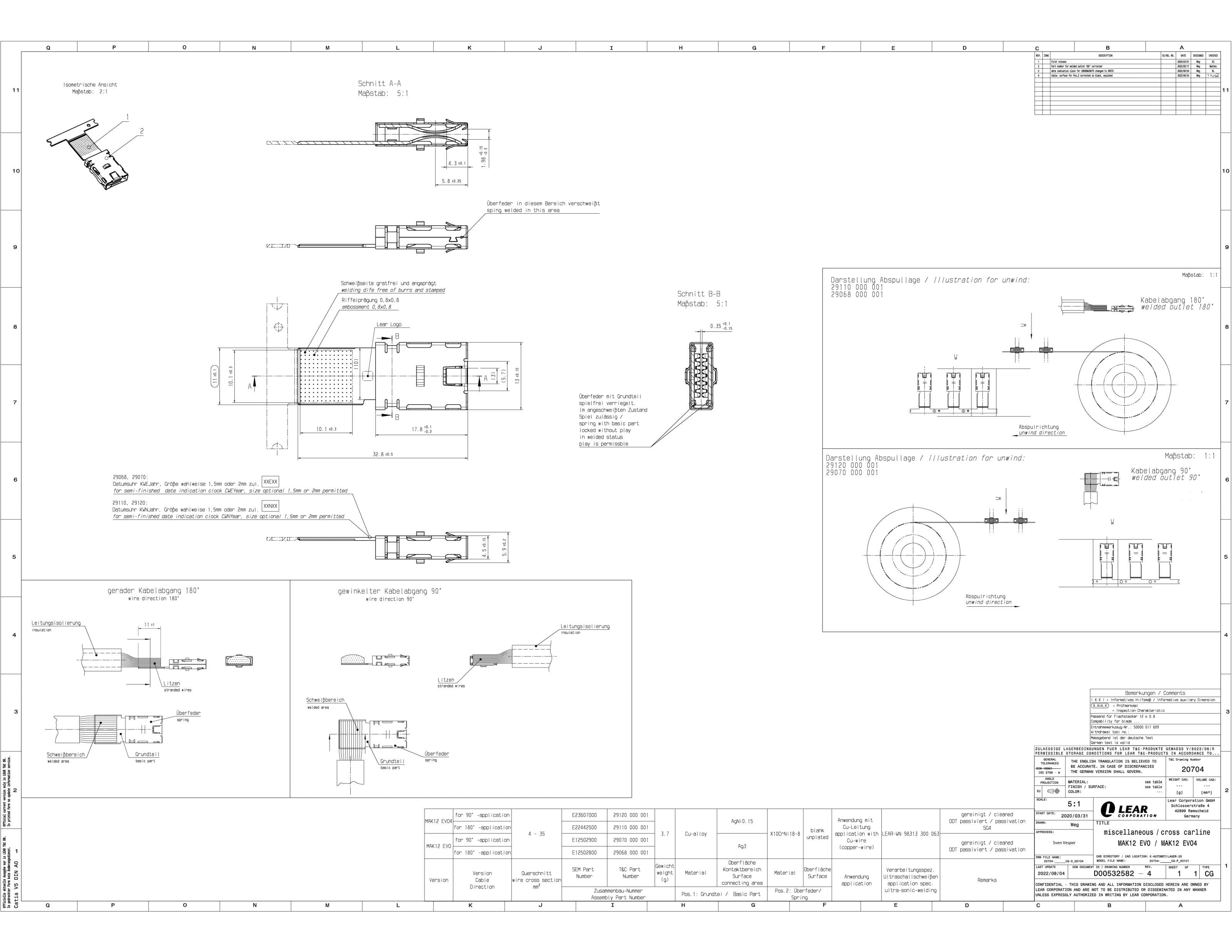

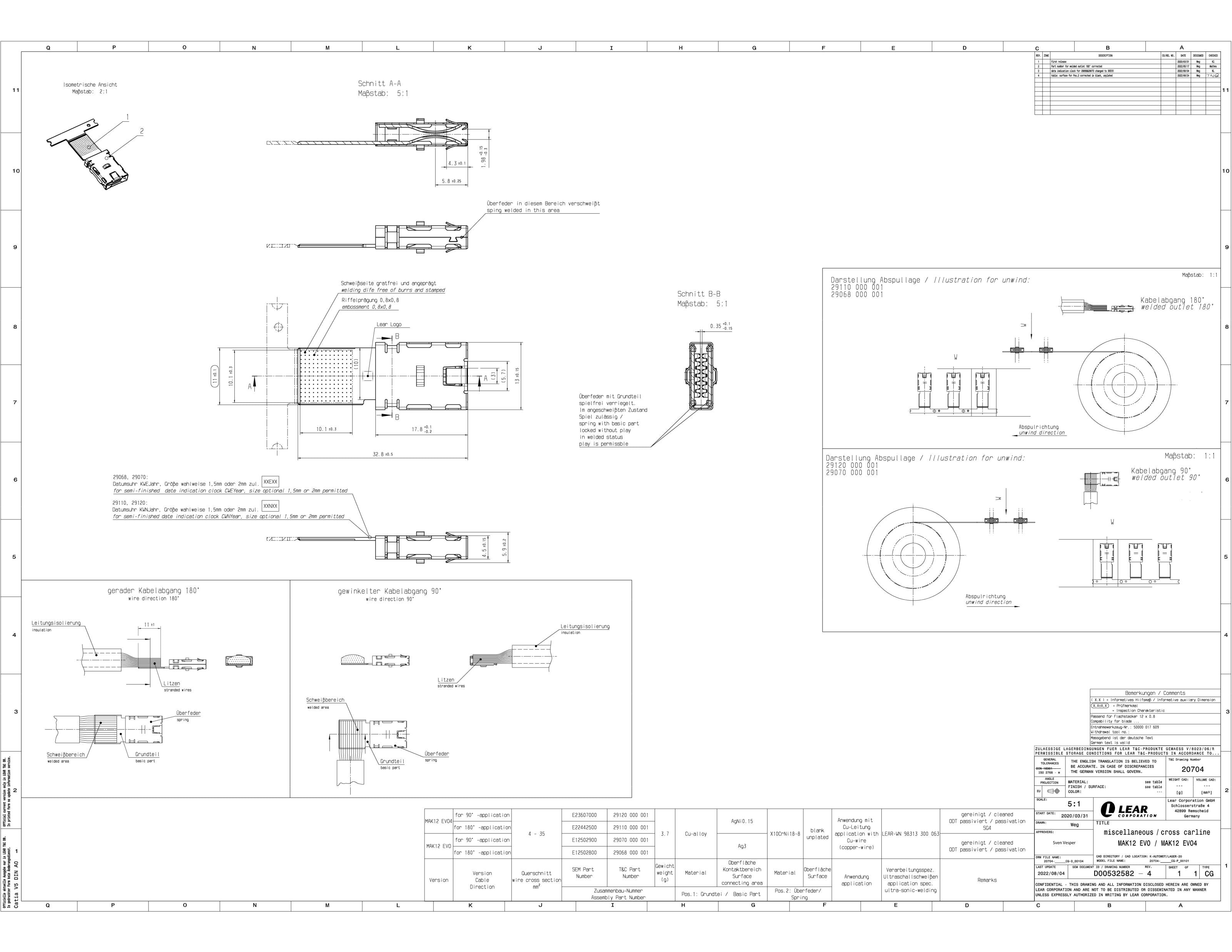

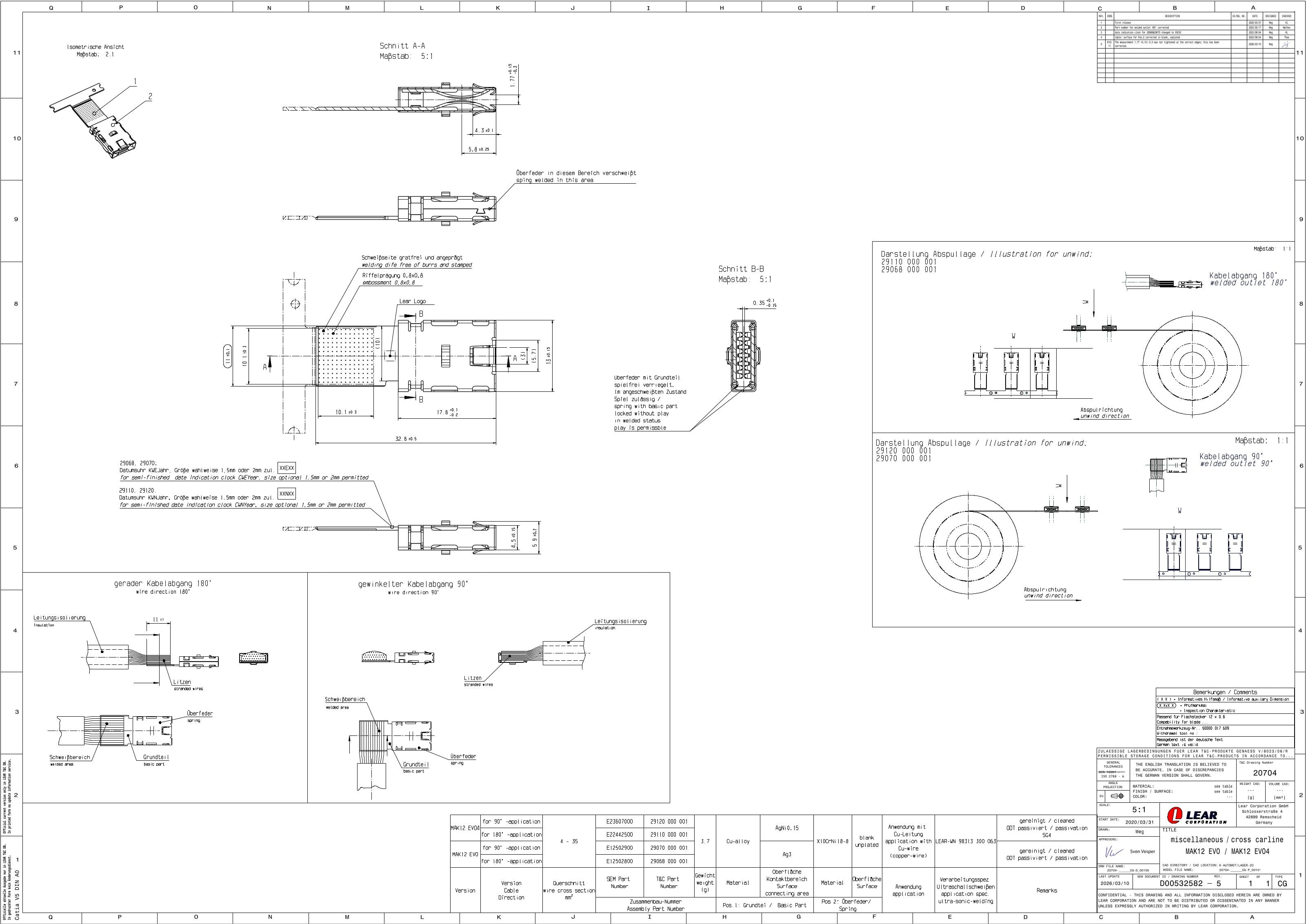

2D Drawing
2D Drawing E22442500
MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm²
32025Y2W6
Product Category:
TERMINALSLegacy Part Number:
28563306710Plating Material
Ag
Minimum Cable Cross section [mm²]
4
Max Temp (C)
–
MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm²
E02717600
Product Category:
TERMINALSLegacy Part Number:
28499000001Plating Material
Ag
Minimum Cable Cross section [mm²]
4
Max Temp (C)
–
MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm²
E02717800
Product Category:
TERMINALSLegacy Part Number:
28563000001Plating Material
Ag
Minimum Cable Cross section [mm²]
4
Max Temp (C)
–
MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 10-35mm²
E10815900
Product Category:
TERMINALSLegacy Part Number:
28583000003Plating Material
Ag
Minimum Cable Cross section [mm²]
10
Max Temp (C)
–
MAK 12 Receptacle Sealed Ultrasonic Terminal, Sn, 4-35mm²
E02717900
Product Category:
TERMINALSLegacy Part Number:
28563000002Plating Material
Sn
Minimum Cable Cross section [mm²]
4
Max Temp (C)
+130
MAK 12 Receptacle Sealed Ultrasonic Terminal, Sn, 4-35mm²
32025Y1CK
Product Category:
TERMINALSLegacy Part Number:
28499306719Plating Material
Sn
Minimum Cable Cross section [mm²]
4
Max Temp (C)
–
E22442500 - MAK 12 Receptacle Unsealed Ultrasonic Terminal, Ag, 4-35mm²
Part Number: E22442500
Product Specification
Previously cataloged under part number 29110000001.
Lear's MAK / MAS Series covers all components for high performance connection systems. More electrified, connected mobility starts with smarter solutions.
The MAK system starts with terminals at 0.5 up to 12 and includes related components with different shapes, cavities, mounting & locking styles, materials & codings. It delivers reliable solutions to transfer & protect signal and power distribution for the best performance throughout the vehicle.
Part Number: E22442500.
Lear Connection Systems is offering other variants of this product:
- MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm² (32025Y2W6)
- MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm² (E02717600)
- MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 4-35mm² (E02717800)
- MAK 12 Receptacle Sealed Ultrasonic Terminal, Ag, 10-35mm² (E10815900)
- MAK 12 Receptacle Sealed Ultrasonic Terminal, Sn, 4-35mm² (E02717900)
- MAK 12 Receptacle Sealed Ultrasonic Terminal, Sn, 4-35mm² (32025Y1CK)
