TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E27255700
- Product Family
- HC
Other properties
- Terminal Size [mm]
- 14.5
- Application
- High Current
- Core Material
- Cu
- Plating Material
- Ag
- Connection Technology
- Ultrasonic Weld
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 35
- Maximum Cable Cross section [mm²]
- 70
- Min Temp (C)
- -40
- Max Temp (C)
- +175
DOWNLOADS

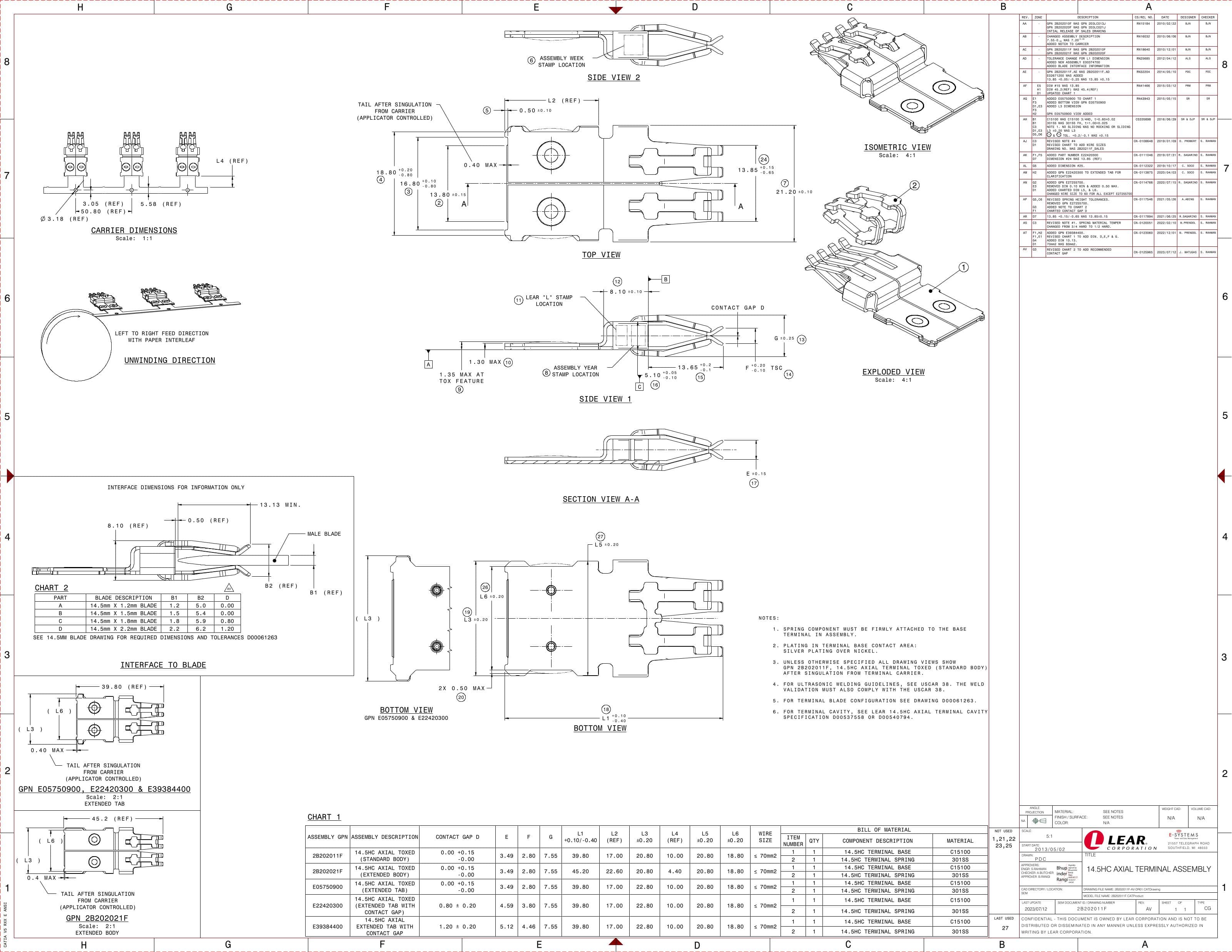

2D Drawing
2D Drawing E27255700
