TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E02671200
- Product Family
- HC
Other properties
- Terminal Size [mm]
- 14.5
- Application
- High Current
- Core Material
- Cu
- Plating Material
- Ag
- Sealable
- Unsealed
- Connection Technology
- Ultrasonic Weld
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 35
- Maximum Cable Cross section [mm²]
- 50
- Min Temp (C)
- -40
- Max Temp (C)
- +175
- RoHS
- YES
DOWNLOADS
Loading...

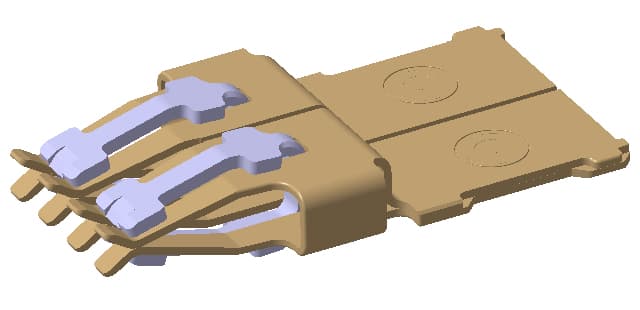

HC 14.5 TERMINAL
Part Number: E02671200
Click to see 3D model
Product Specification
Lear’s High Current Connection Systems are developed to meet the demanding conditions of high power automotive applications and enhance their performance. Mainly used in Electric Vehicles and 48volt systems.
Our terminal and connector innovations combined with Lear’s system-level expertise results in an uncompromised solution for high power systems, delivered in the smallest packaged environment. The HC6.3 and HC14.5 give our cusotmers the abilitiy to transfer more current with reduced tab size compared to standard automotive terminal systems, Lear also offer a wide varity of flexible wire connections.
