TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 32025Y1UP
- Legacy Part Number
- 8398306009
- Product Family
- GSK
Other properties
- Terminal Size [mm]
- 0.5
- Core Material
- CuCrTiSi
- Plating Material
- Not Plated
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 4
- Maximum Cable Cross section [mm²]
- 6
2D Drawing
2D Drawing 32025Y1UP

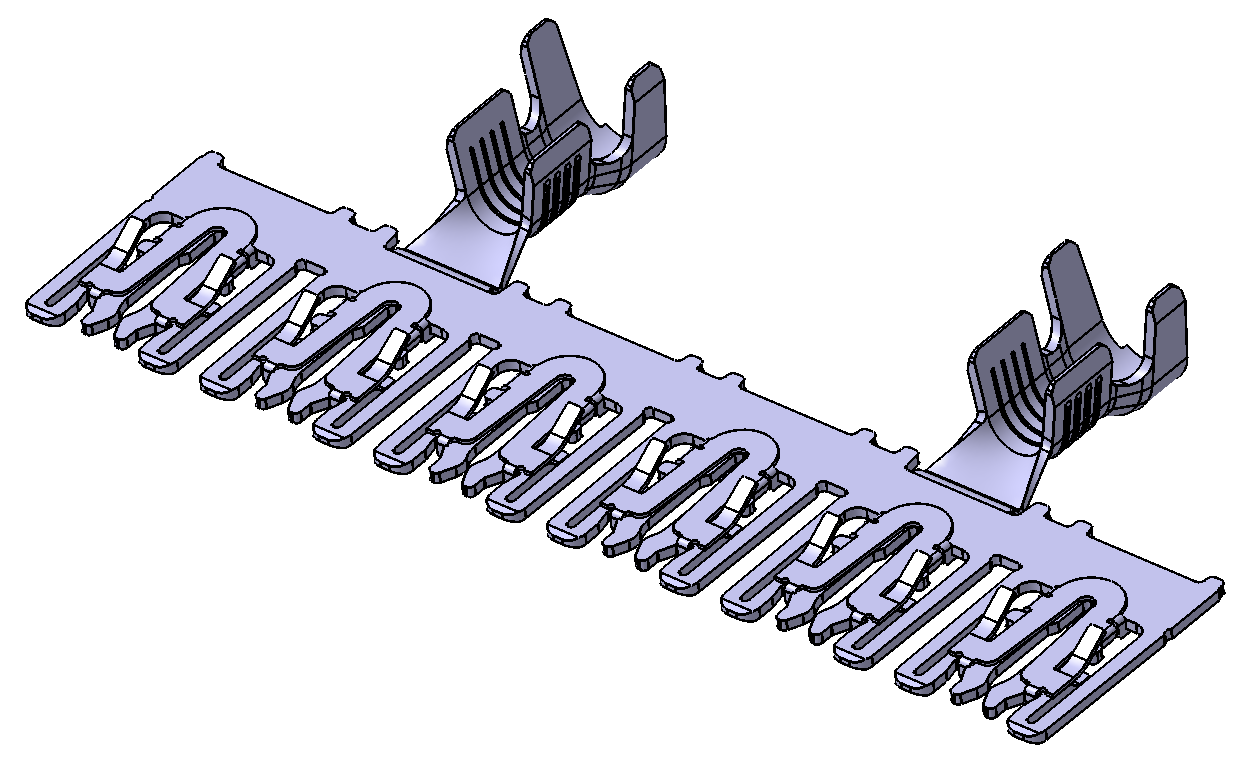

32025Y1UP - GSK 0.5 Receptacle Unsealed Crimp Terminal, Not Plated, 4-6mm²
Part Number: 32025Y1UP
Product Specification
Previously cataloged under part number 8398306009.
Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
Part Number: 32025Y1UP.
