TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 3202633P9
- Legacy Part Number
- 26930306009
- Product Family
- GSK
Other properties
- Terminal Size [mm]
- 0.5
- Core Material
- CuCrTiSi
- Plating Material
- Not Plated
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.35
- Maximum Cable Cross section [mm²]
- 1
DOWNLOADS

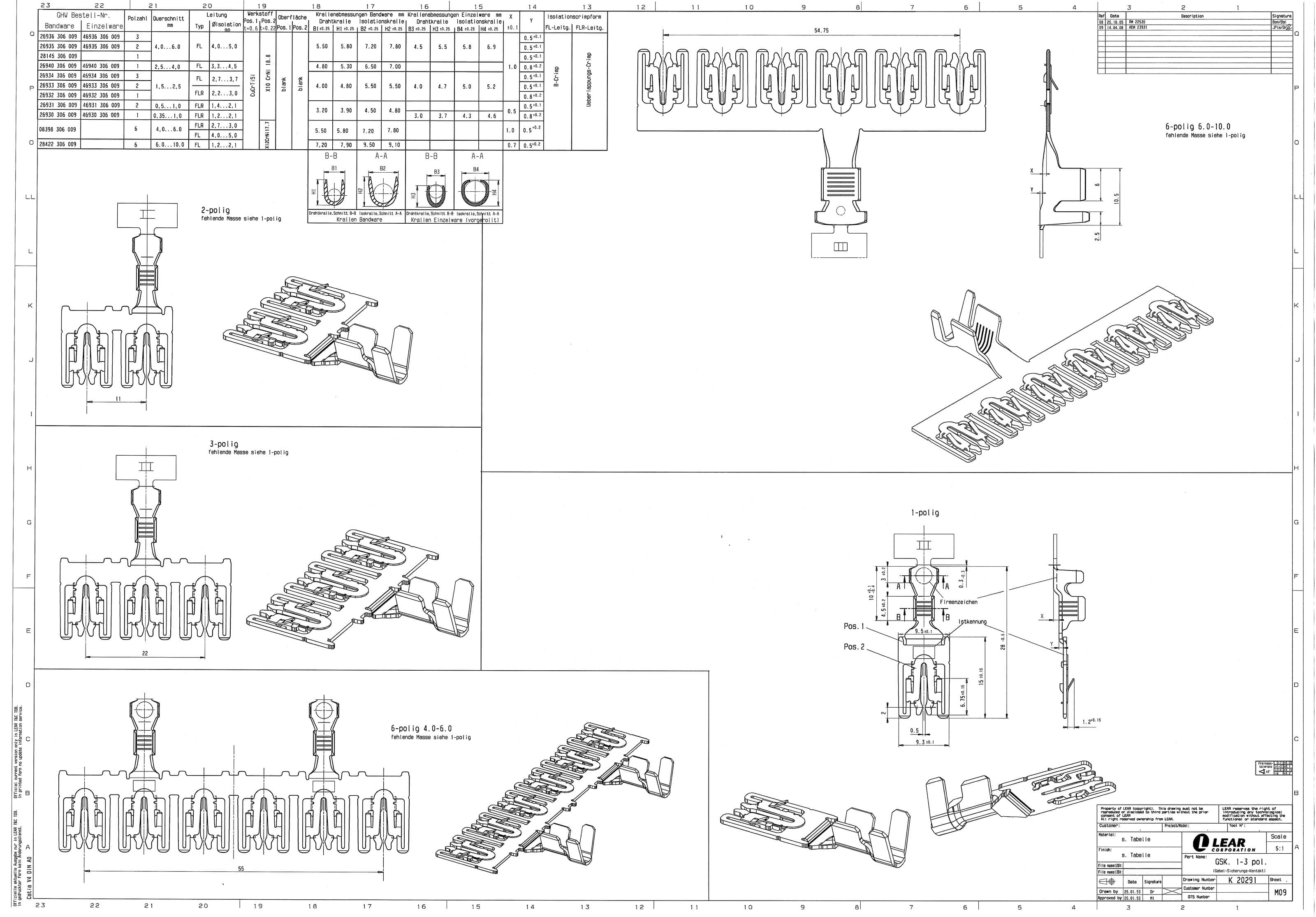

2D Drawing
2D Drawing 3202633P9

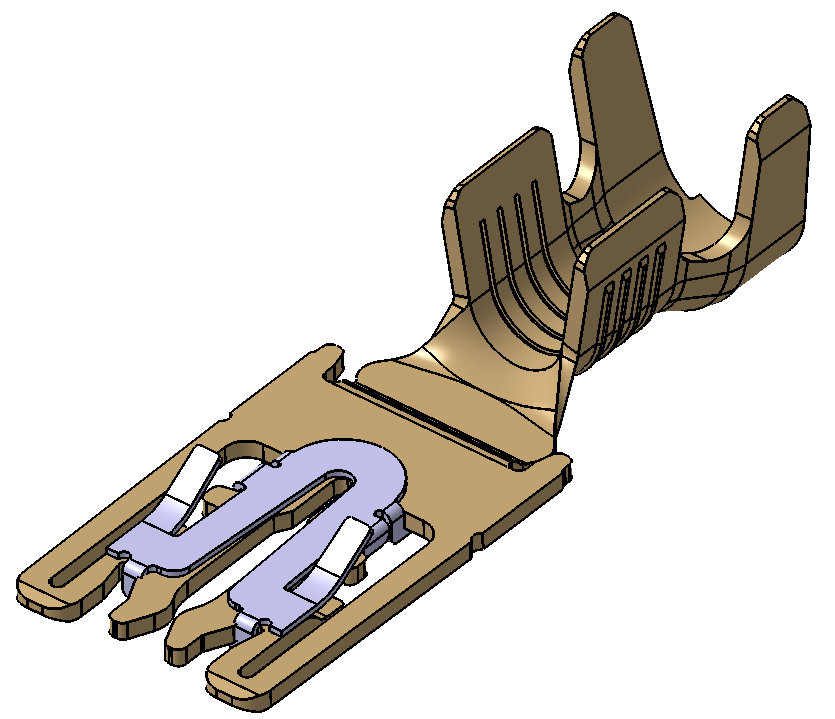

3202633P9 - GSK 1-WAY FUSE TERMINAL
Part Number: 3202633P9
Product Specification
Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
Part Number: 3202633P9.
