TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 3202612C3
- Legacy Part Number
- 26252331178
- Product Family
- FLACHSTECKER
Other properties
- Terminal Size [mm]
- 2.8
- Core Material
- CuFe
- Plating Material
- Sn
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Tab
- Minimum Cable Cross section [mm²]
- 0.5
- Maximum Cable Cross section [mm²]
- 1
FLACHSTECKER 2.8 Tab Sealed Crimp Terminal, Not Plated, 1.5-2.5mm²
320263825
Product Category:
TERMINALSLegacy Part Number:
26255331178Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
FLACHSTECKER 2.8 Receptacle Unsealed Crimp Terminal, Not Plated, 1.5mm²
320272016
Product Category:
TERMINALSLegacy Part Number:
26254331178Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
1.5
FLACHSTECKER 2.8 Tab Sealed Crimp Terminal, Not Plated, 0.5-1mm²
320272024
Product Category:
TERMINALSLegacy Part Number:
26253331178Terminal Size [mm]
2.8
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
Loading...
3202612C3 - FLACHSTECKER 2.8 Tab Sealed Crimp Terminal, Sn, 0.5-1mm²
Part Number: 3202612C3

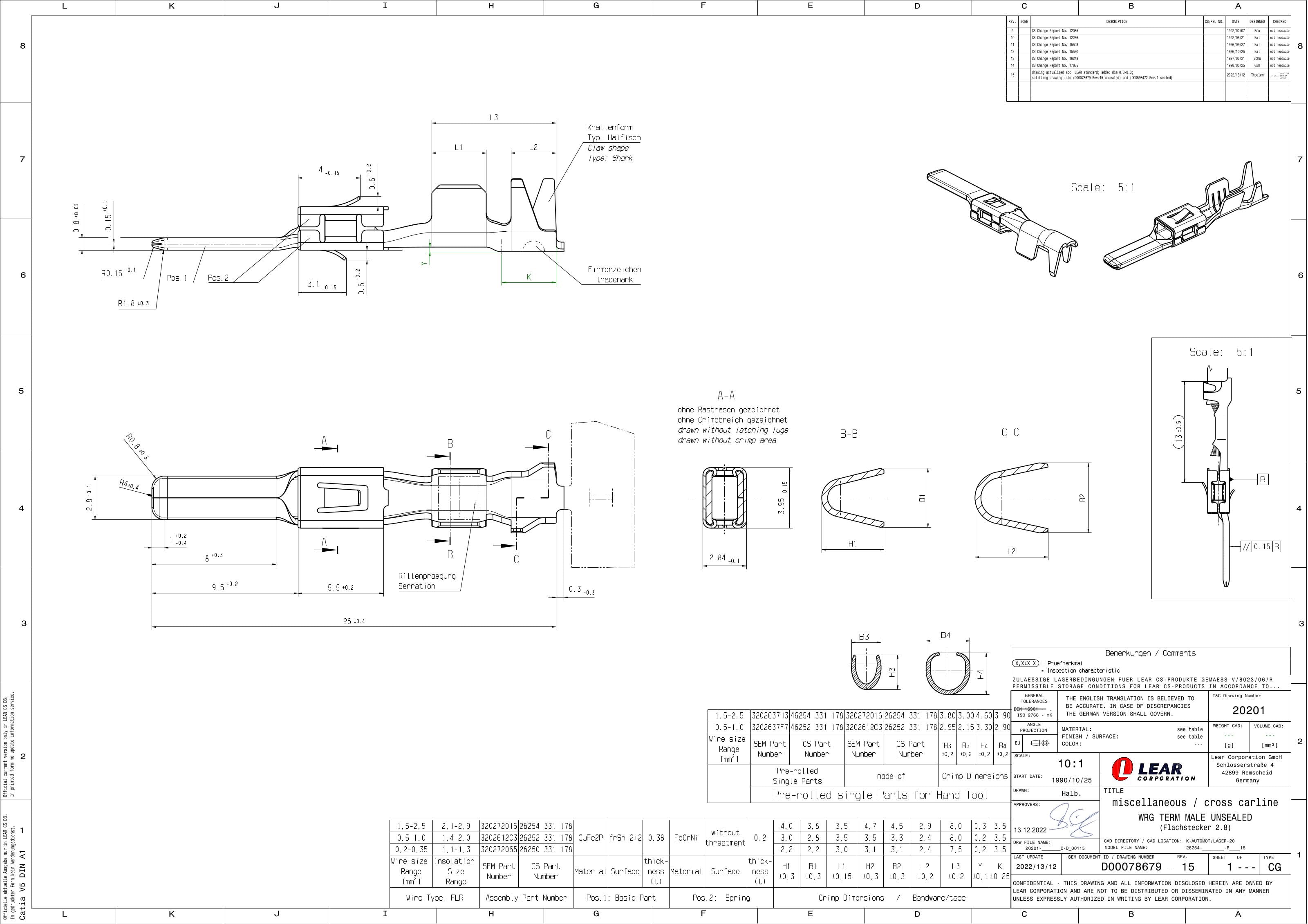

Click to see 3D model
Product Specification
Previously cataloged under part number 26252331178.
Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
Part Number: 3202612C3.
Lear Connection Systems is offering other variants of this product:
