TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
320263825
Legacy Part Number
26255331178
Product Family
FLACHSTECKER

Other properties

Terminal Size [mm]
2.8
Core Material
CuFe
Plating Material
Not Plated
Sealable
Sealed
Connection Technology
Standard Crimp
Terminal Type
Tab
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5

DOWNLOADS

2D Drawing

2D Drawing 320263825

DOWNLOAD

3D PDF

3D PDF 320263825

DOWNLOAD

3D Cad

3D Cad 320263825

DOWNLOAD

Loading...

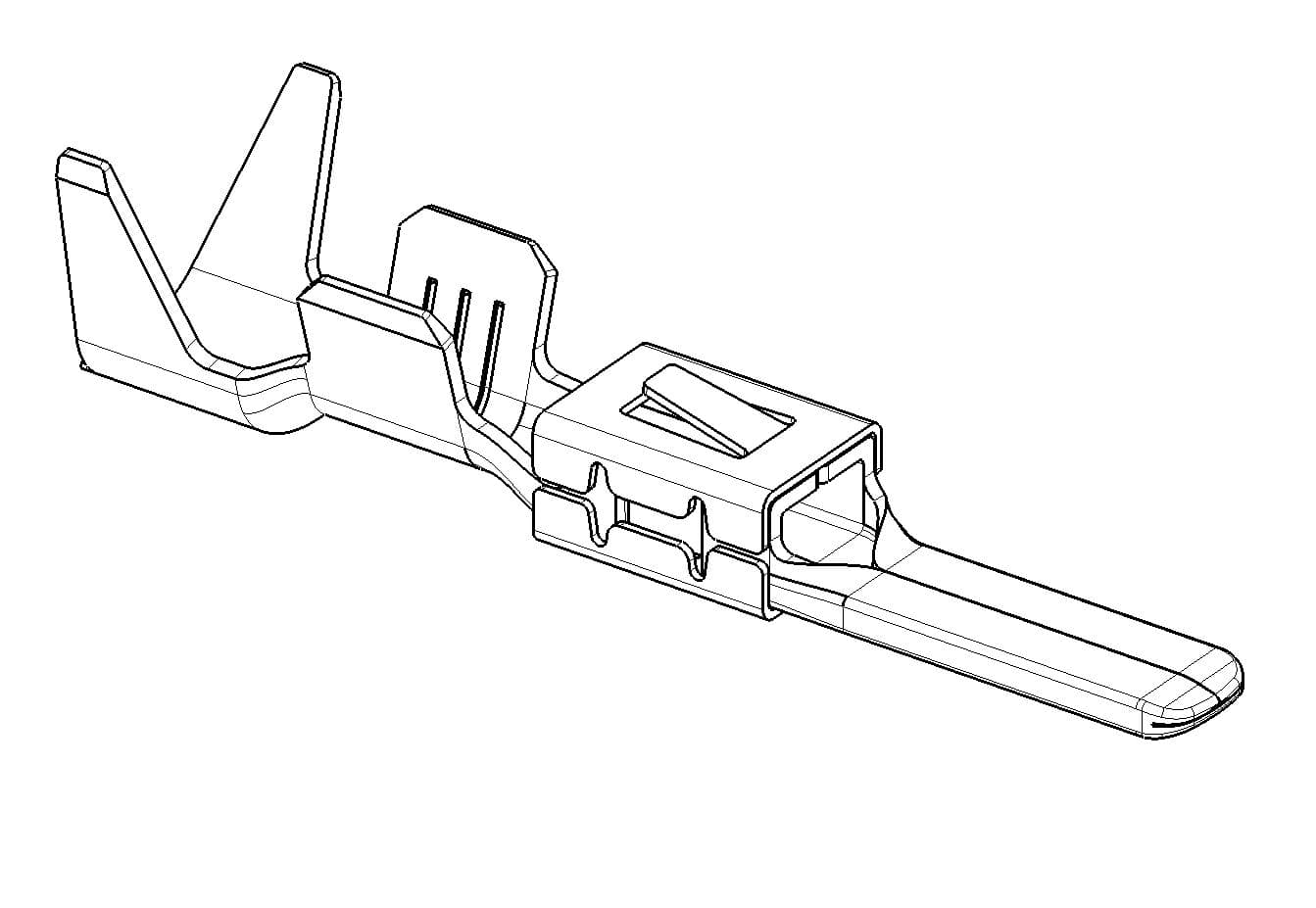

FLAT 2.8 TERMINAL

Part Number: 320263825

Click to see 3D model

FLAT 2.8 TERMINAL

Product Specification

Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
