TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E00225700
Legacy Part Number
6029331142
Product Family
DFK 3

Other properties

Terminal Size [mm]
4.8, 6.3
Application
Junction Boxes, PCB
Core Material
CuFe
Plating Material
Ag
Sealable
Unsealed
Connection Technology
PCB Soldered
Terminal Type
Receptacle

DOWNLOADS

2D Drawing

2D Drawing E00225700

DOWNLOAD

3D PDF

3D PDF E00225700

DOWNLOAD

3D Cad

3D Cad E00225700

DOWNLOAD

Loading...

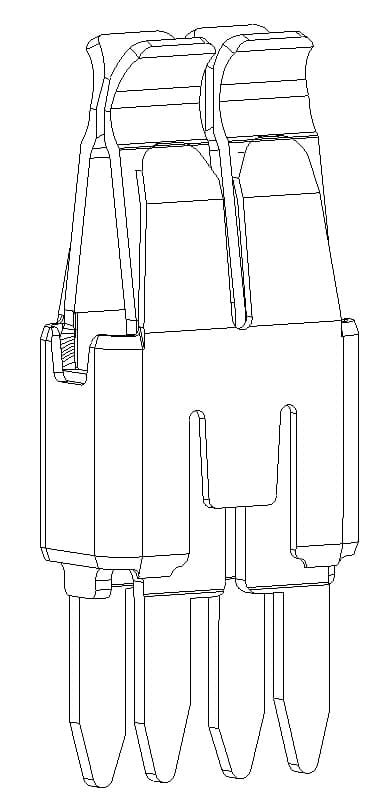

DFK 4.8 (6.3) PCB TERMINAL

Part Number: E00225700

Click to see 3D model

DFK 4.8 (6.3) PCB TERMINAL

Product Specification

Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
