TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 318900834
- Legacy Part Number
- 26029331142
- Product Family
- DFK 3
Other properties
- Terminal Size [mm]
- 4.8, 6.3
- Application
- Junction Boxes, PCB
- Core Material
- CuFe
- Plating Material
- Ag
- Sealable
- Unsealed
- Connection Technology
- PCB Soldered
- Terminal Type
- Receptacle
Loading...
318900834 - 4.8/6.3 Receptacle PCB Terminal, Ag
Part Number: 318900834

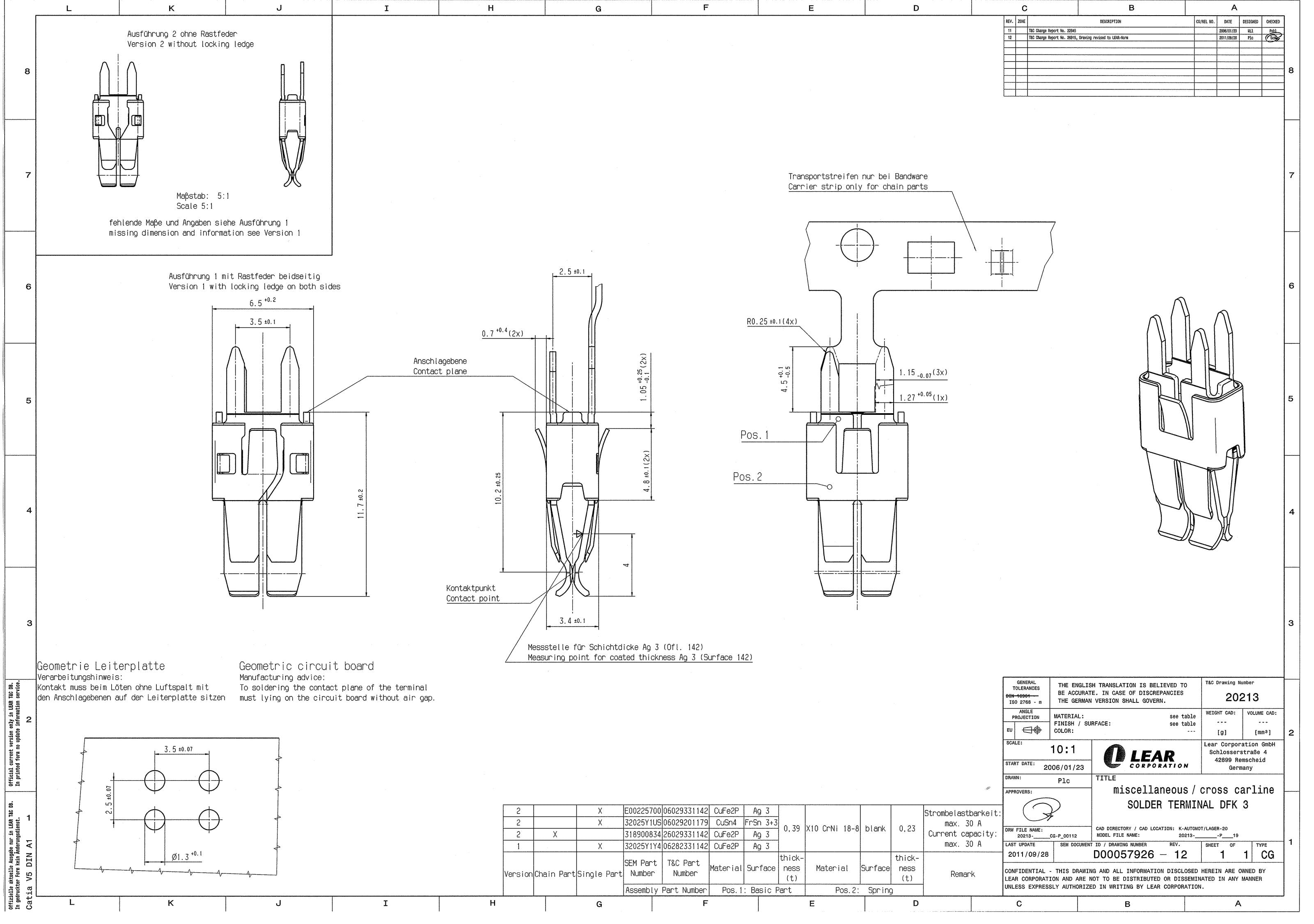

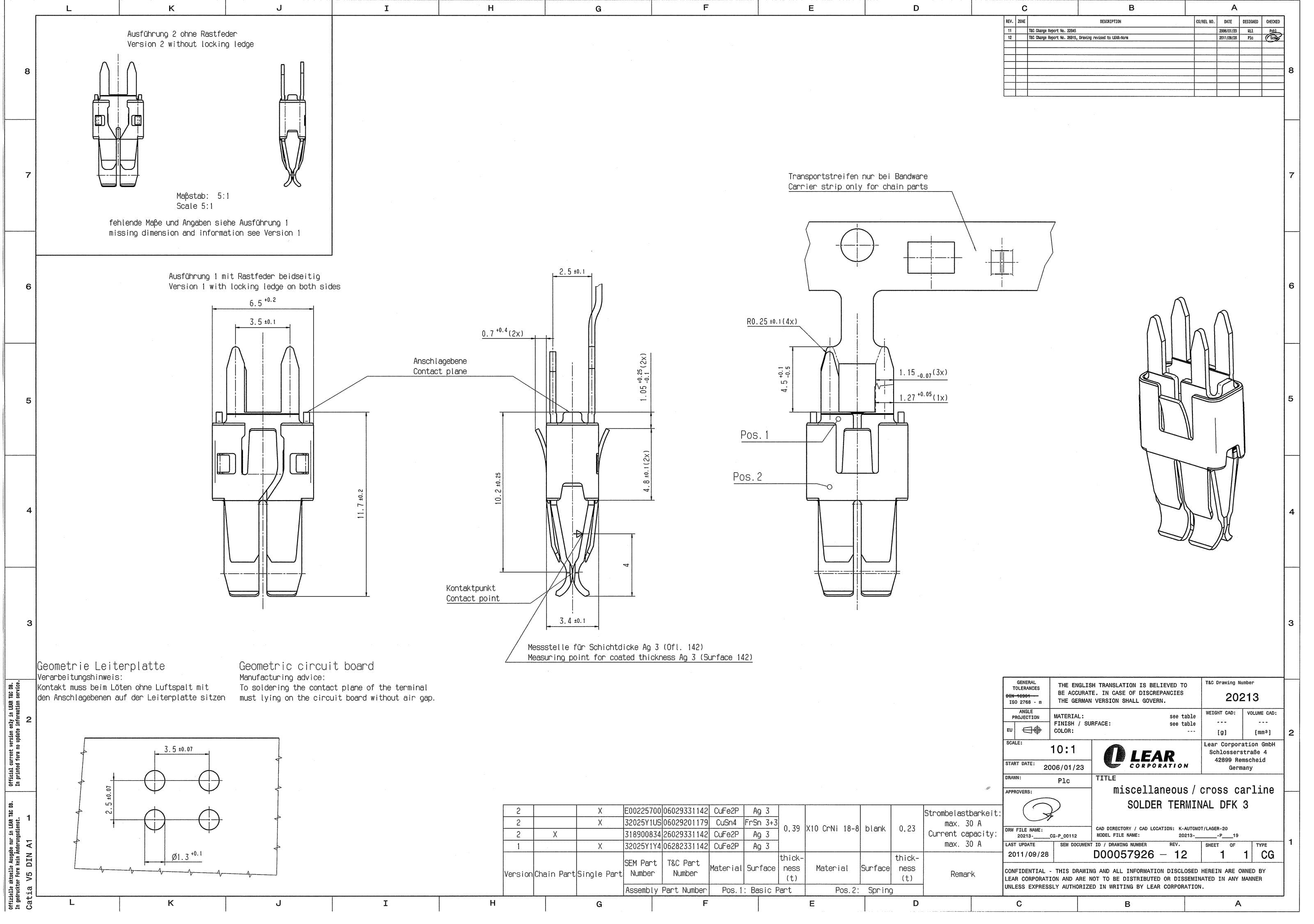

Click to see 3D model
Product Specification
Previously cataloged under part number 26029331142.
Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
Part Number: 318900834.
