TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E58830500
- Product Family
- COS
Other properties
- Terminal Size [mm]
- 1.2
- Application
- Signal
- Core Material
- CuZn
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Tab
- Minimum Cable Cross section [mm²]
- 1
- Maximum Cable Cross section [mm²]
- 1.5
- Min Temp (C)
- -40
- Max Temp (C)
- +130

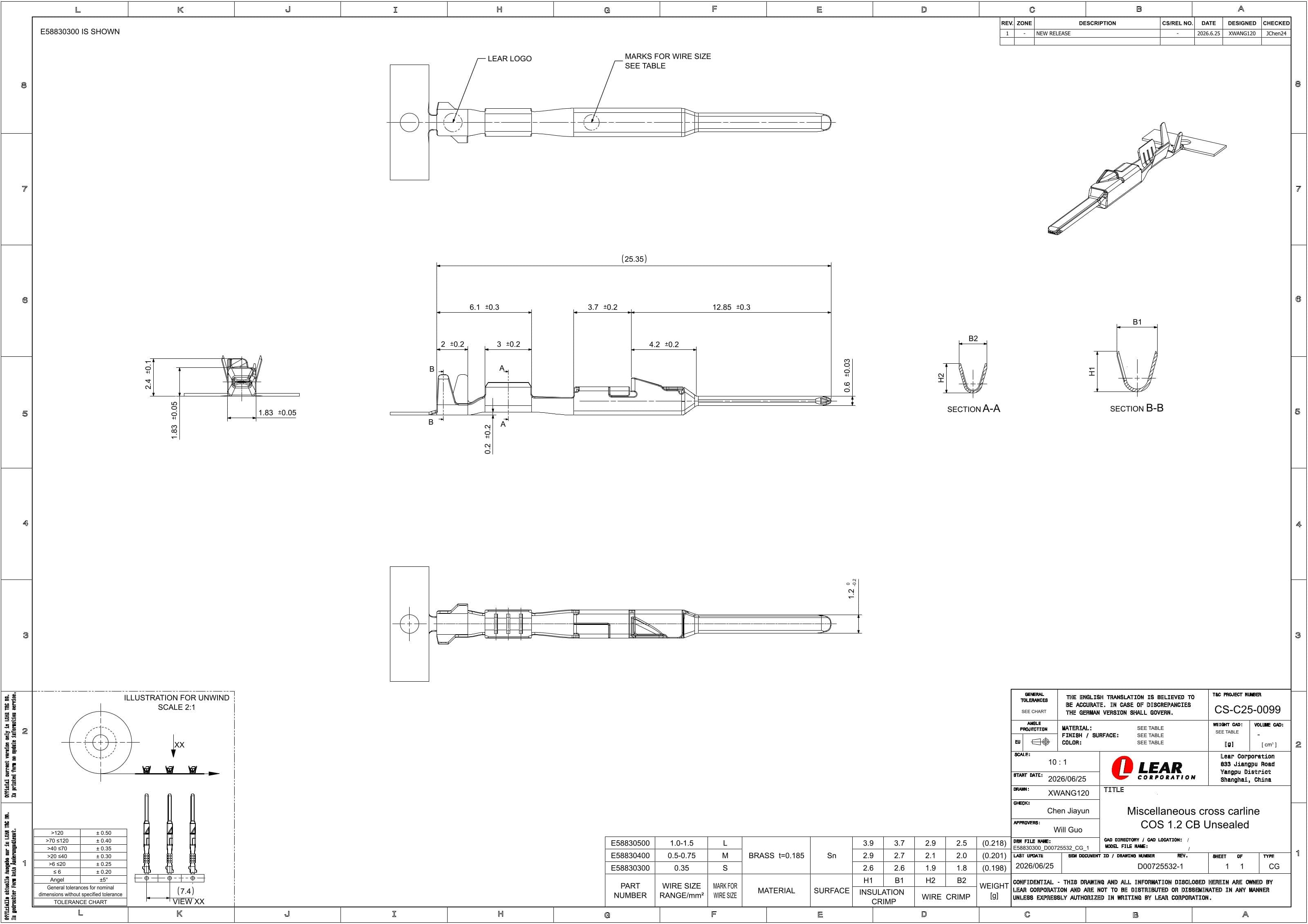

2D Drawing
2D Drawing E58830500
COS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.35mm²
E58830300
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.35
COS 1.2 Tab Unsealed Crimp Terminal, Sn, 0.5-0.75mm²
E58830400
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.2
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
0.75
E58830500 - COS 1.2 Tab Unsealed Crimp Terminal, Sn, 1-1.5mm²
Part Number: E58830500
Product Specification
An unsealed tab terminal belonging to the COS product family, categorized under terminals. Designed in the 1.2 mm terminal size, it is suited for crimp termination applications within its product range.
Rated for an operating temperature range of −40 to +130 °C.
Part Number: E58830500.
Lear Connection Systems is offering other variants of this product:
