TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- E57161900
- Product Family
- COK
Other properties
- Terminal Size [mm]
- 1.5
- Core Material
- CuNiSi
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Receptacle
- Minimum Cable Cross section [mm²]
- 0.75
- Maximum Cable Cross section [mm²]
- 1
- Min Temp (C)
- -40
- Max Temp (C)
- +130

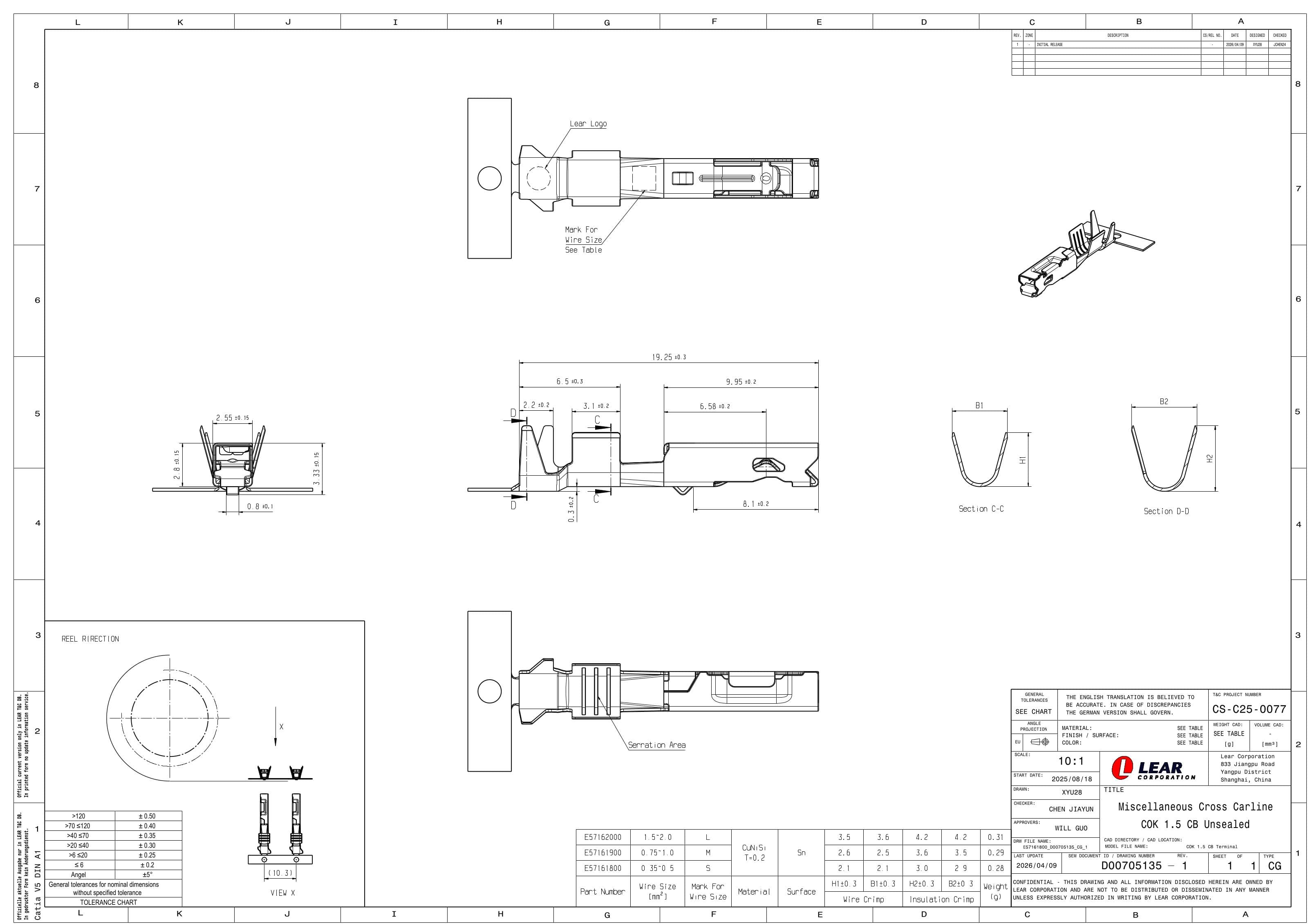

2D Drawing
2D Drawing E57161900
COK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.35-0.5mm²
E57161800
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.35
Maximum Cable Cross section [mm²]
0.5
COK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 1.25-2mm²
E57162000
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
1.25
Maximum Cable Cross section [mm²]
2
E57161900 - COK 1.5 Receptacle Unsealed Crimp Terminal, Sn, 0.75-1mm²
Part Number: E57161900
Product Specification
An unsealed receptacle terminal belonging to the COK product family, sized at 1.5 mm. Categorized within the Terminals product category, it accepts crimp termination and is designed for use with conductors in the 0.75–1 mm² cross-section range, with a tin (Sn) plating on the contact surface.
Rated for an operating temperature range of –40 °C to +130 °C, making it suitable for under-hood and general automotive wiring environments subject to thermal cycling.
Part Number: E57161900.
