TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 3202603V9
- Legacy Part Number
- 28093330185
- Product Family
- AFS
Other properties
- Terminal Size [mm]
- 4.8
- Core Material
- Cu
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Tab
- Minimum Cable Cross section [mm²]
- 4
- Maximum Cable Cross section [mm²]
- 6
- Min Temp (C)
- -40
- Max Temp (C)
- +130
AFS 4.8 Tab Sealed Crimp Terminal, Ag, 4-6mm²
3202636L5
Product Category:
TERMINALSLegacy Part Number:
26978306710Terminal Size [mm]
4.8
Sealable
Sealed
Core Material
Cu
AFS 4.8 Tab Sealed Crimp Terminal, Sn, 4-6mm²
3202636K7
Product Category:
TERMINALSLegacy Part Number:
26978306179Terminal Size [mm]
4.8
Sealable
Sealed
Core Material
Cu
AFS Tab Sealed Crimp Terminal, Sn, 0.5-1mm²
3202636Q4
Product Category:
TERMINALSLegacy Part Number:
26687330185Terminal Size [mm]
4.8
Sealable
Sealed
Core Material
CuSn
AFS 4.8 Tab Sealed Crimp Terminal, Sn, 1.5-2.5mm²
3202636T5
Product Category:
TERMINALSLegacy Part Number:
26691330185Terminal Size [mm]
4.8
Sealable
Sealed
Core Material
CuSn
AFS 4.8 Tab Sealed Crimp Terminal, Sn, 2.5-4mm²
3202636U3
Product Category:
TERMINALSLegacy Part Number:
26693330185Terminal Size [mm]
4.8
Sealable
Sealed
Core Material
CuSn
AFS Tab Sealed Crimp Terminal, Ag, 0.5-1mm²
3202636R2
Product Category:
TERMINALSLegacy Part Number:
26687330710Terminal Size [mm]
–
Sealable
Sealed
Core Material
CuSn
AFS Tab Sealed Crimp Terminal, Ag, 1.5-2.5mm²
32025Y2UL
Product Category:
TERMINALSLegacy Part Number:
26691330710Terminal Size [mm]
–
Sealable
Sealed
Core Material
CuSn
AFS Tab Sealed Crimp Terminal, Sn, 0.5-1mm²
32025Y2UK
Product Category:
TERMINALSLegacy Part Number:
26687330179Terminal Size [mm]
–
Sealable
Sealed
Core Material
CuSn
AFS Tab Sealed Crimp Terminal, Sn, 1.5-2.5mm²
3202636S7
Product Category:
TERMINALSLegacy Part Number:
26691330179Terminal Size [mm]
–
Sealable
Sealed
Core Material
CuSn
AFS Tab Unsealed Crimp Terminal, Sn, 1.5-2.5mm²
E17923700
Product Category:
TERMINALSLegacy Part Number:
–Terminal Size [mm]
–
Sealable
Unsealed
Core Material
Cu
Loading...
3202603V9 - AFS 4.8 Tab Unsealed Crimp Terminal, Sn, 4-6mm²
Part Number: 3202603V9

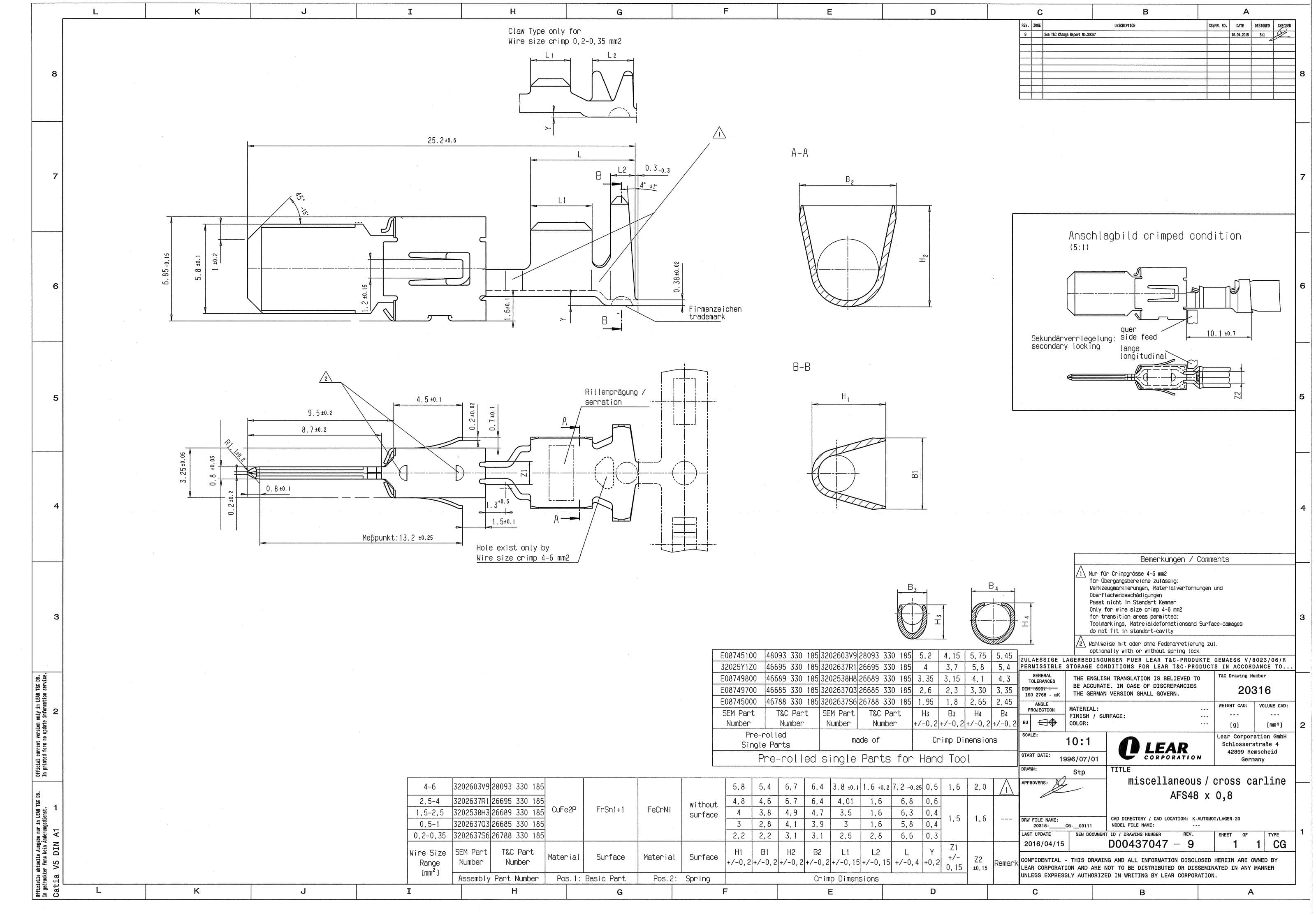

Click to see 3D model
Product Specification
Previously cataloged under part number 28093330185.
Lear's AFS Terminal Series covers the range of 1.5 mm; 2.8 mm; 4.8 - 6.3 mm blades. lts high performance copper alloy body provides an excellent electrical performance, while the stainless steel spring guarantees superior contact reliability. lts compact design, low mating efforts and good terminal retention allow high density connectors.
Part Number: 3202603V9, compatible with: 1-968050-1.
Lear Connection Systems is offering other variants of this product:
- AFS 4.8 Tab Sealed Crimp Terminal, Ag, 4-6mm² (3202636L5)
- AFS 4.8 Tab Sealed Crimp Terminal, Sn, 4-6mm² (3202636K7)
- AFS Tab Sealed Crimp Terminal, Sn, 0.5-1mm² (3202636Q4)
- AFS 4.8 Tab Sealed Crimp Terminal, Sn, 1.5-2.5mm² (3202636T5)
- AFS 4.8 Tab Sealed Crimp Terminal, Sn, 2.5-4mm² (3202636U3)
- AFS Tab Sealed Crimp Terminal, Ag, 0.5-1mm² (3202636R2)
- AFS Tab Sealed Crimp Terminal, Ag, 1.5-2.5mm² (32025Y2UL)
- AFS Tab Sealed Crimp Terminal, Sn, 0.5-1mm² (32025Y2UK)
- AFS Tab Sealed Crimp Terminal, Sn, 1.5-2.5mm² (3202636S7)
- AFS Tab Unsealed Crimp Terminal, Sn, 1.5-2.5mm² (E17923700)
