TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
32025Y1VX
Legacy Part Number
46657330185
Product Family
AFS

Other properties

Terminal Size [mm]
2.8
Core Material
Cu
Plating Material
Sn
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Tab
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5

DOWNLOADS

2D Drawing

2D Drawing 32025Y1VX

DOWNLOAD

3D PDF

3D PDF 32025Y1VX

DOWNLOAD

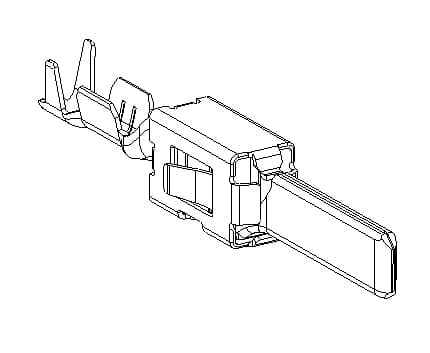

AFS 2.8 TERMINAL

Part Number: 32025Y1VX

AFS 2.8 TERMINAL

Product Specification

Lear's AFS Terminal Series covers the range of 1.5 mm; 2.8 mm; 4.8 - 6.3 mm blades. lts high performance copper alloy body provides an excellent electrical performance, while the stainless steel spring guarantees superior contact reliability. lts compact design, low mating efforts and good terminal retention allow high density connectors.
