TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 3202637U2
- Legacy Part Number
- 26674201702
- Product Family
- AFS
Other properties
- Core Material
- CuSn
- Plating Material
- Au
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Tab
- Minimum Cable Cross section [mm²]
- 0.5
- Maximum Cable Cross section [mm²]
- 1
AFS Tab Unsealed Crimp Terminal, Au, 1.5-2.5mm²
32025Y2U6
Product Category:
TERMINALSLegacy Part Number:
26657201702Terminal Size [mm]
–
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
AFS Tab Sealed Crimp Terminal, Au, 0.2-0.35mm²
3202637T4
Product Category:
TERMINALSLegacy Part Number:
26673201702Terminal Size [mm]
–
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35

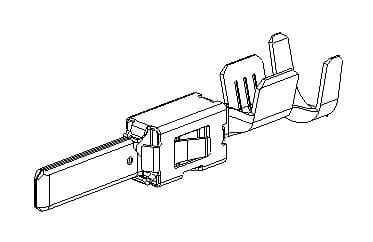

AFS Tab Unsealed Crimp Terminal, Au, 0.5-1mm²
3202637X5
Product Category:
TERMINALSLegacy Part Number:
26659201702Terminal Size [mm]
–
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
Loading...

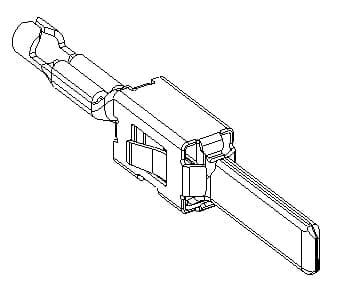

3202637U2 - AFS Tab Sealed Crimp Terminal, Au, 0.5-1mm²
Part Number: 3202637U2
Click to see 3D model
Product Specification
Previously cataloged under part number 26674201702.
Lear's AFS Terminal Series covers the range of 1.5 mm; 2.8 mm; 4.8 - 6.3 mm blades. lts high performance copper alloy body provides an excellent electrical performance, while the stainless steel spring guarantees superior contact reliability. lts compact design, low mating efforts and good terminal retention allow high density connectors.
Part Number: 3202637U2, compatible with: 19643003, 19629153.
Lear Connection Systems is offering other variants of this product:
