TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 3202637T4
- Legacy Part Number
- 26673201702
- Product Family
- AFS
Other properties
- Core Material
- CuSn
- Plating Material
- Au
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Tab
- Minimum Cable Cross section [mm²]
- 0.2
- Maximum Cable Cross section [mm²]
- 0.35

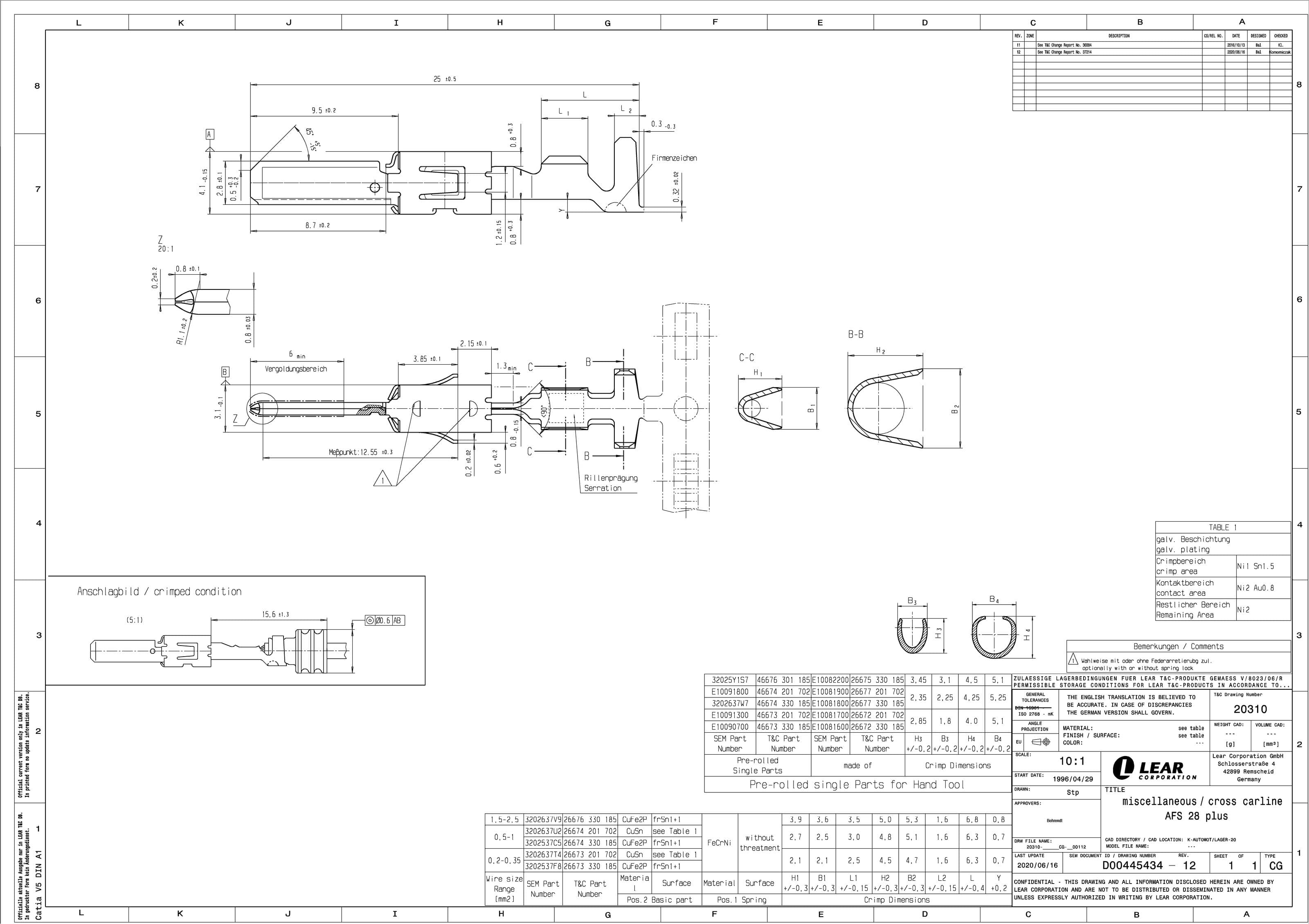

2D Drawing
2D Drawing 3202637T4
3D PDF
3D PDF 3202637T4
3D Cad
3D Cad 3202637T4
AFS Tab Sealed Crimp Terminal, Au, 0.5-1mm²
3202637U2
Product Category:
TERMINALSLegacy Part Number:
26674201702Sealable
Sealed
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFS Tab Unsealed Crimp Terminal, Au, 0.5-1mm²
3202637X5
Product Category:
TERMINALSLegacy Part Number:
26659201702Sealable
Unsealed
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFS Tab Unsealed Crimp Terminal, Au, 1.5-2.5mm²
32025Y2U6
Product Category:
TERMINALSLegacy Part Number:
26657201702Sealable
Unsealed
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5
3202637T4 - AFS Tab Sealed Crimp Terminal, Au, 0.2-0.35mm²
Part Number: 3202637T4
Click to see 3D model
Product Specification
Previously cataloged under part number 26673201702.
The AFS tab terminal is made of bronze (copper-tin alloy, CuSn) with gold plating in the contact area.
It uses a standard crimp cable connection for sealed applications, accepting cable cross-sections from 0.2 mm² to 0.35 mm².
Part Number: 3202637T4.
This product requires other components for a fully functional assembly configuration:
Lear Connection Systems is offering other variants of this product:
