TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 320250A86
- Legacy Part Number
- 26589330185
- Product Family
- AFS
Other properties
- Core Material
- Cu
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Tab
- Minimum Cable Cross section [mm²]
- 0.2
- Maximum Cable Cross section [mm²]
- 0.35
Loading...

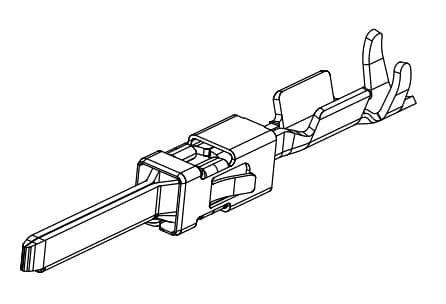

320250A86 - AFS 1.5 TERMINAL
Part Number: 320250A86
Click to see 3D model
Product Specification
Lear's AFS Terminal Series covers the range of 1.5 mm; 2.8 mm; 4.8 - 6.3 mm blades. lts high performance copper alloy body provides an excellent electrical performance, while the stainless steel spring guarantees superior contact reliability. lts compact design, low mating efforts and good terminal retention allow high density connectors.
Part Number: 320250A86, compatible with: 15396711, 963898-1.
