TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
3202599P1
Legacy Part Number
26589201702
Product Family
AFS

Other properties

Core Material
CuSn
Plating Material
Au
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Tab
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35

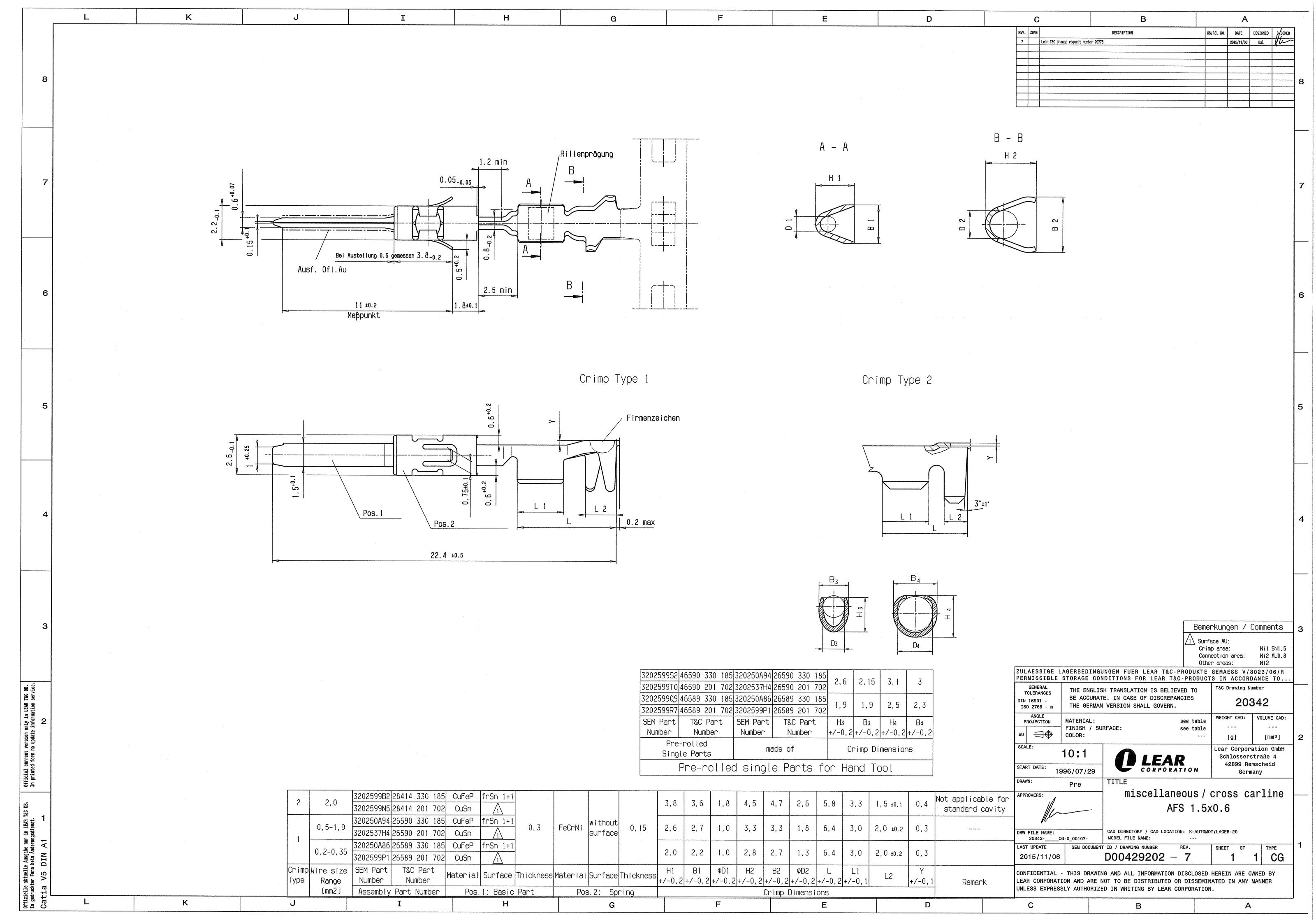

2D Drawing

2D Drawing 3202599P1

DOWNLOAD

3D PDF

3D PDF 3202599P1

DOWNLOAD

3D Cad

3D Cad 3202599P1

DOWNLOAD
AFS Tab Unsealed Crimp Terminal, Au, 0.5-1mm²
AFS Tab Unsealed Crimp Terminal, Au, 0.5-1mm²
3202537H4
Product Category:
TERMINALS
Legacy Part Number:
26590201702
Terminal Size [mm]
–
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
AFS 1.5 Tab Unsealed Crimp Terminal, Sn, 2mm²
AFS 1.5 Tab Unsealed Crimp Terminal, Sn, 2mm²
3202599B2
Product Category:
TERMINALS
Legacy Part Number:
28414330185
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
2
Maximum Cable Cross section [mm²]
2
AFS 1.5 Tab Sealed Crimp Terminal, Au, 0.2-0.35mm²
AFS 1.5 Tab Sealed Crimp Terminal, Au, 0.2-0.35mm²
3202636W8
Product Category:
TERMINALS
Legacy Part Number:
26594201702
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFS 1.5 Tab Sealed Crimp Terminal, Sn, 0.2-0.35mm²
AFS 1.5 Tab Sealed Crimp Terminal, Sn, 0.2-0.35mm²
3202636X6
Product Category:
TERMINALS
Legacy Part Number:
26594330185
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.2
Maximum Cable Cross section [mm²]
0.35
AFS 1.5 Tab Sealed Crimp Terminal, Au, 0.5-1mm²
AFS 1.5 Tab Sealed Crimp Terminal, Au, 0.5-1mm²
3202636Y4
Product Category:
TERMINALS
Legacy Part Number:
26595201702
Terminal Size [mm]
1.5
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1

Loading...

3202599P1 - AFS Tab Unsealed Crimp Terminal, Au, 0.2-0.35mm²

Part Number: 3202599P1

Click to see 3D model

AFS Tab Unsealed Crimp Terminal, Au, 0.2-0.35mm²

Product Specification

Previously cataloged under part number 26589201702.

Lear's AFS Terminal Series covers the range of 1.5 mm; 2.8 mm; 4.8 - 6.3 mm blades. lts high performance copper alloy body provides an excellent electrical performance, while the stainless steel spring guarantees superior contact reliability. lts compact design, low mating efforts and good terminal retention allow high density connectors.

Part Number: 3202599P1.

Lear Connection Systems is offering other variants of this product:

CONTACT US
