TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
E09992700
Legacy Part Number
26705201186
Product Family
AFK

Other properties

Terminal Size [mm]
2.8
Core Material
CuSn
Plating Material
Sn
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
1.5
Maximum Cable Cross section [mm²]
2.5

DOWNLOADS

2D Drawing

2D Drawing E09992700

DOWNLOAD

3D PDF

3D PDF E09992700

DOWNLOAD

3D Cad

3D Cad E09992700

DOWNLOAD

Loading...

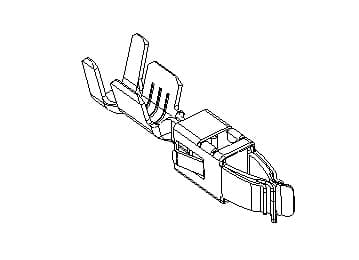

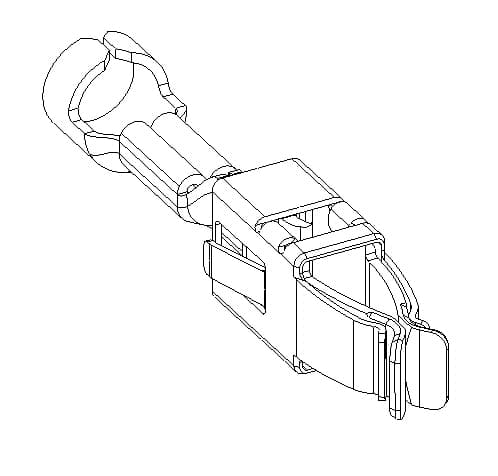

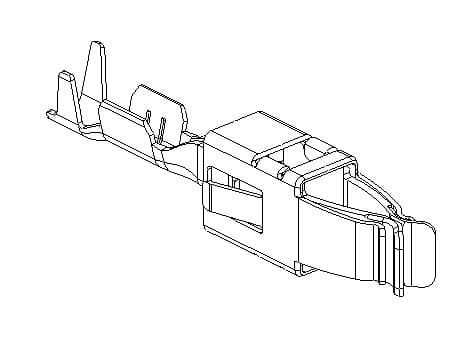

AFK 2.8 TERMINAL

Part Number: E09992700

Click to see 3D model

AFK 2.8 TERMINAL

Product Specification

Lear's AFK Terminal Series covers the range of 1.5 mm; 2.8 mm; 4.8 - 6.3 mm blades. Its high performance copper alloy body provides an excellent electrical performance, while the stainless steel spring guarantees superior contact reliability. Two locking latches ensure secure locking in cavity.

lts compact design, low mating efforts and good terminal retention is ideal for high density connectors.
