TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 320272008
- Legacy Part Number
- 26260331178
- Product Family
- AFS
Other properties
- Terminal Size [mm]
- 4.8
- Core Material
- CuFe
- Plating Material
- Sn
- Sealable
- Sealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Tab
- Minimum Cable Cross section [mm²]
- 1.5
- Maximum Cable Cross section [mm²]
- 2.5
DOWNLOADS
Loading...

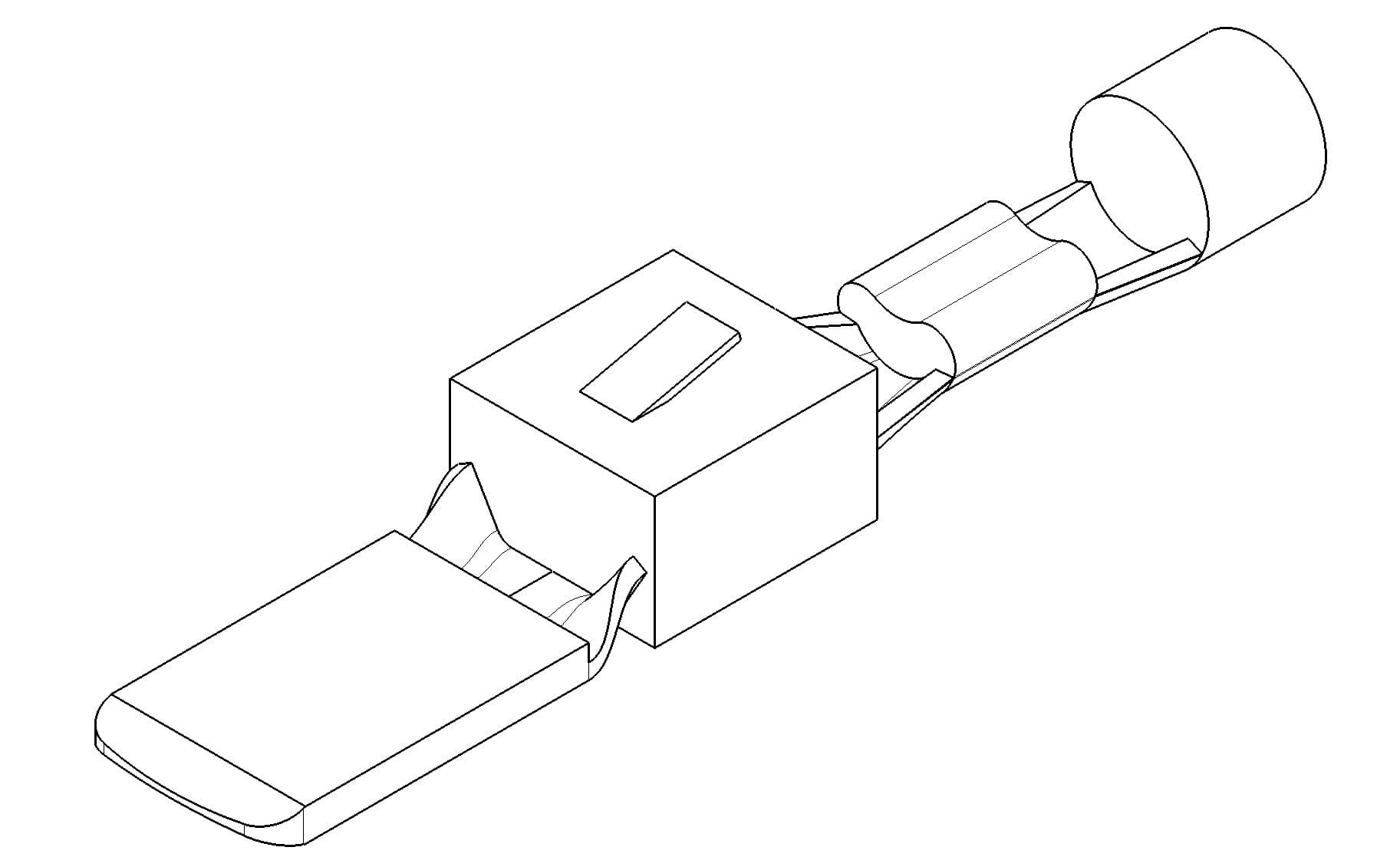

TAB 4.8 PLUS TERMINAL
Part Number: 320272008
Click to see 3D model
Product Specification
Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
