TECHNICAL INFORMATION
Identification
- Product Category
- TERMINALS
- Part Number
- 3202606K3
- Legacy Part Number
- 12698123011
Other properties
- Terminal Size [mm]
- 6.3
- Core Material
- CuZn
- Plating Material
- Sn
- Sealable
- Unsealed
- Connection Technology
- Standard Crimp
- Terminal Type
- Tab
- Minimum Cable Cross section [mm²]
- 4
- Maximum Cable Cross section [mm²]
- 6
- Min Temp (C)
- -40
- Max Temp (C)
- +125
DOWNLOADS
Loading...
3202606K3 - TAB 6.3 TERMINAL
Part Number: 3202606K3

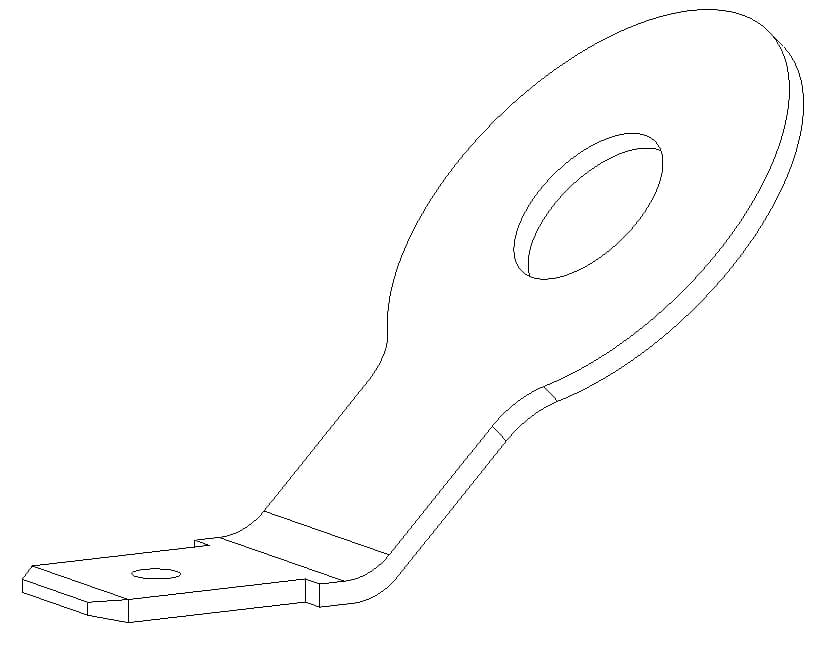

Click to see 3D model
Product Specification
Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
Part Number: 3202606K3.
