TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
32025Y1RL
Legacy Part Number
5628213011

Other properties

Terminal Size [mm]
2.8
Core Material
CuSn
Plating Material
Sn
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Tab
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1

DOWNLOADS

2D Drawing

2D Drawing 32025Y1RL

DOWNLOAD

3D PDF

3D PDF 32025Y1RL

DOWNLOAD

3D Cad

3D Cad 32025Y1RL

DOWNLOAD

Loading...

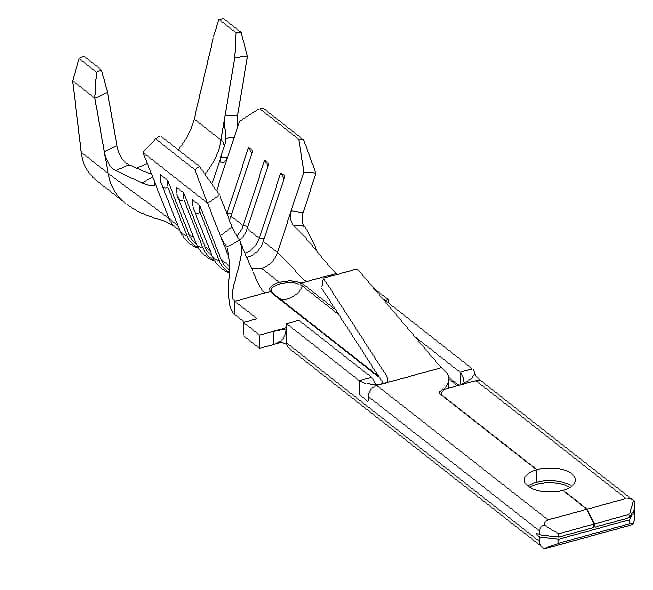

TAB 2.8 TERMINAL

Part Number: 32025Y1RL

Click to see 3D model

TAB 2.8 TERMINAL

Product Specification

Lear’s Connection Systems portfolio offers high-performance, ultra-compact, light-weight, cost-effective systems engineered for optimal performance anywhere in the vehicle for industrial standard interfaces.
