TECHNICAL INFORMATION

Identification

Product Category
TERMINALS
Part Number
3202596Q2
Legacy Part Number
46649330186
Product Family
AFK

Other properties

Terminal Size [mm]
4.8, 6.3
Core Material
Cu
Plating Material
Sn
Sealable
Unsealed
Connection Technology
Standard Crimp
Terminal Type
Receptacle
Minimum Cable Cross section [mm²]
0.5
Maximum Cable Cross section [mm²]
1
Remarks
Suits both 4.8mm and 6.3mm blades

DOWNLOADS

2D Drawing

2D Drawing 3202596Q2

DOWNLOAD

3D PDF

3D PDF 3202596Q2

DOWNLOAD

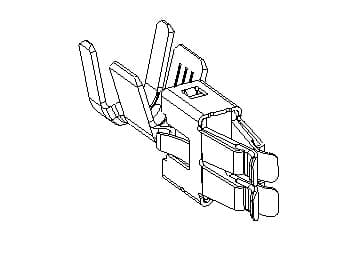

AFK 4.8 (6.3) TERMINAL

Part Number: 3202596Q2

AFK 4.8 (6.3) TERMINAL

Product Specification

Lear's AFK Terminal Series covers the range of 1.5 mm; 2.8 mm; 4.8 - 6.3 mm blades. Its high performance copper alloy body provides an excellent electrical performance, while the stainless steel spring guarantees superior contact reliability. Two locking latches ensure secure locking in cavity.

lts compact design, low mating efforts and good terminal retention is ideal for high density connectors.
