TECHNICAL INFORMATION
Identification
- Product Category
- SEALS
- Part Number
- E05919000
- Legacy Part Number
- 19593000001
Other properties
- Seal type
- Wire Seal Cap
- Nominal cavity hole diameter [mm]
- 10.9
- Cable diam min [mm]
- 9.7
- Cable diam max [mm]
- 10.7
Loading...

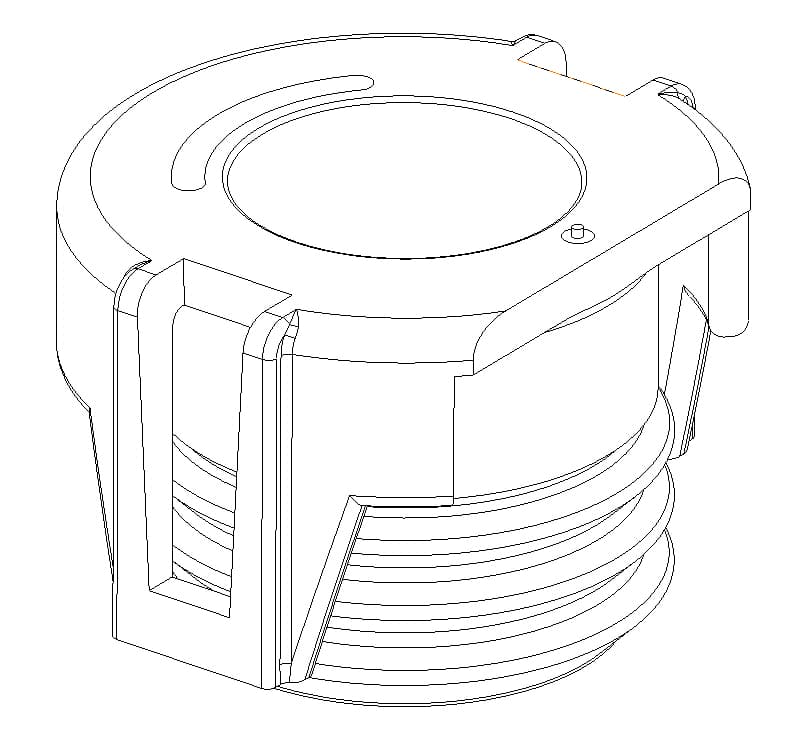

E05919000 - Wire Seal Cap
Part Number: E05919000
Click to see 3D model
Product Specification
Previously cataloged under part number 19593000001.
A wire sealing cap that provides environmental protection at the cable entry point of an occupied connector cavity. Its two-component (2K) design combines effective sealing performance with enhanced cable support. The integrated rigid plastic element reinforces strain relief and cable retention, particularly for larger wire cross-sections.
Constructed from VMQ and PBT-GF10, it accepts cable insulation diameters from 9.7 mm to 10.7 mm.
Part Number: E05919000.
