TECHNICAL INFORMATION
Identification
- Product Category
- SEALS
- Part Number
- 32195X0K7
- Legacy Part Number
- 17724000000
Other properties
- Seal type
- Wire Seal Cap
- Nominal cavity hole diameter [mm]
- 8.3
- Cable diam min [mm]
- 7.6
- Cable diam max [mm]
- 8.3
Loading...

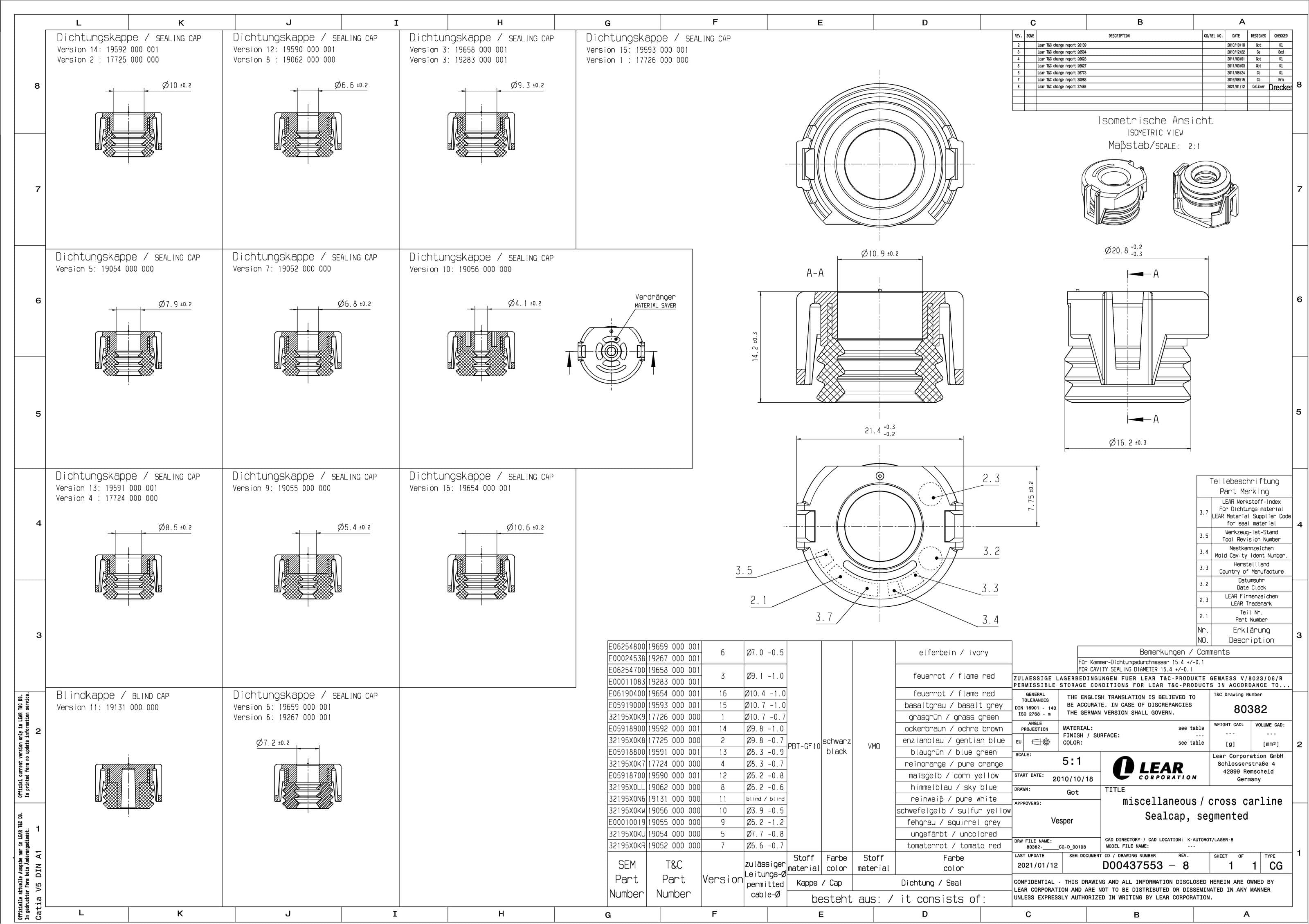

32195X0K7 - Wire Seal Cap, Cavity Hole Diameter 8.3mm
Part Number: 32195X0K7
Click to see 3D model
Product Specification
Previously cataloged under part number 17724000000.
A wire sealing cap that provides environmental protection at the cable entry point of an occupied connector cavity. Its two-component (2K) design combines effective sealing performance with enhanced cable support, with the integrated rigid plastic element reinforcing strain relief and cable retention — particularly suited to larger wire cross-sections. The seal body is constructed from VMQ, with the rigid structural element formed from PBT-GF13.
Designed to fit a nominal cavity hole diameter of 8.3 mm, it accepts cable insulation diameters from 7.6 mm to 8.3 mm.
Part Number: 32195X0K7.
This product requires other components for a fully functional assembly configuration:
- 4way AFK/MAK 2.8/12 Receptacle Sealed Black Connector with CPA, Code A (E01588300)
- 1way MAK 12 Receptacle Sealed Black Connector, Code A (E02197700)
- 2way MAK 12 Receptacle Sealed Black Connector with CPA, Code A (E11426600)
- 2way MAK 12 Receptacle Sealed Connector with CPA (E11426800)
- 2way MAK 12 Receptacle Sealed Connector with CPA (E11426700)
- 2way MAK 12 Receptacle Sealed Black Connector, Code A (E05940900)
